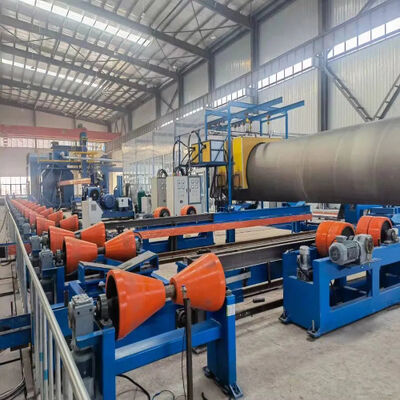

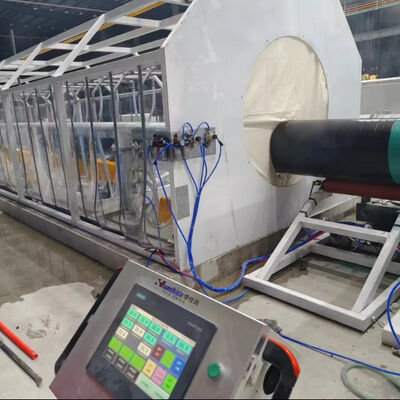

High-Efficiency Dual FBE Coating & Automatic Shot Blasting 3LPE Coating Pipe Production Line with Induction Heating

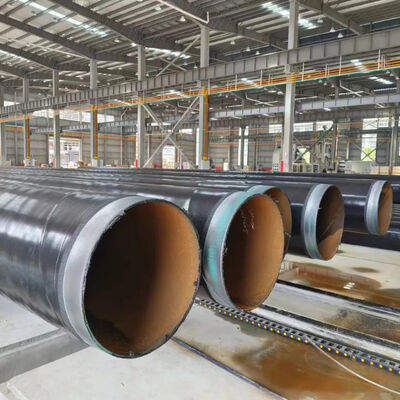

It is an efficient method for applying internal and external epoxy powder coating to steel pipe for anti-corrosion. The anti-corrosion steel pipe has many advantages, such as strong corrosion resistance, which can resist the erosion of various chemical media; The coating surface is smooth and the friction resistance is small. This steel pipe of anti corrosion is widely used in petroleum, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.

Application:

Steel pipe internal&external FBE powder coating process, with the steel pipe internal wall blasting and external wall blasting , FBE epoxy powder coating applied to the water supply for civil use.

Internal & External FBE Powder  coating Structure Diagram
Epoxy powder is a thermosetting non-toxic coating. After curing, it forms a high-molecular-weight cross-linked coating with excellent chemical corrosion resistance and superior mechanical properties. The function of epoxy powder bottom layer is to form continuous coating, providing excellent adhension by agglutinate and solidifying the steel tube surface with good  chemical resistance and cathodic disbanding resistance. The function of polymer adhesive is to agglutinate the epoxy powder before gelation, and to agglutinate the polyethylene top layer, which unites all three layers together.

Main equipment:

 Note: Equipment configuration and processes are customized according to customer requirements, with no fixed standard


   Related Products: External 3LPE & Internal FBE Powder Coating Line

Core Advantages of the Equipment

→Small dimension,suitable for various venues, enabling flexible deployment
→High degree of automation, can be operated by one person, saving labor costs
→Long service life, low maintenance cost
→Equipped with a high-efficiency extruder, ensuring sufficient output and stable performance
→Uniform wall thickness of pipes, smooth surface, good forming effect and controllable quality
→High raw material utilization rate
→One-time forming process, no need for additional trimming

Service and Guarantee

→Provide a one-stop complete production solution includes design, installation, commissioning and training
→With a total of 389 sets of practical production line experience worldwide, we boast mature technology and strong implementability, and are ready to share
→Set up a professional technical team with professional senior engineers to provide full-process technical support
→Our company has a high-end expert workstation for plastic machinery equipment in China

Question & Answer:

Question 1: What pipe diameter range can your product line handle?
Answer: This product line can be customized according to customer requirements. Following are main diameter we did:
→48-219mm
→219-1220mm
→325-1600mm
→508-2400mm
→1000-3200mm

Question 2: What is your anti-corrosion coating standard?
Answer: It can meet the requirements of SY/T 0413-2002, GB/T 23257-2009, German standards DIN 30670 and DIN 30678, as well as the coating specifications issued by NACE International and DNV.
The finished coated pipes fully comply with SY/T 0315-2005, CNPC 38-2002 Technical Specification for Fusion-Bonded Epoxy Powder Coating of Buried Steel Pipelines, and relevant standards of Canada and NACE International.

Question 3: What is our production and delivery time
Answer: Approximately 2 months after the contract is signed..

Question 4: Production output:
Answer: The production output varies with pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).

Question 5: Coating thickness:
Answer: 80~800um

Question 6: Which countries do you export 3PE production lines to?
Answer: We have supplied nearly 50 sets of 3PE anti-corrosion production lines both in china and abroad, exporting to countries including Russia, Iran, UAE, India, Belarus, Kazakhstan and so forth.

Question 7: After-sales service
Answer:  All equipment will be tested and commissioned before delivery to ensure perfect performance and quality. The warranty period is 12 months for mechanical parts and 6 months for electrical parts from the date of equipment collection.The Seller provides free technical support, including operation training and guidance for the Buyer's personnel.

Up to now, we have successfully entered overseas markets including Russia, Iran, UAE, India, Belarus, Kazakhstan and so forth. We have supplied nearly 50 production lines to customers both in china and abroad.

Huashida Factory located in Qingdao High & New Technology Industrial Area, covers an area of about 4000 square meters. We have been granted more than 10 patents and numerous domestic and international industry certifications. With strong production capacity, we provide reliable products in various specifications.With excellent R&D and design capabilities, we can meet customers' special requirements. With comprehensive after-sales service, we offer timely and convenient technical support to our users.
