3LPE Coating Pipe Production Line with Internal Shot Blasting, High Voltage Electrostatic Spray Gun & Medium-Frequency Heating System

External 3PE anti corrosive internal epoxy coating is an efficient anti-corrosive method for steel pipes.

Epoxy powder mainly plays an anti-corrosion role, adhesives enhance the bonding between the layers, and polyethylene provides good mechanical protection and environmental resistance. Internal epoxy coating spraying has strong anti-corrosion adhesion and good chemical corrosion resistance, which can effectively prevent the inside of the steel pipe from being corroded by the conveying medium (such as oil, gas, water, etc.). This anti-corrosion method is widely used in the fields of oil and natural gas pipelines, water supply and drainage pipelines, etc., and can greatly extend the service life of steel pipes.

Production line parameters:

(1) Steel pipe coverage range: 114mm-4200mm
(2) Processing capacity: ≤250m²/h
(3) Cleaning level: Sa2.5
(4) Materials used: epoxy powder, adhesive, polyethylene, epoxy coating (single component, two-component)

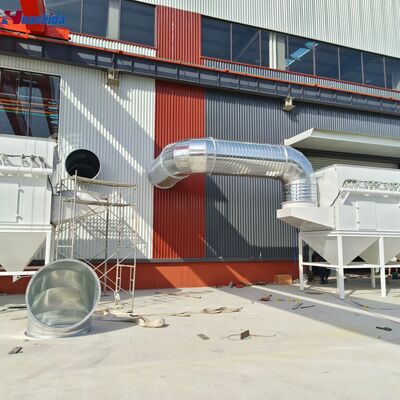

(5) Main equipment: steel pipe external rust removal equipment, steel pipe internal rust removal equipment, medium frequency heating equipment, epoxy powder spraying equipment, AD adhesive extrusion equipment, PE polyethylene extrusion equipment, cooling equipment, PE groove equipment, high-pressure airless spraying machine, curing furnace heating and drying equipment, spray marking equipment, catalytic combustion environmental protection equipment, etc.


3LPE coating line Features:
1. Microcomputer-controlled automatic adjustment of the coordination of various parts of the production line.

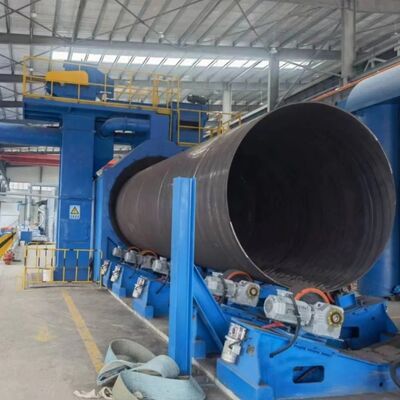

2. High-speed shot blasting equipment for internal and external wall rust removal.
3. High-performance electrostatic spraying equipment with good impact resistance.

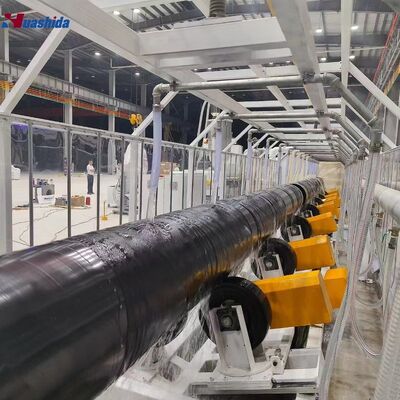

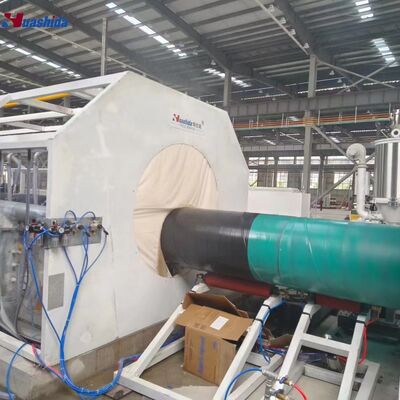

4. High-quality PE sheet extrusion equipment with good anti-corrosion effect.
5. Energy-saving internal wall coating equipment.
