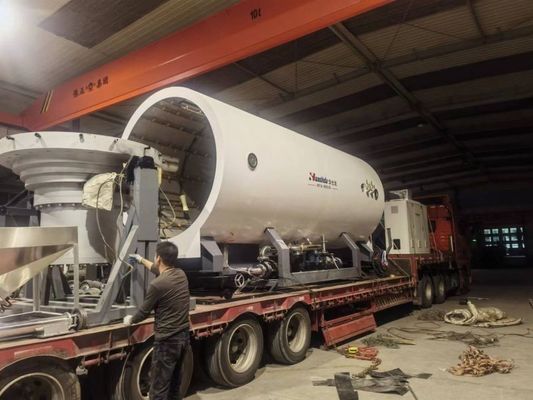

PE Series Vacuum Calibration Line for Pre-Insulated HDPE Casing Pipe

PE Series Vacuum Calibration Line for Pre-Insulated HDPE Casing Pipe

Product Description

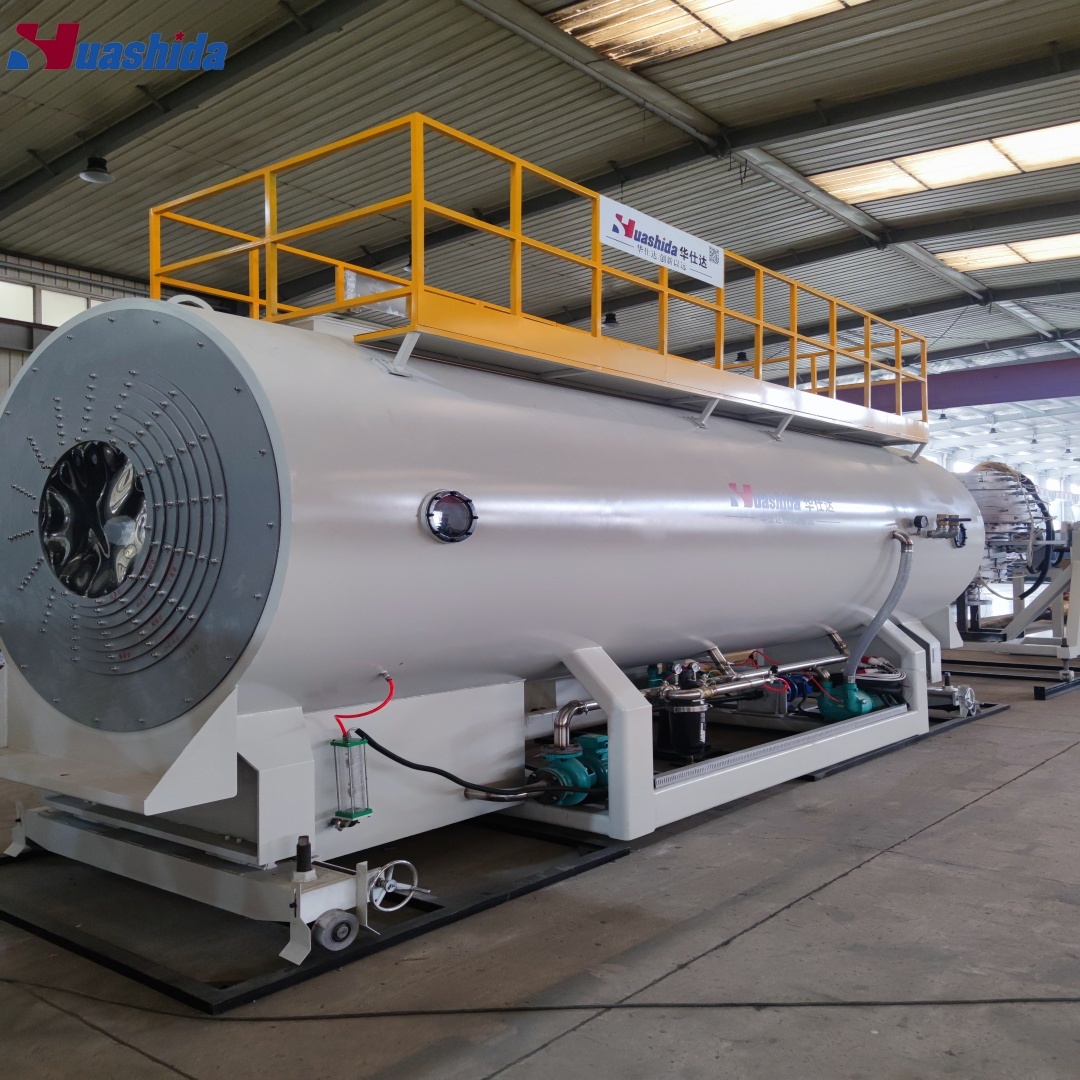

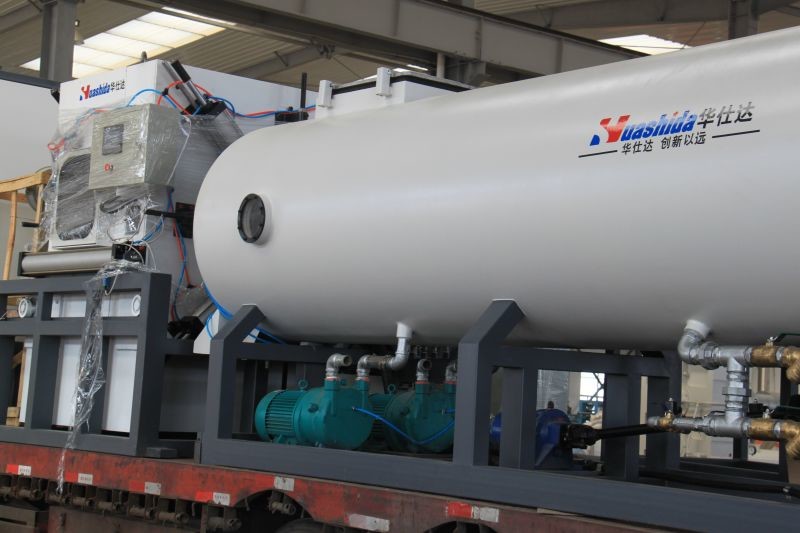

PE-Vacuum Calibration Insulation Pipe Production Line
This advanced machinery is widely recognized for producing pre-insulated pipes used in energy-saving trenchless pipeline installations. These pipes feature rigid polyurethane foam (PUF) insulation within a protective outer casing, ideal for heating networks with a working pressure of 1.6 MPa and water temperatures up to 403°K (130°C), with short-term tolerance up to 423°K (150°C).

The "pipe-in-pipe" structure consists of:
Carrier Pipe: Steel or galvanized steel.
Insulation Layer: Polyurethane foam (PUF).
Outer Casing: High-density polyethylene (HDPE) for underground installations or galvanized steel for above-ground applications.

Production line parameter:

(1)Steel pipe range:60mm-2000mm

(2)Used material:ISO(isocyanate), POLY(premixed polyether polyols),PE


Company Profile

​

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.

Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

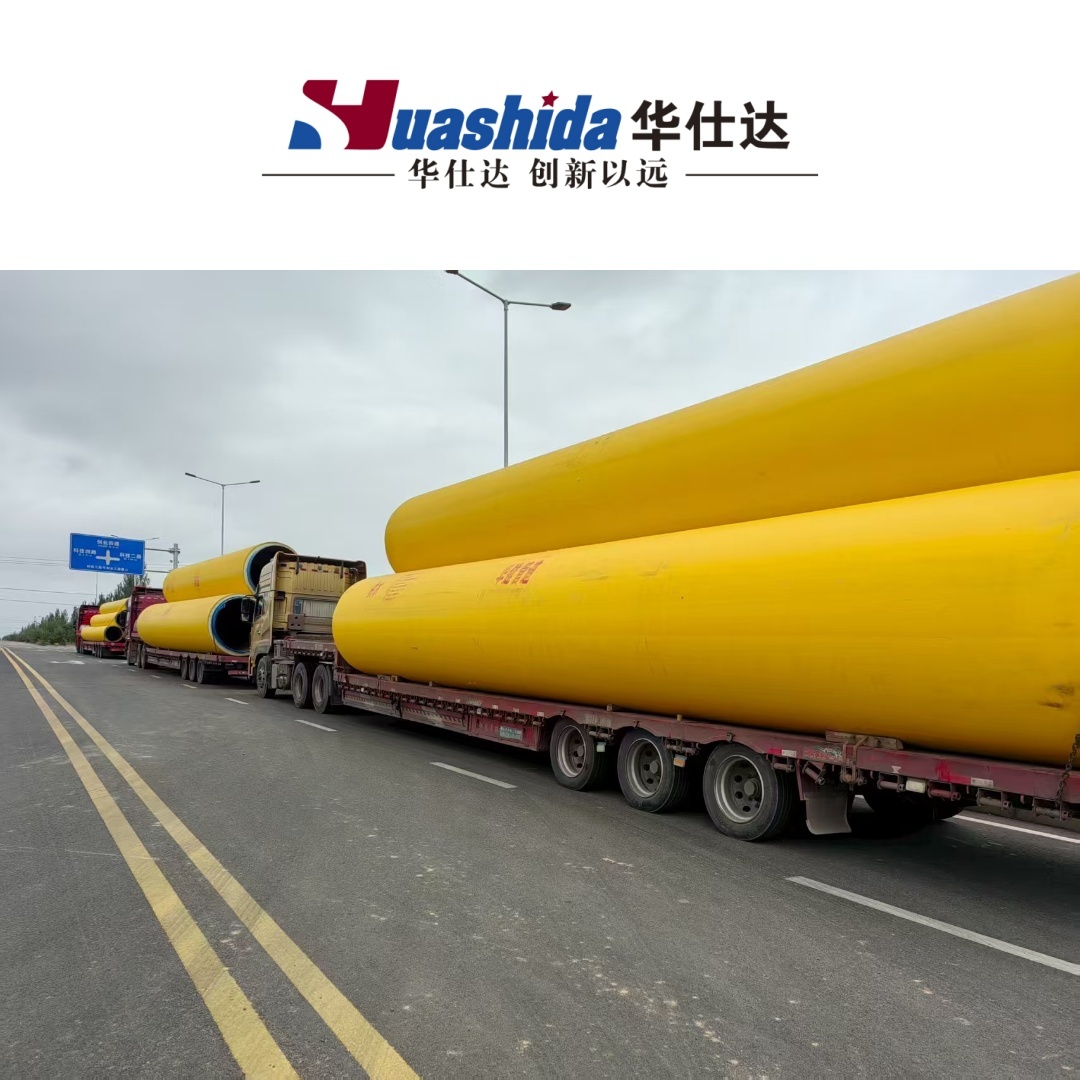

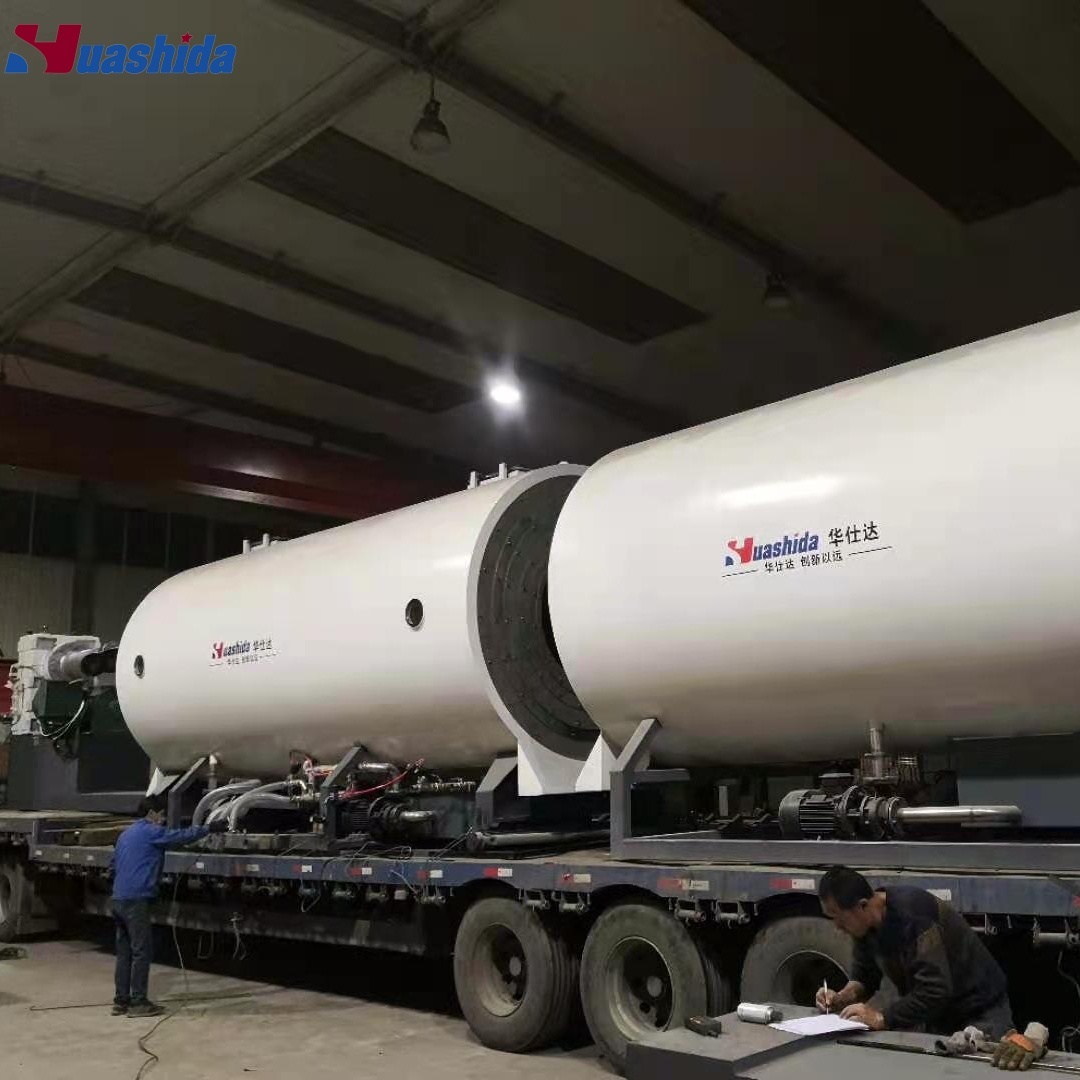

Delivery
