Home /Products/3LPE Coating Pipe Production Line/Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range

Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range

1
MOQ
US 18000 UNIT
Price
Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range
Features Gallery Product Description Request A Quote
Features
Specifications
Coating Thickness: 1.8-2.7mm
Control System: PLC Control
Coating Type: 3LPE (Three Layer Polyethylene)
Pipe Diameter Range: Φ219-Φ1420mm
Total Power: 900kW
Operating Mode: Automatic/Manual
Highlight:

1.8-2.7mm Coating Thickness 3LPE Coating Pipe Production Line

,

Φ219-Φ1420mm Pipe Diameter Range 3PE Anti-Corrosion Coating Production Line

,

900kW Total Power Steel Pipe Coating Line
Basic Infomation
Place of Origin: Qingdao，Shandong，China
Brand Name: Huashida
Certification: ISO9001:2008
Model Number: 48-4200mm
Payment & Shipping Terms
Packaging Details: according to customer's requirement
Delivery Time: 60 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 sets per year
Product Description

Complete Automation Three Layers Anti-Corrosion Coating Production Line


Basic Info.

Model NO.
HSD
Type
Coating Production Line
Coating
Powder Coating
Substrate
Steel
Certification
CE, ISO, RoHS
Condition
New
Pipe Dia.
48-3000mm
Blasting
>2.5A
Fbe Thickness
200-800um
PE Thickness
2-3mm
Diameter Range
50-426mm
Application
3PE 2PE Fbe Anticorrosion Coating
Transport Package
Plastic Film and Wooden Pallet
Specification
EN253, EN448, EN728, ISO1133, ISO8501-1
Trademark
HSD
Origin
Qingdao China
HS Code
8477209000
Production Capacity
30 Units/Year

Packaging & Delivery

Package Size
1000.00cm * 220.00cm * 180.00cm
Package Gross Weight
3000.000kg

Product Description

Complete Automation Three Layers Anti-Corrosion Coating Production Line

Huashida 3PE Anti-Corrosion Coating Production Line - A Reliable Solution for High-Quality Pipeline Protection

The 3PE Anti-Corrosion Coating Production Line (Model: HSD1000-2400) developed and manufactured by Qingdao Huashida Machinery Co., Ltd. is designed for external coating of longitudinally welded and spiral steel pipes used in medium and high-pressure transmission pipelines.

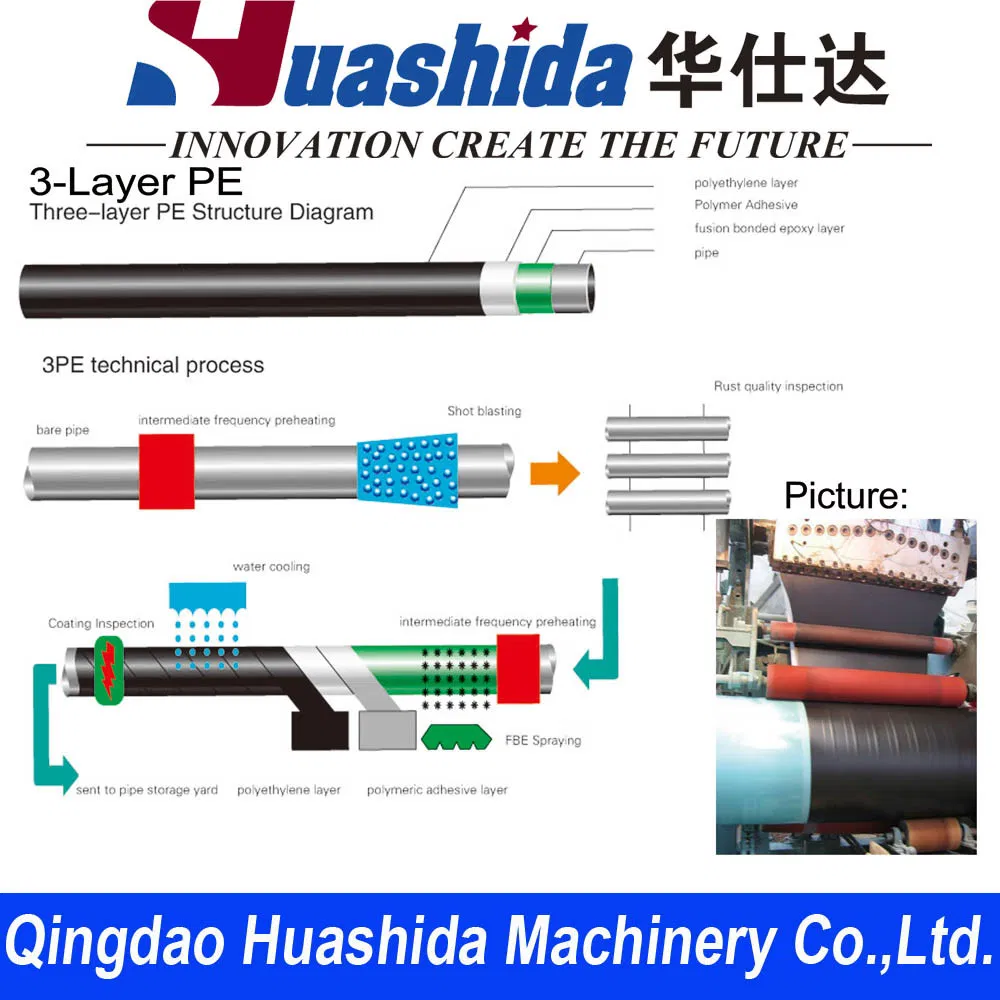

The production line adopts a three-layer composite protective structure:
First layer: Fusion Bonded Epoxy (FBE ≥ 100 µm)
Second layer: Adhesive (AD 170-250 µm)
Third layer: Polyethylene (PE 2.5-3.7 mm)
The complete system includes external shot blasting and derusting line, epoxy spraying system, intermediate frequency heating unit, hot-melt adhesive and polyethylene extrusion systems, cooling and conveying platforms, and a fully automated control system.
Each process is strictly monitored through the ISO9001-certified quality management system, ensuring reliable coating adhesion, outstanding corrosion resistance, and long service life of the pipeline.
Huashida's 3PE coating lines have been widely applied in oil and gas transmission, water supply, and district heating projects, and exported to the Middle East, Russia, Africa, Turkey, and Korea, earning an excellent reputation for stable performance and dependable quality
Product Description


Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 0
Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 1
Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 2



Product Parameters
Specifications
Pipe Diameter Range: Φ159 ~ Φ1220
Coating Thickness: 80 ~ 800µm
Production Output:
Max. 3-8 km/day
Annual processing capacity: 2 million square meters (Φ508mm)
Coating Standards: Meets SY/T0413-2002, GB/T23257-2009, German DIN 30670, American Corrosion Association, and other international standards.

Main Equipment of 3PE anticorrosion processing
Configuration List
No. Name Set
A. Derusting Equipment
1 Pipe-converying Equipment 1
2 Shot Blast Cleaning Machine 1
3 Cyclone Dust Collector 1
4 Pulse dust collector 1
5 Centrifugal exhaust fan 1
6 Rust removal equipment PLC 1
B. Coating equipment
1 Coating transfer equipment 1
2 IF heating device 1
3 Powder spraying device 1
4  Automatic loading dryer 2
5 SJ-65/30 Extruder 1
6 SJ-180/30 Extruder 1
7 Hot melt adhesive extruder die 1
8 PE sheet extruder head mold 1
9 Hot melt adhesive/PE sheet coating device 1
10 Environmental Protection Ventilation equipment 1
11 Cooling Spray equipment 1
C.Platform Equipment
1 Steel pipe platform 1
2 Post-rust removal transition platform 1
3 Product tube storage platform 1
4 Hydraulic Equipment 3
D.Groove Equipment
1 PE Beveling Machine 2
2 Hydraulic Lifting and Turning Machinery 1
3 Hydraulic Equipment 1
4 PLC 1
E.Compressed air Equipment
1 Screw Air Compressor 1
2 Cold dry machine 1
3 Precision filters 3
4 Gas tanks 1

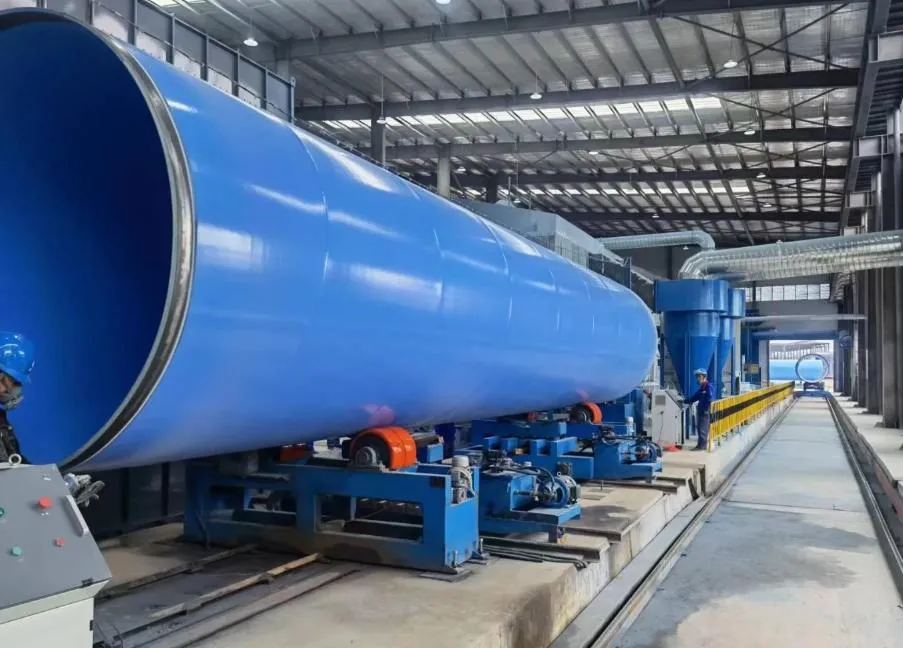

Detailed Photos
Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 3
FAQ
Frequently Asked Questions

What is the pipe diameter range the equipment can produce?

-48-219mm, 219-1220mm, 800-1600mm, 1000-2400mm

What is the sandblasting grade?

-SA2.5

What is the anti-corrosion coating standard?

-Meets multiple international standards, including SY/T0413-2002 and DIN 30670.

What is the delivery time?

-2-3 months after deposit.

What is the production output?

-Max. 3-8 km/day, annual capacity of 2 million square meters (Φ508mm).

What is the coating thickness?

-80 ~ 800µm.

Where has the 3PE equipment been sold?

-Countries including Russia, Iran, UAE, India, Belarus, Kazakhstan, etc.

What after-sales services are offered?

-Warranty: 12 months for mechanical parts, 6 months for electrical parts.
Support: Technical services, training, and guidance for operators.

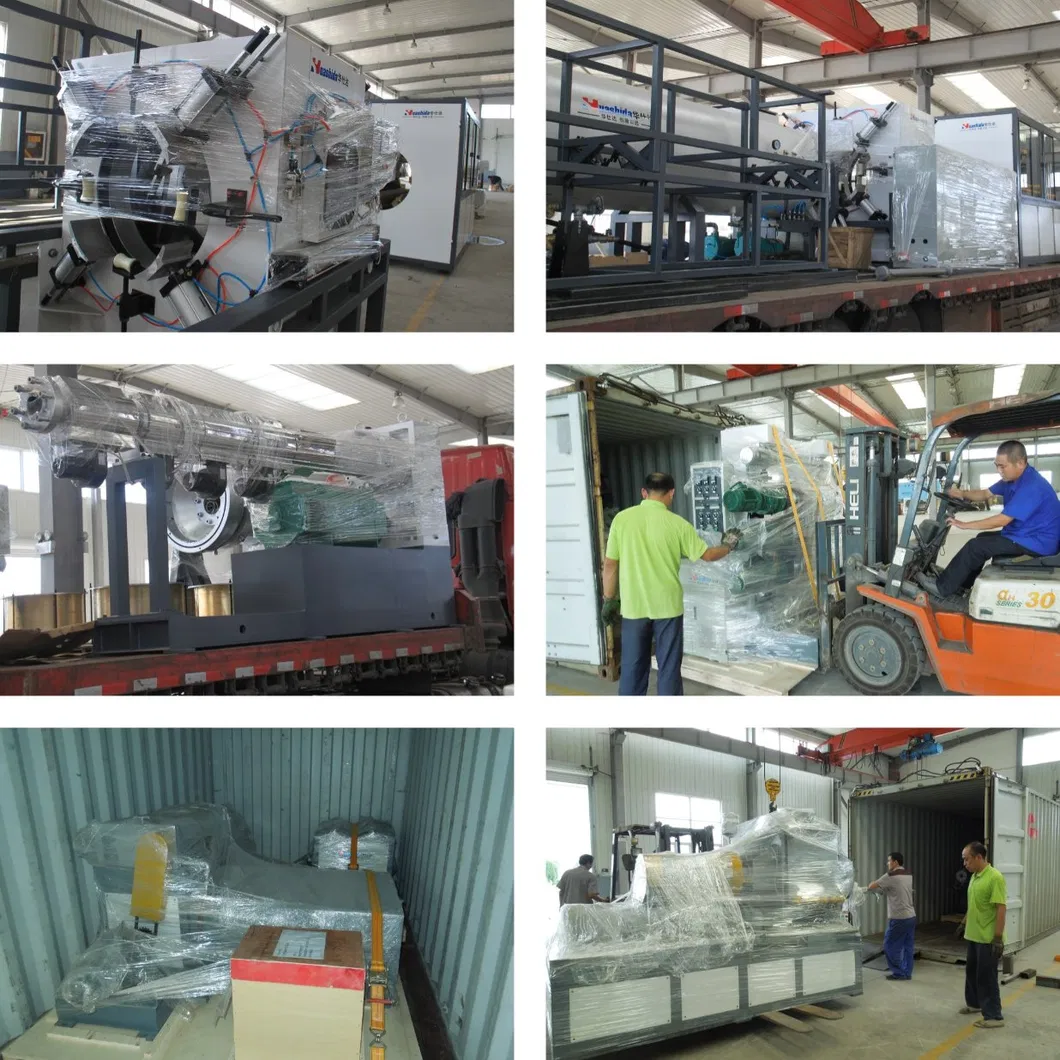

Packaging & Shipping

Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 4
Company Profile

Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 5Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 6

Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 7
Exhibition

Complete Automation 3LPE Coating Pipe Production Line with 1.8-2.7mm Coating Thickness and Φ219-Φ1420mm Pipe Diameter Range 8
