Name: HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: Haul-off Machine
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Screw: Single-Screw

Product Type: HDPE Pipe

Crawler Lengh: 2.5m Effective Length

Clamping Type: Hydraulic Clamps

Crawler Feet: 2-12 Feet

Application: Hauling Off Pipe From The Extruder

Highlight:

HDPE pipe haul-off machine

hydraulic traction pipe machine

multi-claw HDPE pipe equipment

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008

Model Number: Haul-off Machine

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 60DAYS

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 50 Units/Month

Gallery

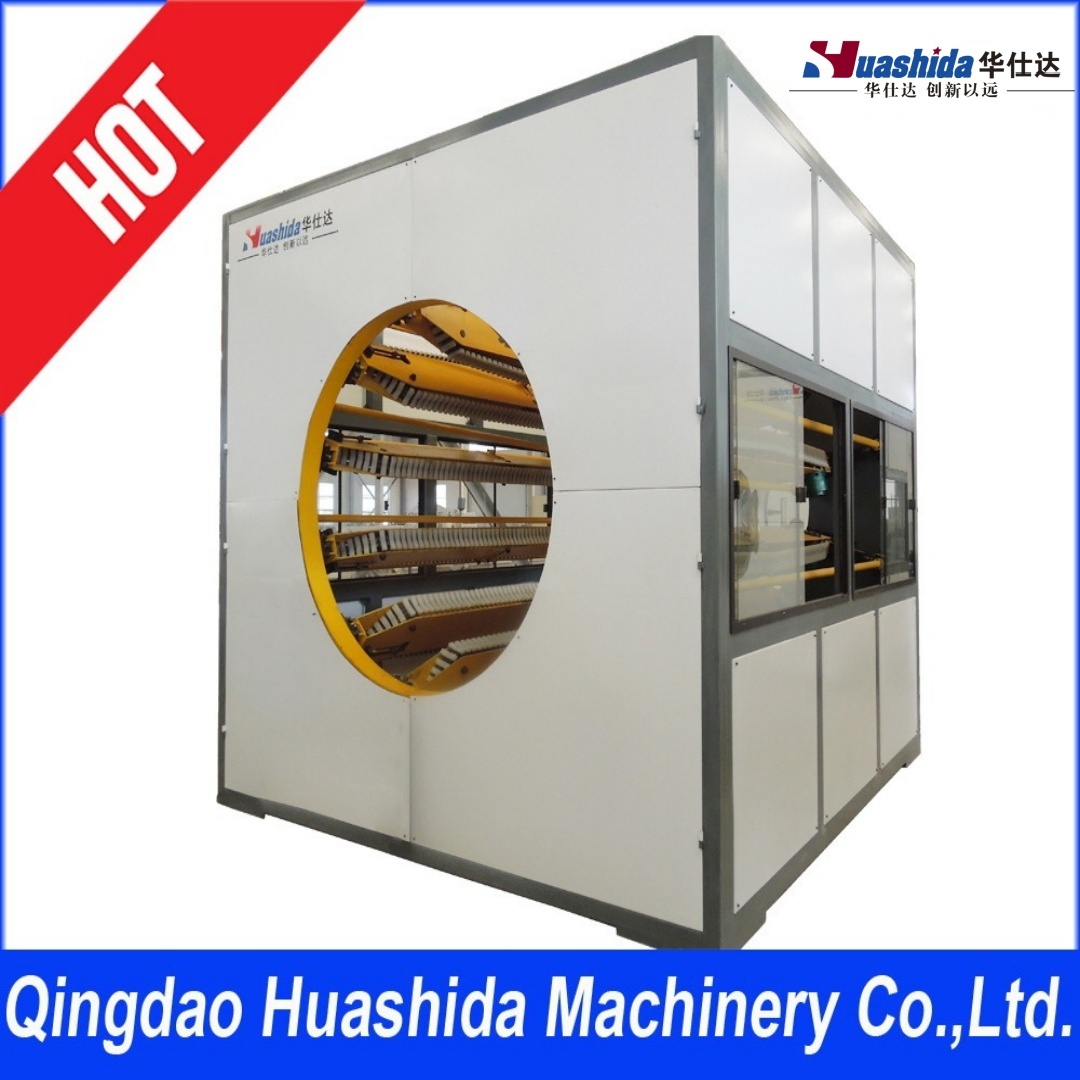

HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design

Product Description

Automatic Traction Haul-off Machine for HDPE Pipe Production line

Core design: It adopts a long arm and multi-claw combination structure, and this design fully takes into account the changing characteristics of the wall thickness of plastic pipes.

Double advantages: The combination of long arms and multi-claws can enhance the clamping friction of the pipes and make the traction force more accurately converge to form a better combined force on the center line.

Actual results: It can not only easily pull thin-walled pipes to ensure their smooth molding and production; it can also enable the insulation pipe production line to achieve more efficient and stable operation on the basis of meeting customer requirements to the greatest extent.

HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design 1

1. Strong hauling force, especially suitable for hauling high-density pipe

2. The hauling force is well distributed according to the pipe.

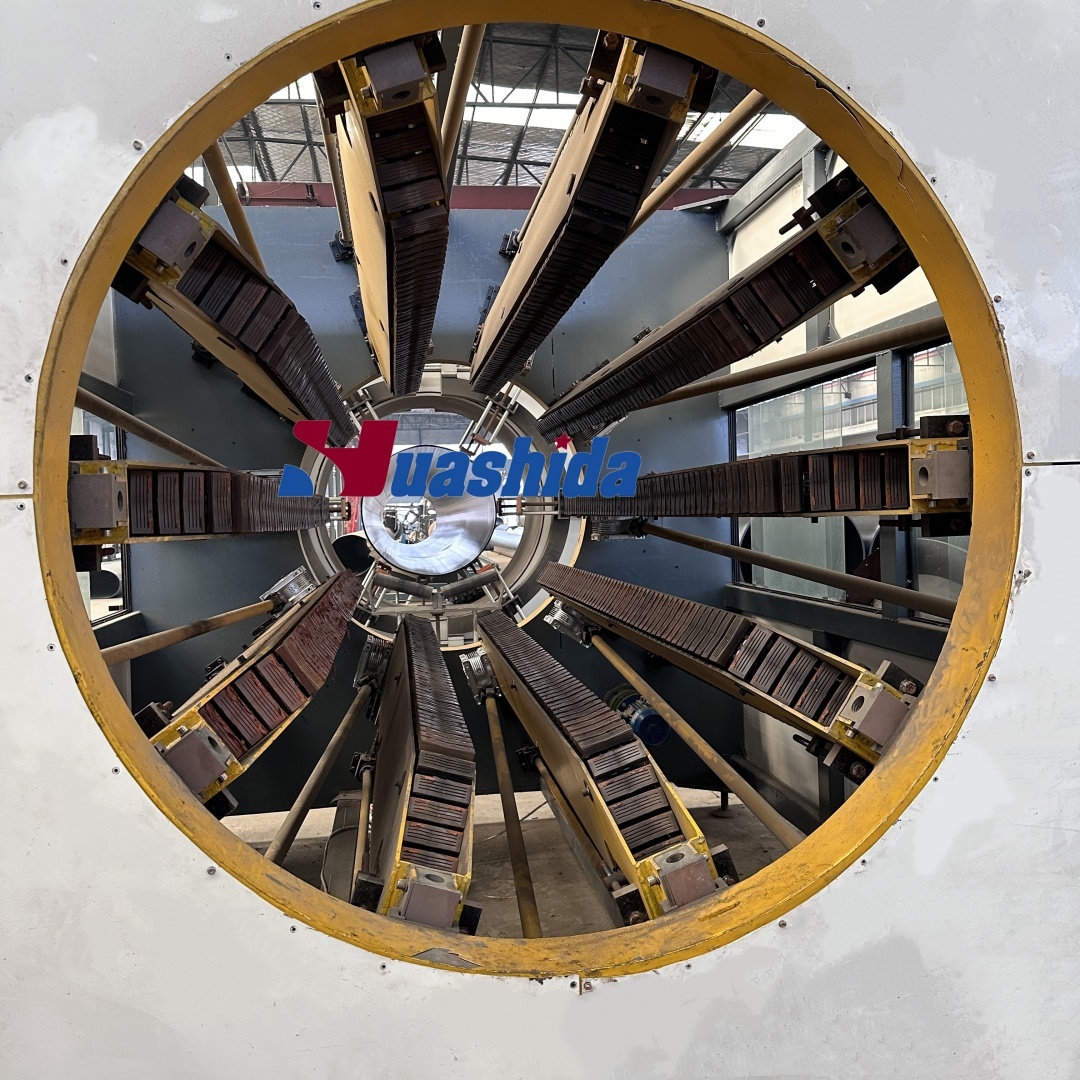

3. 2, 3, 4or 6 .10.12 claws are applied to hold and haul pipes eventually.

4. SCR step-less speed regulation, frequency control.

5. It is convenient and widely used, ABB inverter, Siemens PLC program controller controls all mechanical drives

HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design 2

1. Series plastic pipes, material drawer adopts double caterpillar drawing method, thyristor stepless speed regulation, frequency conversion. Main and auxiliary, plastic extruder for plastic pipe material, soft pipe and to other plastic shaped materials.

2. Its of wide application range, convenient use. The pipe haul off machine is mainly used to continuously and automatically pull various plastic pipes, soft Pipe and other profile after it is extruded, cooled, dried, printed by the tractor.

3. Use caterpillar rubber Block /belt metal fixture block to fit with different pipes of different materials, diameters and wall Thickness.

Model	Range of traction tubing(mm)	Number of traction belts(mm)	Power of drive motor(kw)	Peak traction(N)	Max pulling length(mm)	Max.speed (m/min)
HSD32	6-32	2	2×0.75	3000	600	30
HSD75	16-75	2	2×1.1	10000	1000	15
HSD160	20-160	2	2×1.5	15000	1500	10
HSD250	50-250	3	4	20000	1500	3.5
HSD315	75-315	4	5.5	25000	1500	3
HSD450A	110-450	4	5.5	25000	1600	2
HSD450B	110-450	4	5.5	30000	2200	1.2
HSD630A	200-630	6	7.5	35000	1600	1.4
HSD630B	200-630	6	7.5	40000	2500	0.9
HSD800	315-800	8	11	60000	2500	0.7
HSD63	2-16-63	2×2	2×2.2	2×5000	1000	2-12

Pre-Insulated Pipe Casing HDPE Pipe Extrusion Line

The line is an integration design composed by extrusion, vacuum calibrating, cooling, pulling, cutting, stacker. Great performance in automatic operation, extrusion capacity, steady and service life etc. Especially compared with the line use internal pressure method, vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smoothness.
HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design 3

HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design 3

HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design 4

HDPE Pipe Hydraulic Traction Haul-off Machine with Multi-Claw Design 5

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
