PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width

1
MOQ
US$40,000.00 - 260,000.00
Price
PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: PVC /PE/PP / ABS / PP /PS Sheet
Board Layers: Single & Multilayer Sheet
Product Thickness: 0.1-30mm
Product Width: Maximum 3000mm
Highlight:

PE PP sheet extrusion line 3000mm width

,

PP sheet extrusion machine 0.1-30mm thickness

,

PE board extrusion line with warranty
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HAUSHIDA
Certification: CE, ISO9001:2008, QS
Model Number: Plastic Sheet Extrusion Production Line
Payment & Shipping Terms
Packaging Details: Wooden Cases and Pallets
Delivery Time: 60DAYS
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 50 Sets/Month
Product Description
PE/PMMA Plastic Sheet / Board Extrusion Production Line
Product Description

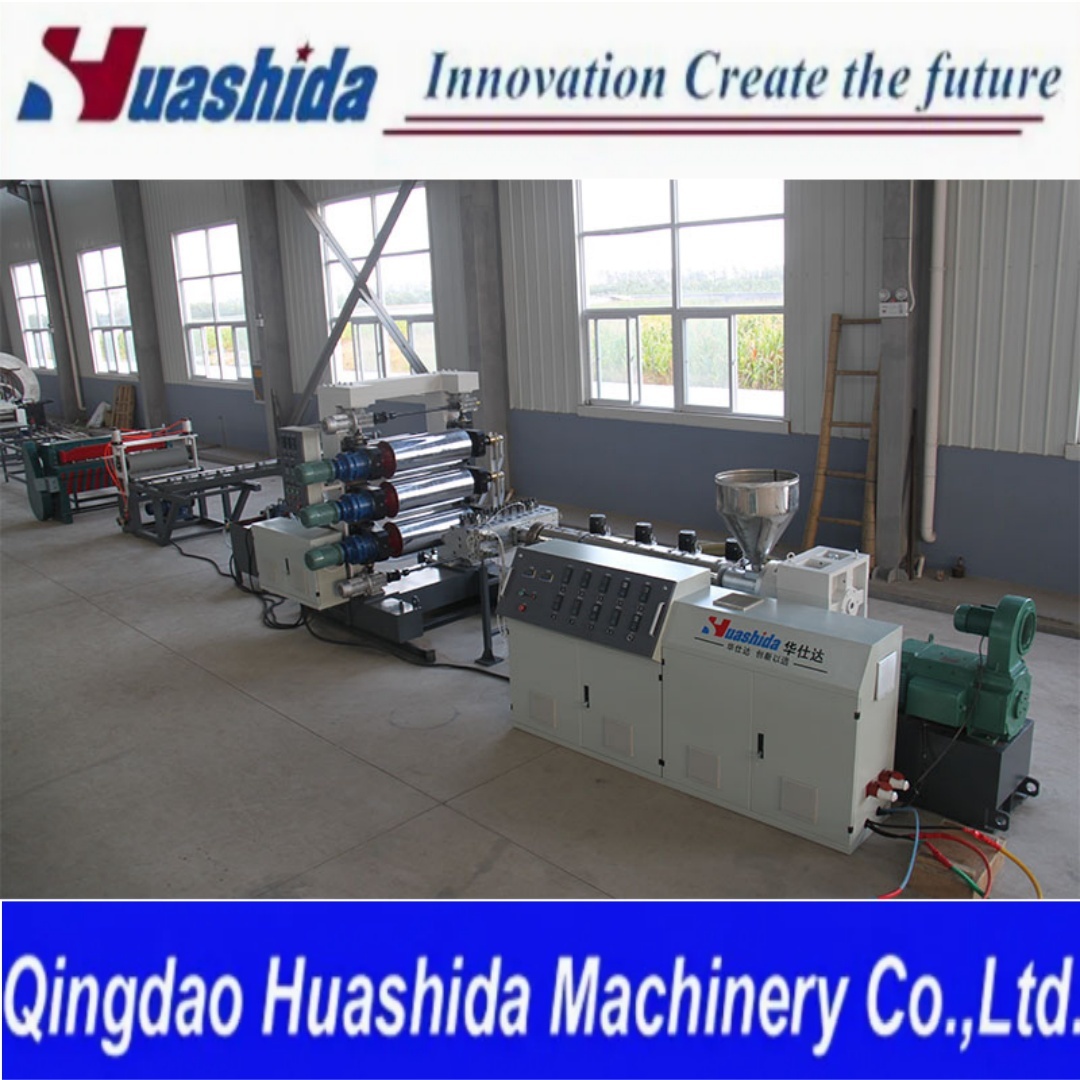

This sheet extrusion line is equipped vertical three-roller calender, with high perfomance vented extruder, diescreen chanae svstem, cooling rocket, haul-off unit, cuting unit and etc. This kind of line is suitable to produce PE/PP/PS/HIPS/ABS/PVC single-layer and multi-layer sheet with thickness of 0.1mm to 30mm and width of up to3000mm.

The PE/PVC/ABS sheets are widely used in the fields of refrigerator, air conditioner, auto, advertisement, and construction, environmental protection, etc.
PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width 0

Product Parameters

The plastic sheet extrusion lines equipments as below:

1 Single screw Extruder 1 Set
2 T-Die mold 1 Set
3 3-Calender Roller 1 Set
4 Roll temperature control system 1 Set
5 Cooling Bracket 1 Set
6 Haul-Off Unit 1 Set
7 Coiler 1 Set

Machine Features:
High-Strength Alloy Structural Steel: The material barrel, screw, and die are made of high-grade alloy structural steel (38CRMOALA) treated by nitriding, providing high hardness, corrosion resistance, and long service life.
PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width 1

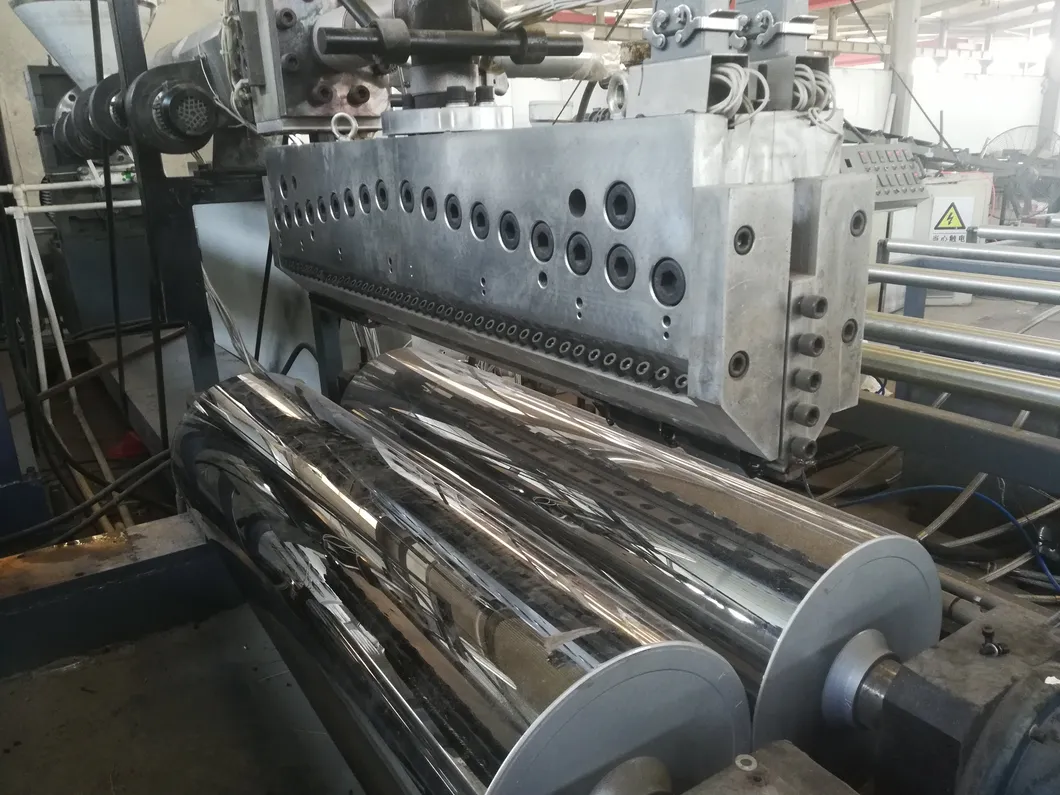

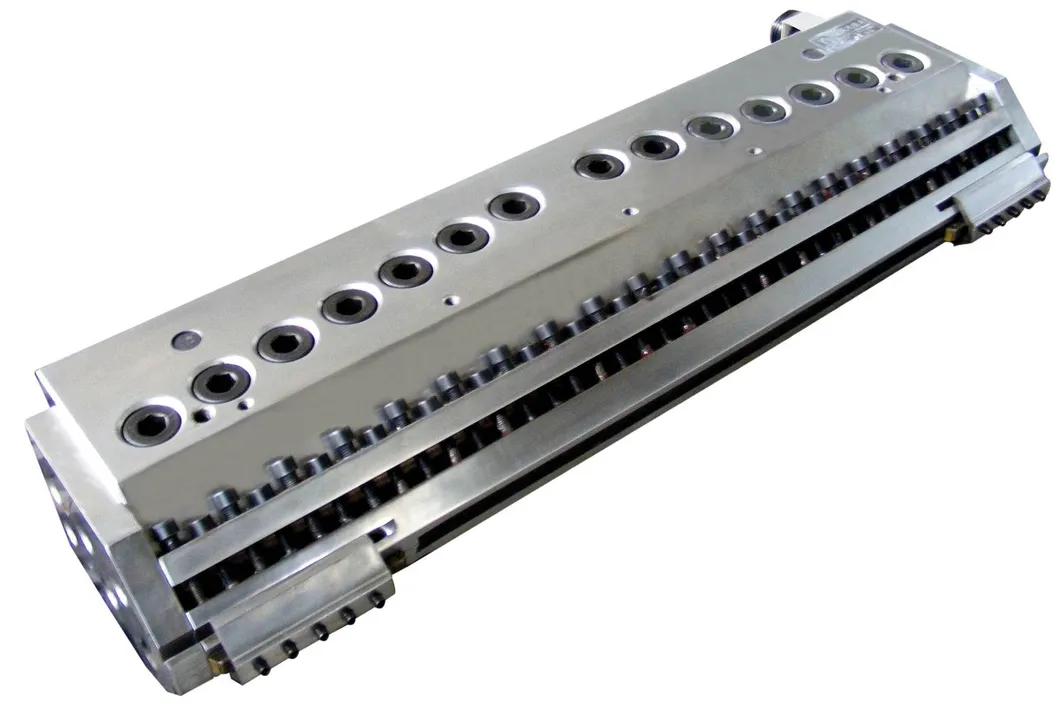

T-Die Design: The flow channel is designed for smooth flow of the melt without detaining, ensuring uniform sheet thickness.
PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width 2

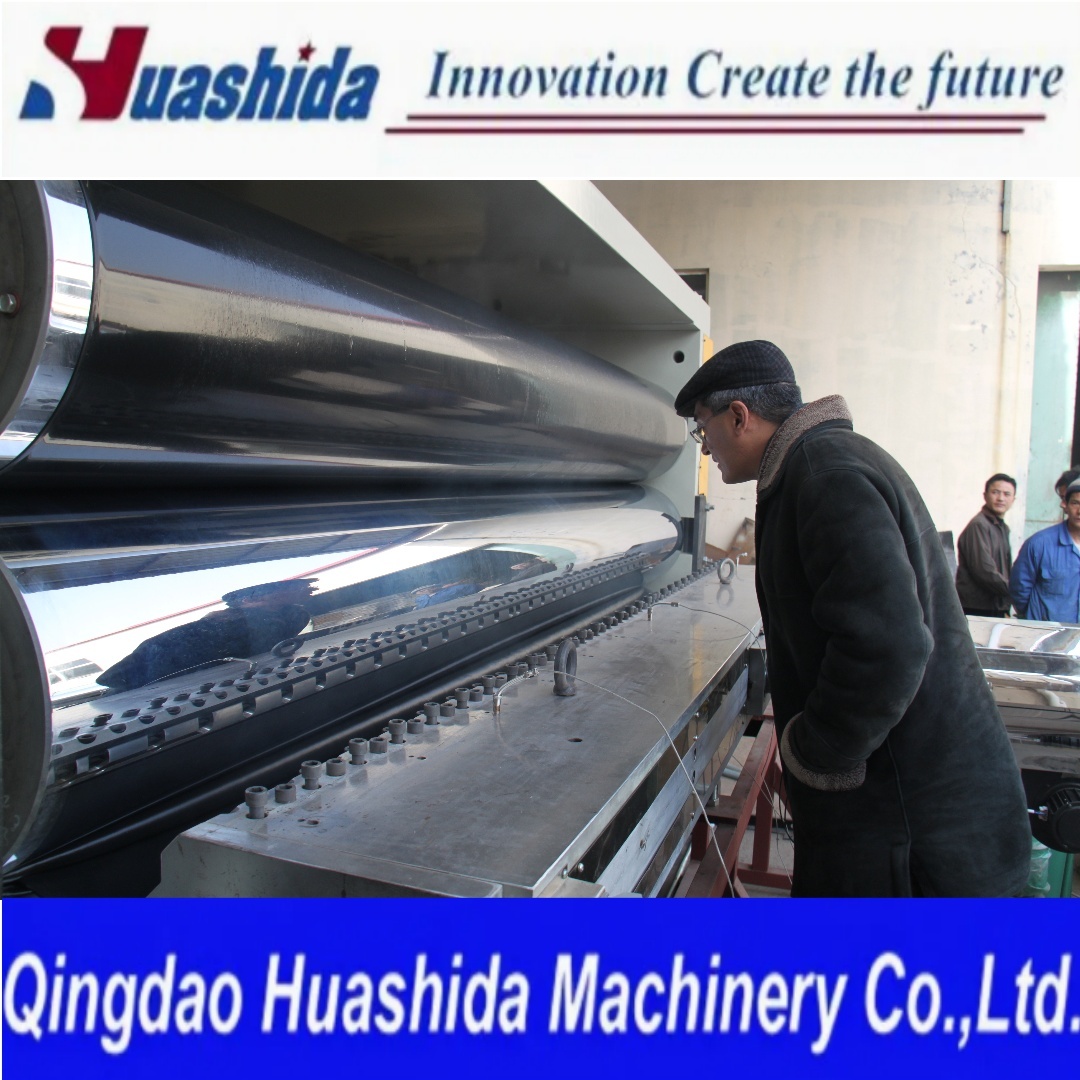

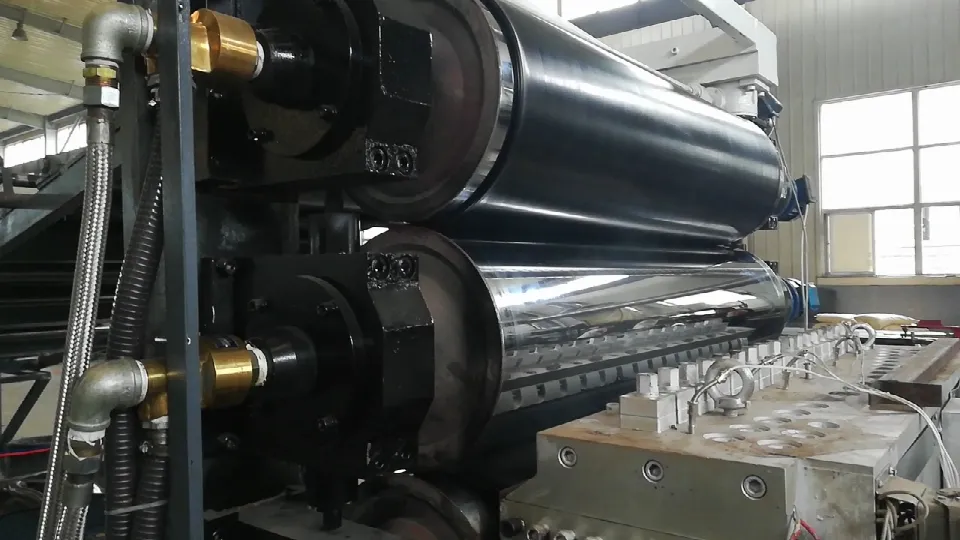

Calendering Design: The large conical slot design enhances cooling inside the rollers, ensuring temperature synchronization for high-quality production

PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width 3


PC/PP hollow cross-section plate. PVC transparent soft & hard plat & sheet. PVC foamed plate, PMMA/ABS co-extrusion bathing plate, inside chamber plate of the refrigerator and other multiple-layer composite co-extrusion plate & sheet size: width:300MM-700MM thickness0.2MM-45MM: output rate:80-1800KG./H. The machinery unit is the best solution for plate & sheet production.
(Modle) (width) Thickness(MM) Seedtm/min) Outputr(kg/h)
SBJZ-800 650 0.18-1.5 1-25 80-320
SBJZ -1000 800 0.2-2.0 1-20 150-430
SBJZ -1500 1350 1-10 0.5-10 150-450
SBJZ -2000 1850 2-15 0.5-8 300-550
SBJZ -2200 2000 1-10 0.4-3 420-820
SBJZ -3000 2850 2-8 0.2-3 500-1200
SBJZ -7000 6800 2-6 0.2-2 600-1560




Detailed Photos

PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width 4PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width 5PE PP Sheet Extrusion Line for 0.1-30mm Thickness 3000mm Width 6
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!


Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
