PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness

1
MOQ
US$40,000.00 - 260,000.0
Price
PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness
Features Gallery Product Description Request A Quote
Features
Specifications
Feeding Mode: One Feed
Product Thickness: 0.1-30mm
Product Width: Maximum 3000mm
Board Layers: Single & Multilayer Sheet
Highlight:

PE PP sheet extrusion line with calender

,

PP sheet extrusion machine 0.1-30mm

,

three-roll calender PE PP sheet line

Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008, QS
Model Number: Plastic Sheets Extrusion Line
Payment & Shipping Terms
Packaging Details: Wooden Cases and Pallets
Delivery Time: 60DAYS
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 50 Sets/Month
Product Description

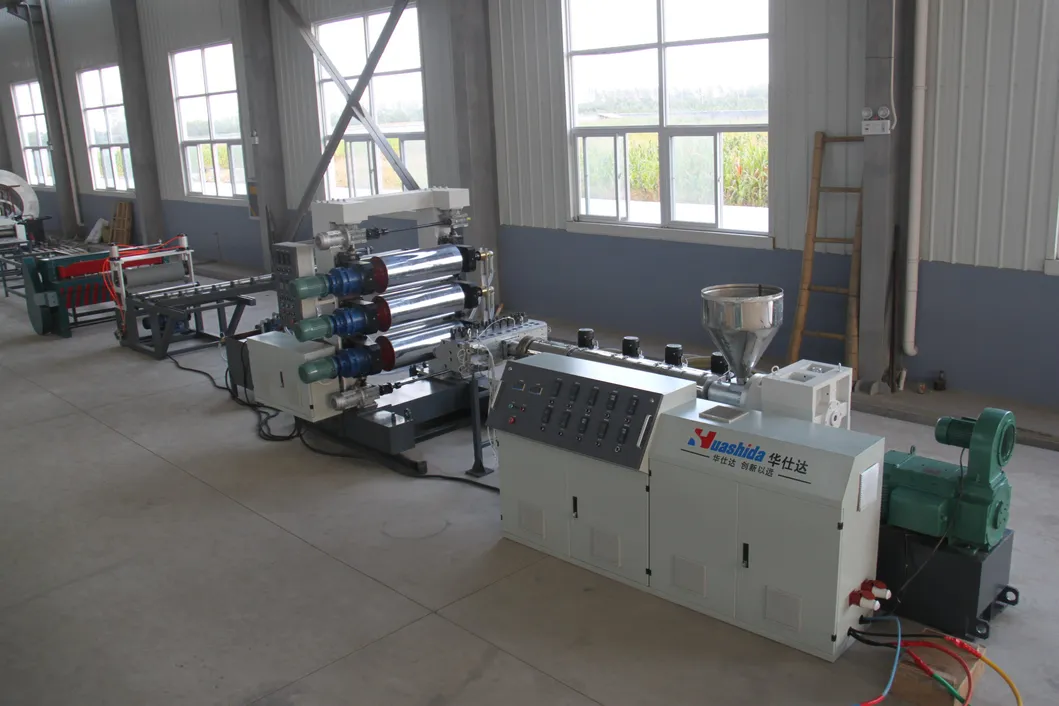

Three-Roll Calender of Plastic Sheets/ Boards Extrusion Line

Product Description

The sheet extrusion line is the most complete, high performance, reliable sheet lines. We offer them as complete systems in 3 sizes: With a 65mm, 90mm, or 120mm  Single extruder, to produce just the capacity you need.This sheet extrusion line is the best choice for producing various plastic sheets and films, offering high efficiency, stability, and energy-saving features, widely applied in industries such as machinery, chemicals, electronics, and more.

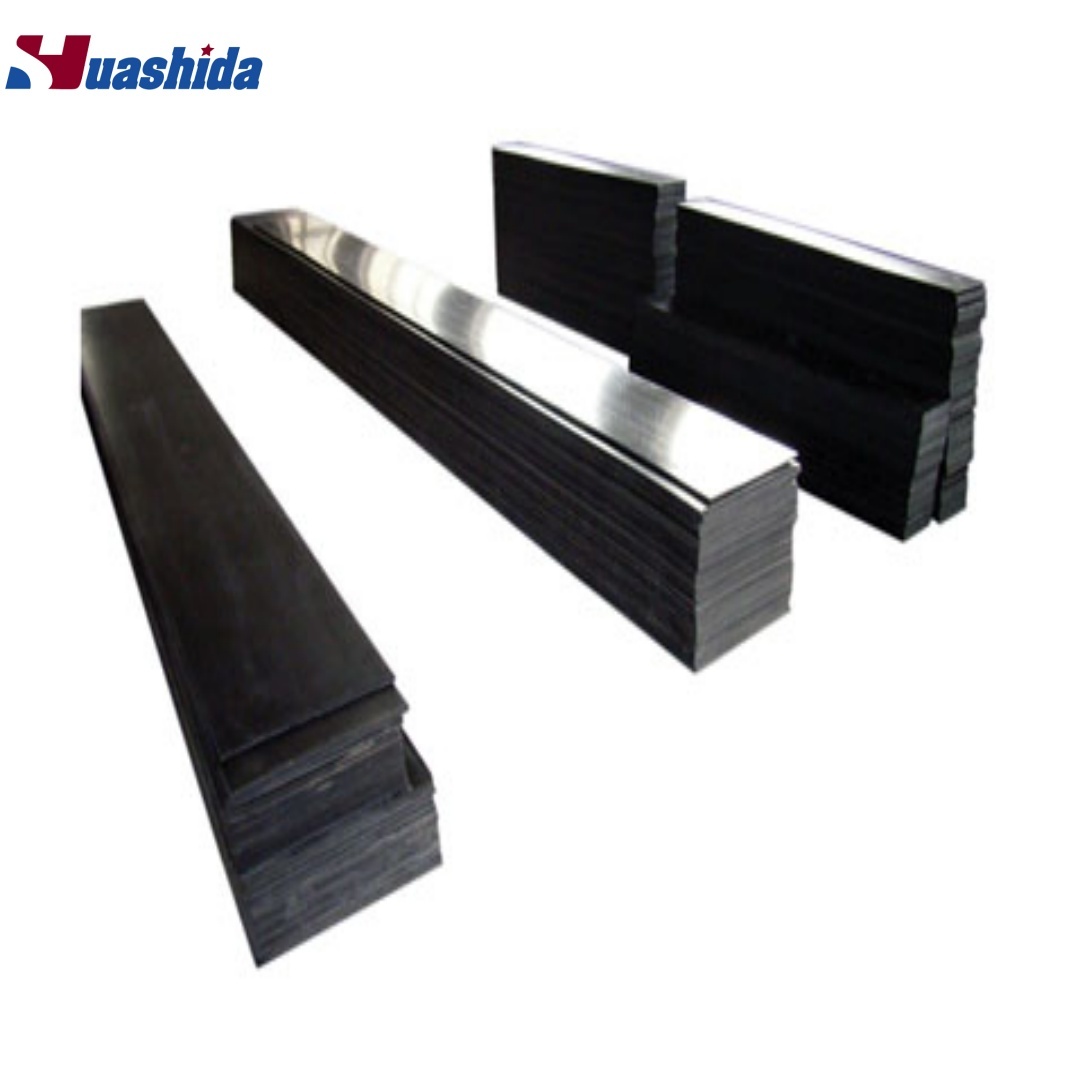

This kind of line is suitable to producePE/PP/PS/HIPS/ABS/PVC single-layer and multi-layer sheet with thickness of 0.1mm to 30mm and width of up to3000mm.
PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness 0

Product Parameters

The plastic sheet extrusion lines equipments as below:
Loader & Hopper Dryer

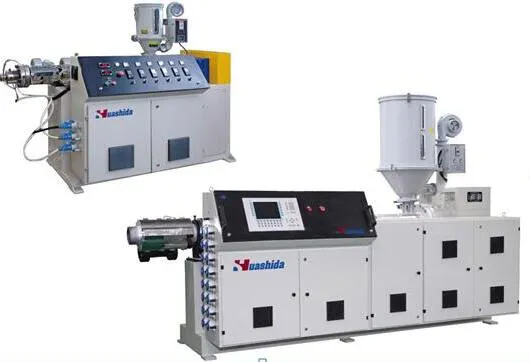

Extruder
Screen Changer

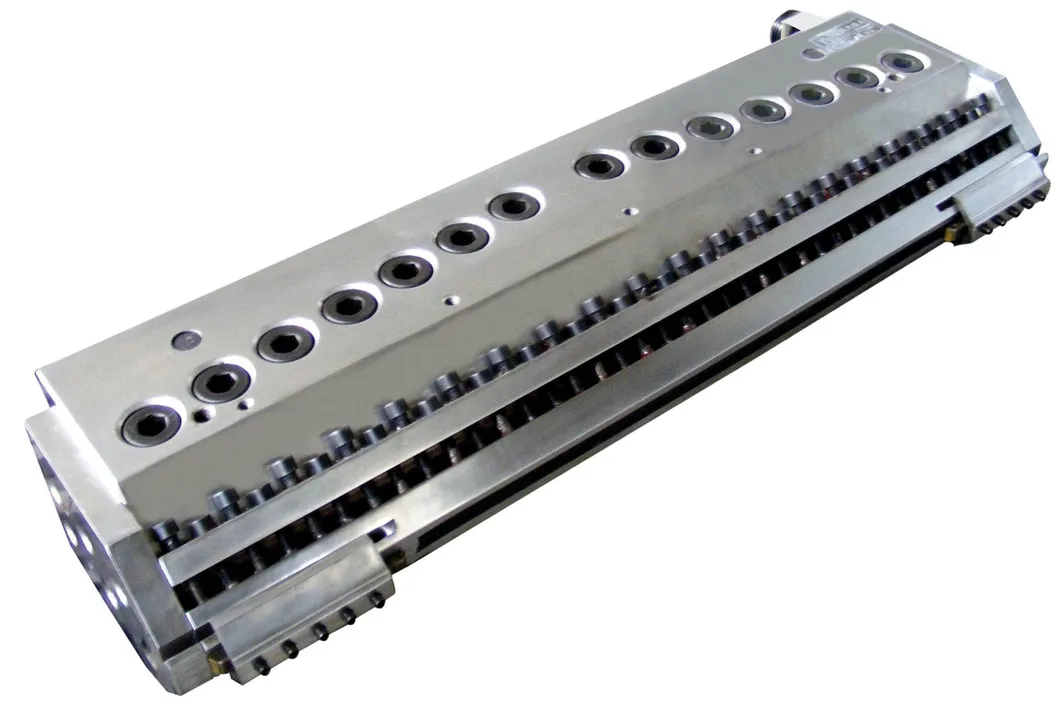

T-Die
Three-Roller Calender
Cooling Device
Edge Cutter
Haul-off System
Plate Cutter/Winder
Electrical Control System

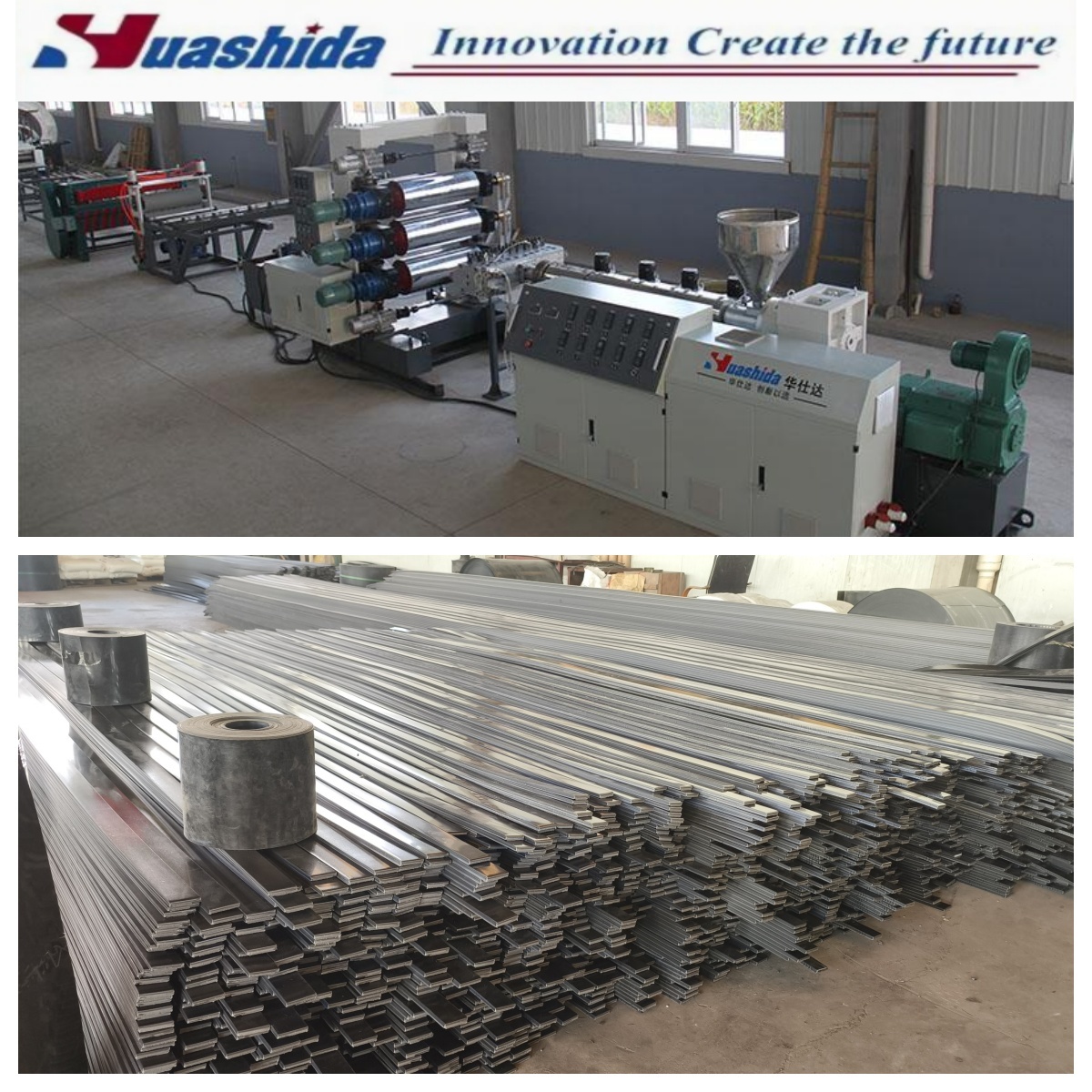

PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness 1

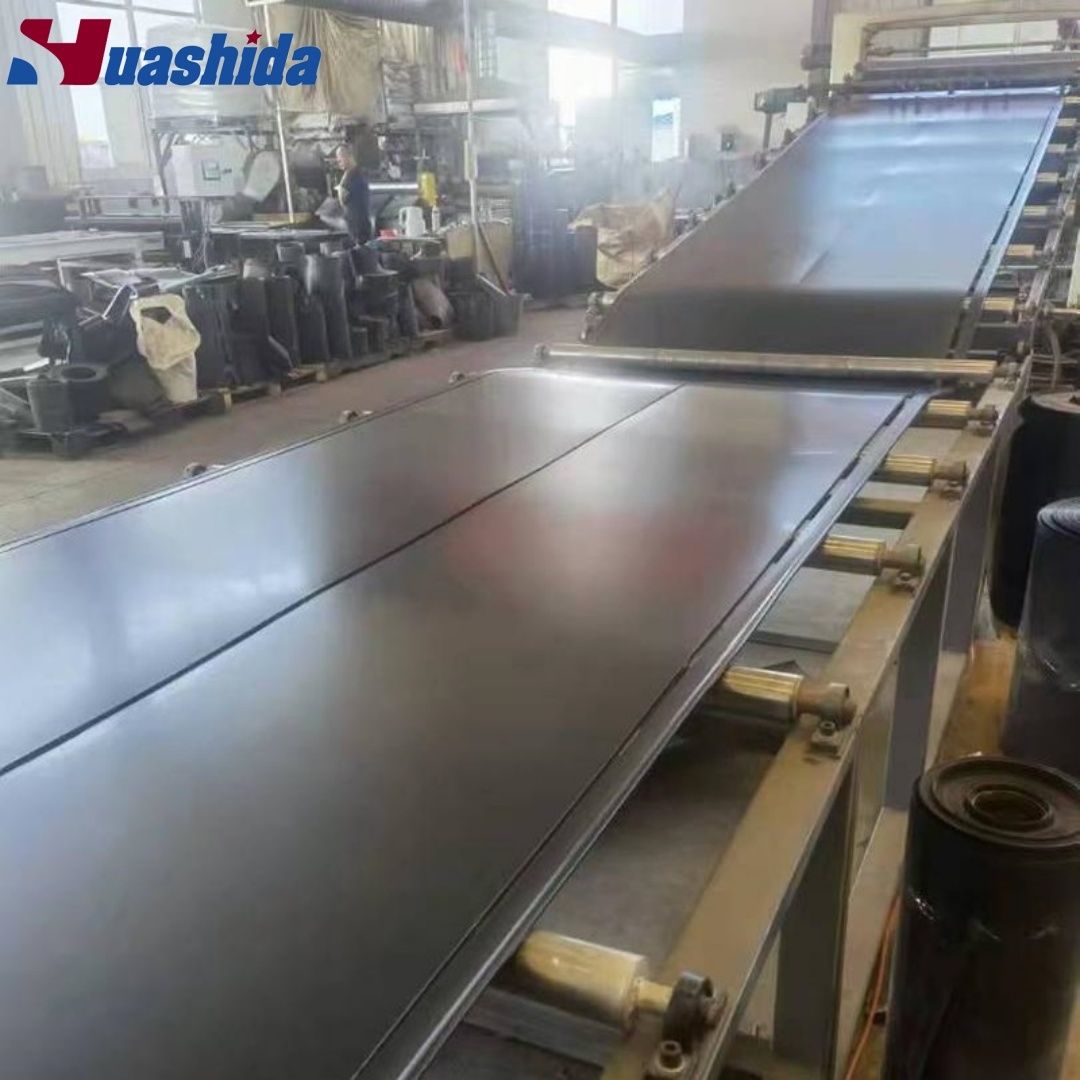

PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness 2



Extruder Sheet Width Sheet Thickness Capacity Total Power
Dimension
SJ65/30 Max. 800mm 0.2-3mm 150Kg/h 100Kw 18× 2× 2.5
SJ90/30(33) Max. 1200mm 3-15mm 280-300Kg/h 150Kw 24× 2× 2.5
SJ120/30(33) Max. 3000mm 5-20mm 500Kg/h 250Kw 20× 4× 2.5


Application

Applicable Materials: The line is designed for producing various plastic sheets and films, including:
PC/PP Hollow Cross-Section Plates
PVC Transparent Soft & Hard Plates and Sheets
PVC Foamed Plates
PMMA/ABS Co-Extrusion Bathing Plates
Refrigerator Interior Plates
Multi-Layer Composite Co-Extrusion Sheets and Films


Advantages

Industry-Leading Technology: In cooperation with the National Rubber and Plastics Laboratory, with 76 national patents.
Energy-Efficient: Saves electricity and water, reducing energy consumption by 30%.
Intelligent Control System: Uses Siemens PLC to save manpower and enhance automation.

Detailed Photos

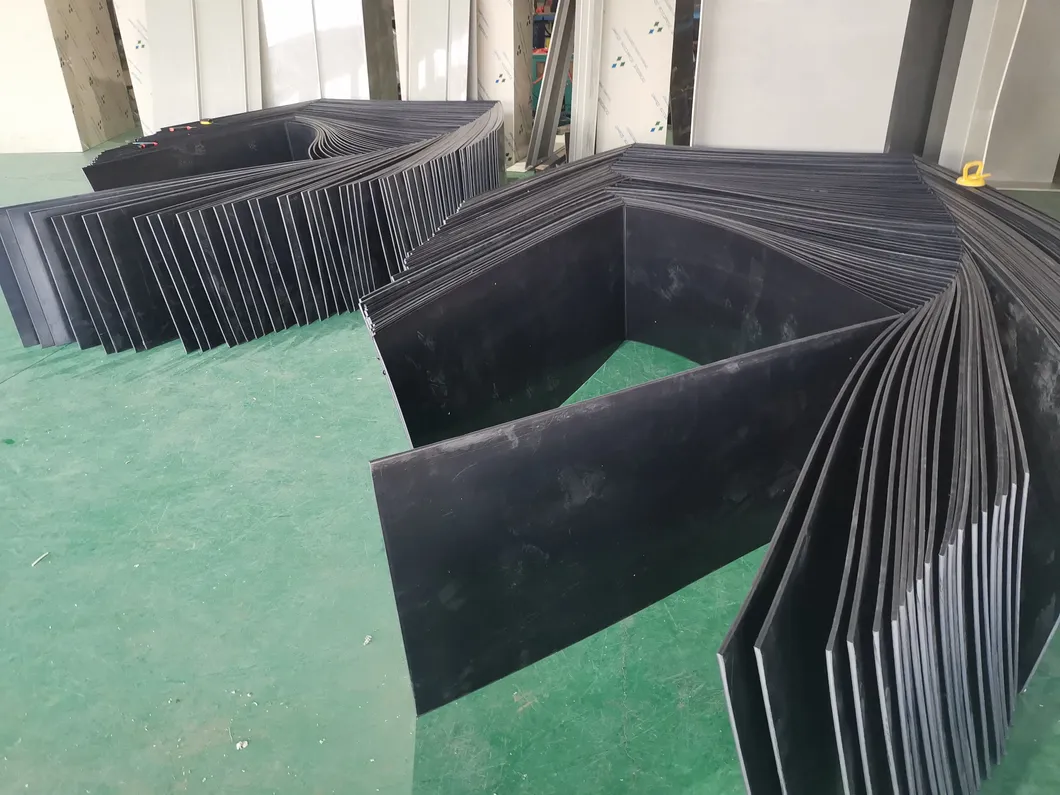

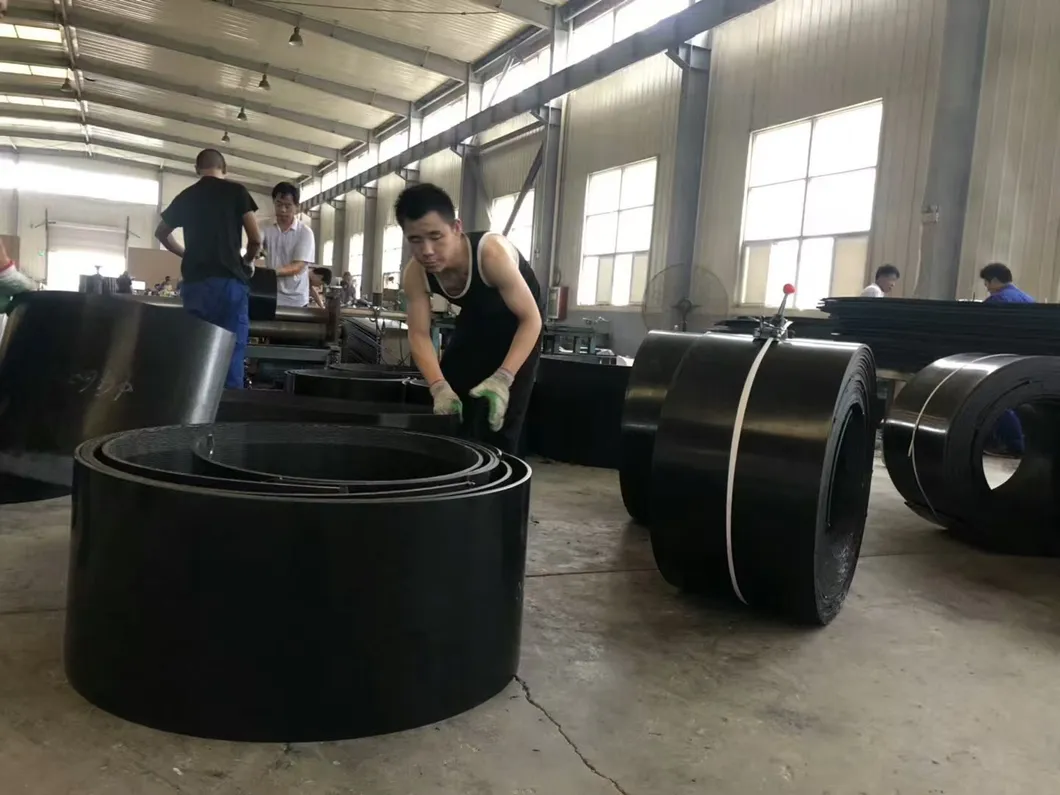

PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness 3PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness 4PE PP Sheet Extrusion Line with Three-Roll Calender 0.1-30mm Thickness 5



Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!



Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods


Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
