Name: PE PP PET Multi-Layer Sheet Extrusion Line 3000mm Width
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: PE/PP Sheets Line
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: PE/PP/PS/HIPS/ABS

Board Layers: Single & Multilayer Sheet

Automation: Automatic

Product Width: Maximum 3000mm

Highlight:

PE PP PET multilayer sheet extrusion line

3000mm wide plastic sheet extruder

PE PP sheet extrusion machine with warranty

Basic Infomation

Place of Origin: QINGDAO,CHINA

Brand Name: HUASHIDA

Certification: CE, ISO9001:2008, QS

Model Number: PE/PP Sheets Line

Payment & Shipping Terms

Packaging Details: Wooden Cases and Pallets

Delivery Time: 60DAYS

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 50 Sets/Month

Gallery

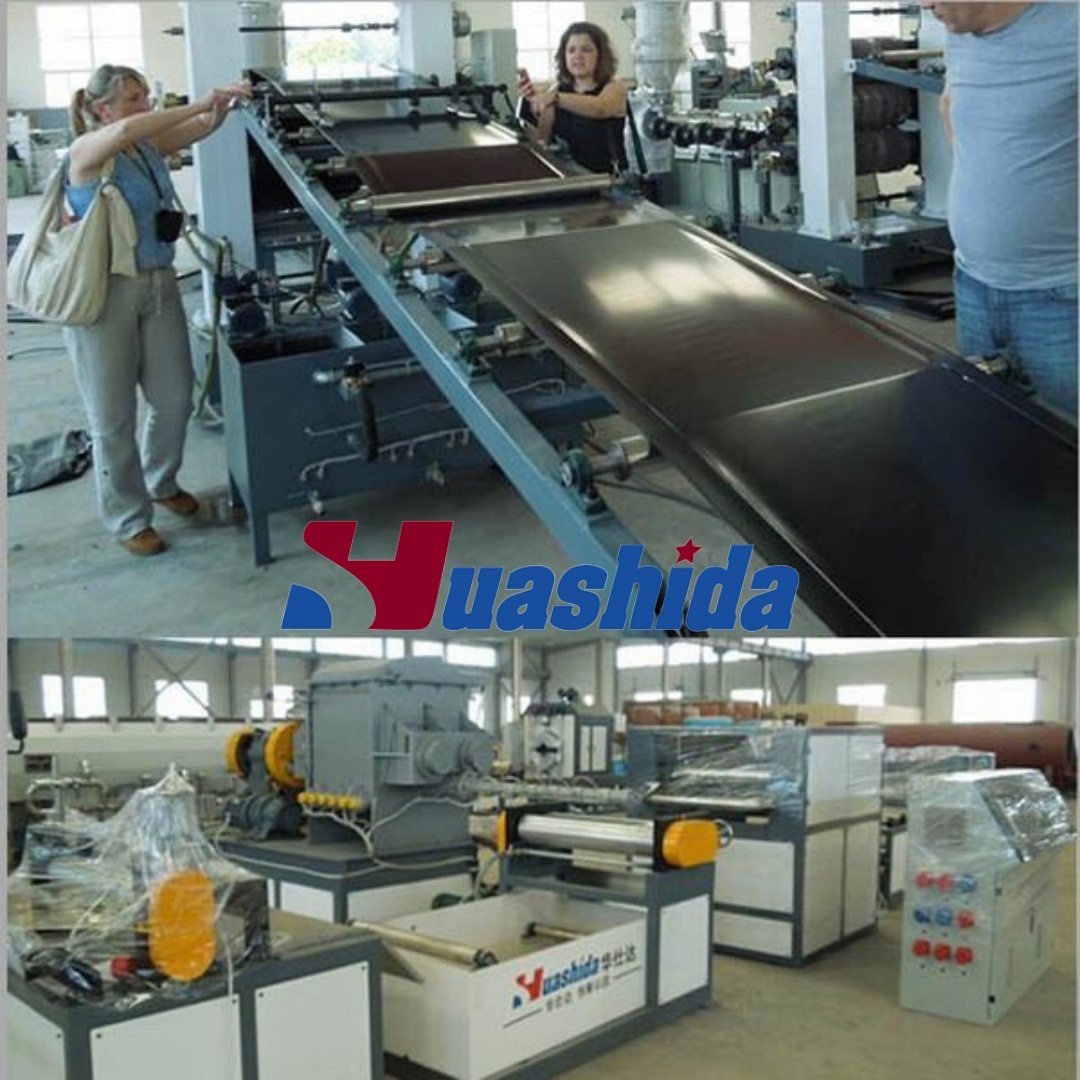

PE PP PET Multi-Layer Sheet Extrusion Line 3000mm Width

Product Description

PE/PP/PET Multi-Layer Sheets Boards Co-Extrusion Line

This kind of line is suitable to producePE/PP/PS/HIPS/ABS/PVC single-layer and multi-layer sheet with thickness of 0.1mm to 30mm and width of up to3000mm.

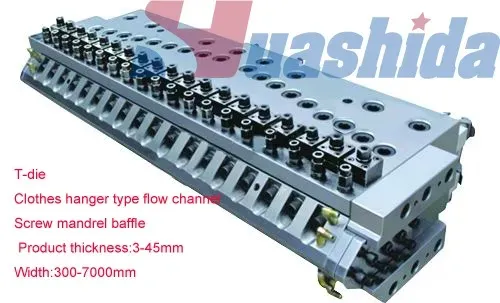

T-Die
It consists of SBJZ-series plate &sheet special-purpose single screw extruder SJZ-series conical twin screw extruder Or SJ-series parallel twin screw extruder; equipped with auxiliary downstream accessories and moulds, it can produce: PP ,PS,HIPS,PE,ABS,EVA,PMMA,PC,PT,PVB,PVC and other board & sheet.

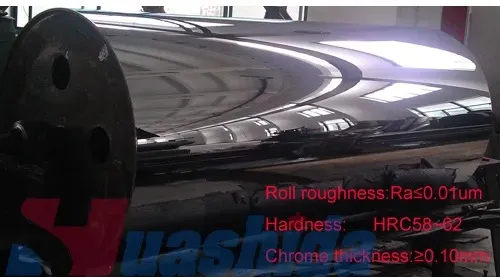

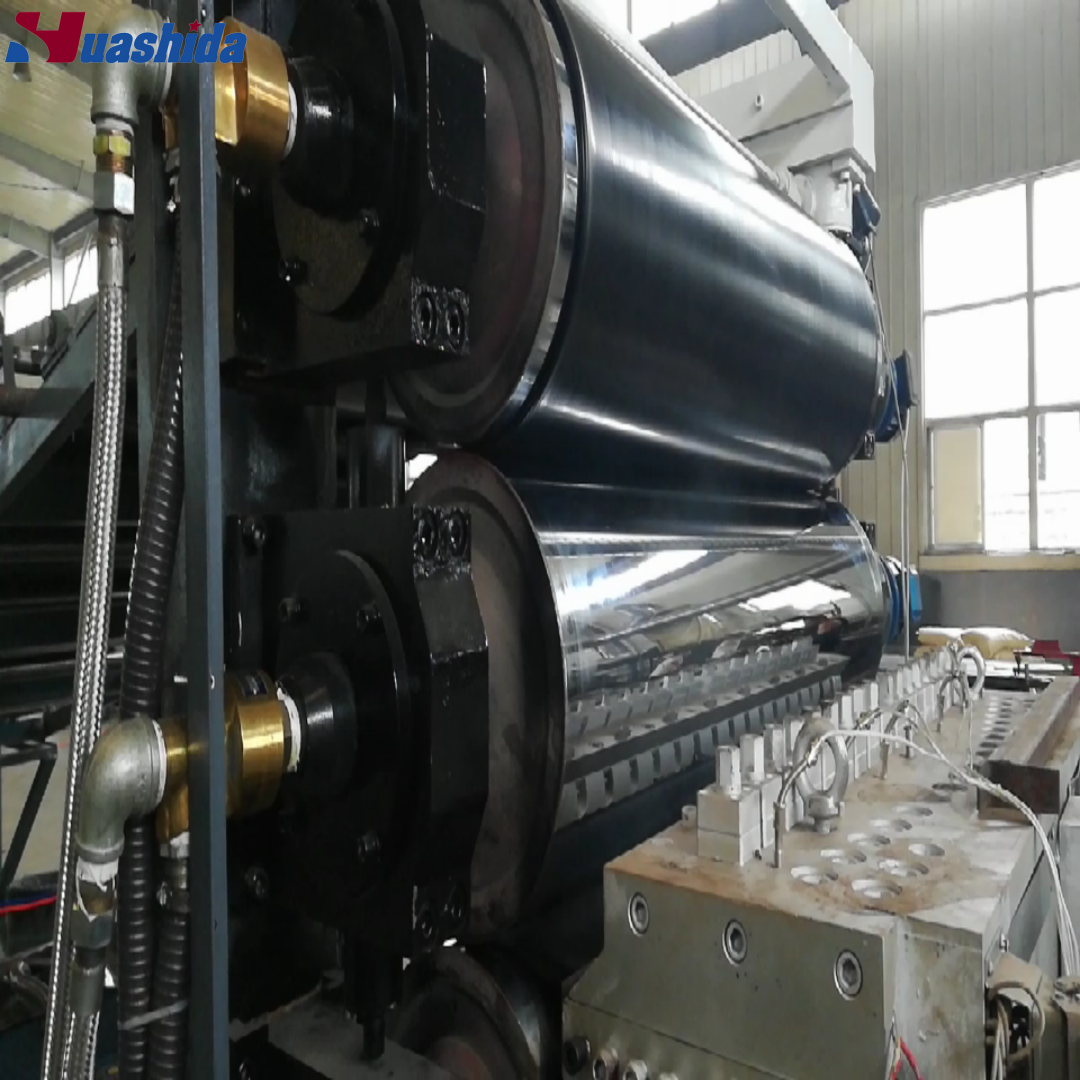

Three-Roller or Multi-Roller Calender

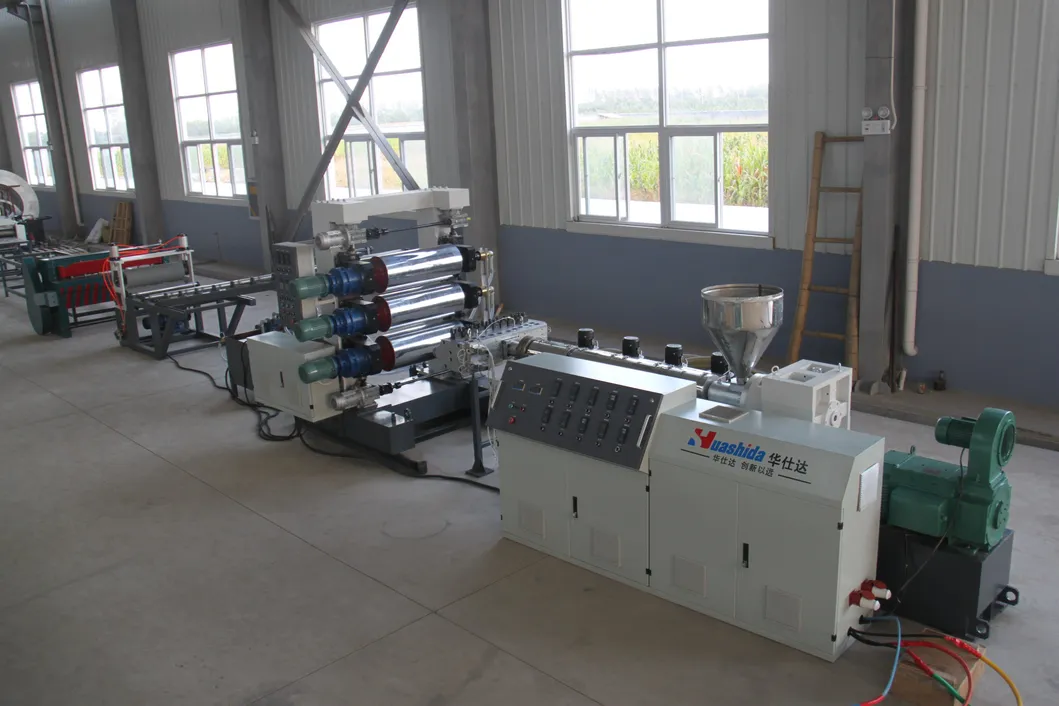

The machinery unit consists of extruder, Screen changing device, melt pump, T-die,3-rollr or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.
others, The working principle is the 3 states of the hot-plastics at different temperatures: the pushing force of the screw change the physical stat from glass state to high elastic state, then glutinous-and-fluid sate, it comes out from the slim gap of the die, the rest of the procedures are calendar, cooling-shaper, edge-cutter, Haul-off, cutter, winder.
PE PP PET Multi-Layer Sheet Extrusion Line 3000mm Width 1

PE PP PET Multi-Layer Sheet Extrusion Line 3000mm Width 1

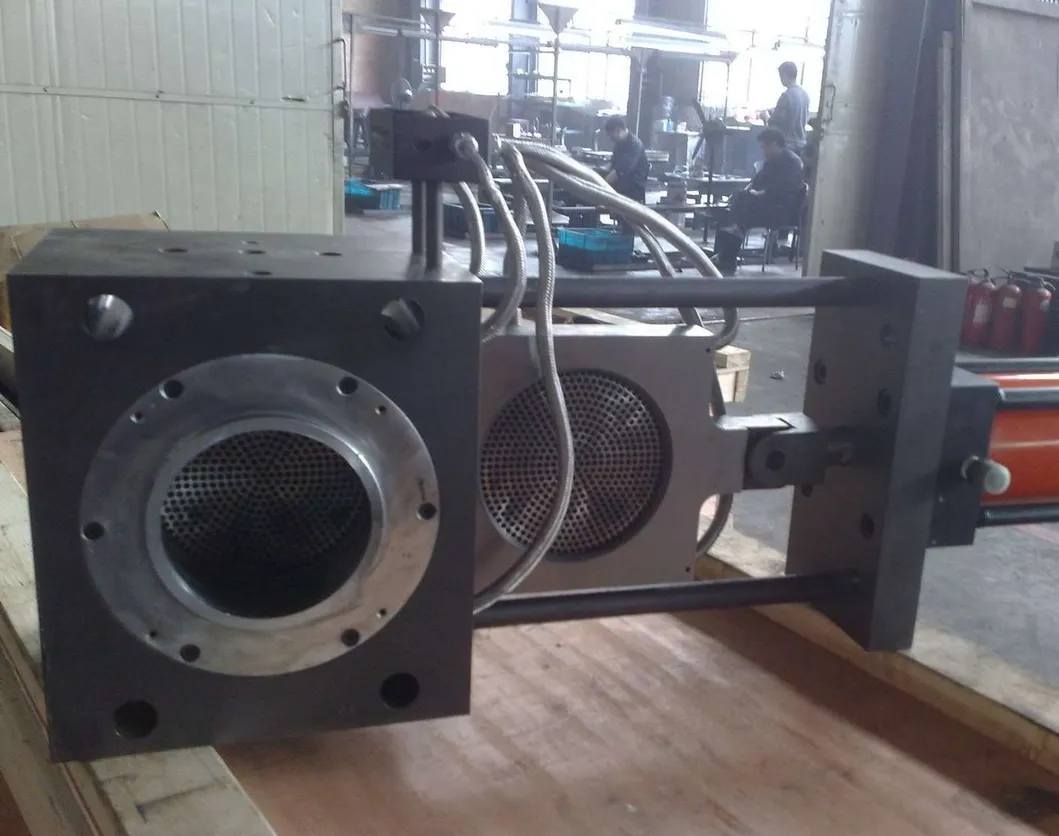

Double-station hydraulic screen changer
It adopts a dual-channel and dual-station design, and the die head is equipped with two sets of filtration systems. During normal production, the two networks operate in parallel to share the load. When replacing, switch to single network operation through hydraulic means, and the other network can be replaced without stopping the machine.
Feature: Change the screen without stopping the machine. It has excellent sealing performance, a large filtration area, and can fully remove the gas in the material

Features of the machinery unit: high grade alloy structural steel ( 38CRMOALA) made material barrel& screw and mould, after nitriding treatment. It gets high hardness, corruption and long service life. Choice T-die the flowing passage is designed for easy flowing of thehout any detaining, and the product thickness is even, For the calender, large conical slot is designed, the cooling quality inside the roller is good, and the temperature synchronization.
PE PP PET Multi-Layer Sheet Extrusion Line 3000mm Width 3

PE PP PET Multi-Layer Sheet Extrusion Line 3000mm Width 3

Application of ABS, HIPS refrigerator board:This board is suitable to be used in gallbladder in the refrigerator, door gallbladder, the drawer, water containedplate, etc.

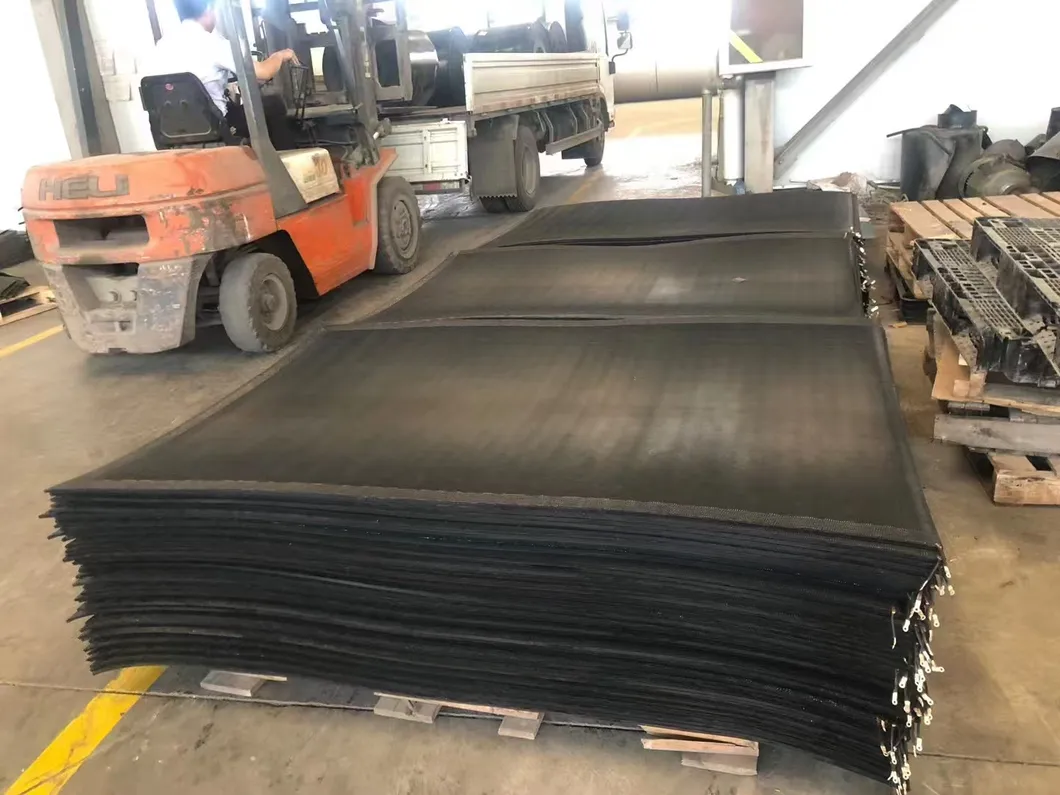

Application of PE, Pp board:Density low, good sanitation performance, erosion resistance and heat resistance etc. So, they are widely usedin chemical industry, erosion resistance project, depuration treatment environment protection etc. industry

PE PP PET Multi-Layer Sheet Extrusion Line 3000mm Width 4

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
