Home /Products/Pre-Insulated Pipe Production Line/1.75mm-4.0mm Hdpe Plastic Welding Rods Making Process Production Line 30kg/H

1.75mm-4.0mm Hdpe Plastic Welding Rods Making Process Production Line 30kg/H

1set
MOQ
US$100000-150000
Price
1.75mm-4.0mm Hdpe Plastic Welding Rods Making Process Production Line 30kg/H
Features Gallery Product Description Request A Quote
Features
Specifications
Diameter Of The Rod: 1.75mm-4.0mm
Extruder Model: Single Screw Extruder
Frequency Converter: ABB
Production Capacity: 30kg/H
Highlight:

1.75mm Plastic welding rod extrusion line

,

4mm Hdpe welding rod extrusion line

,

30kg/H welding rod extrusion line
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: Huashida
Certification: CE,ISO,SGS,etc.
Model Number: HSD-WR
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 100 sets / year
Product Description

Product Description

Product Description

20-Year Hdpe Plastic Welding Rods welding rod Making ProcessProduction Line In China

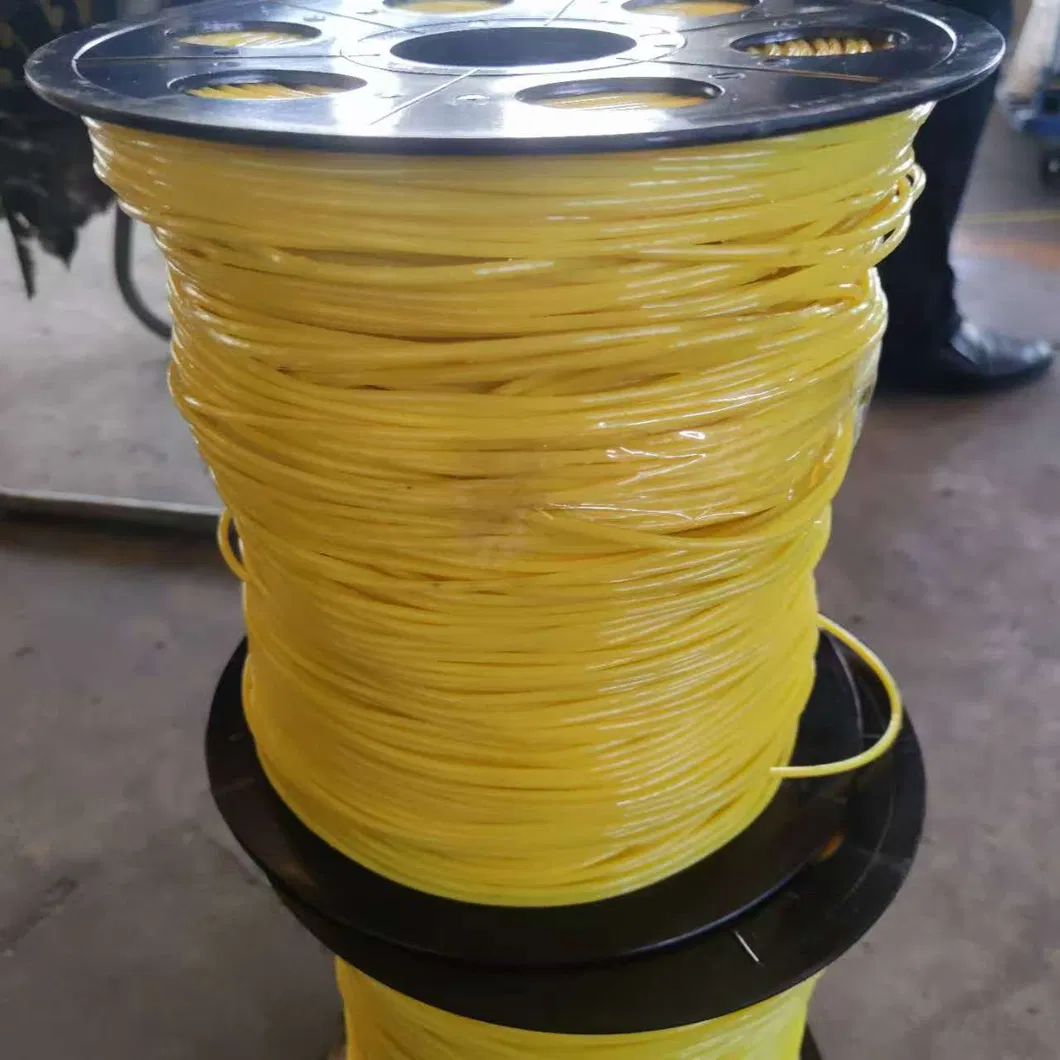

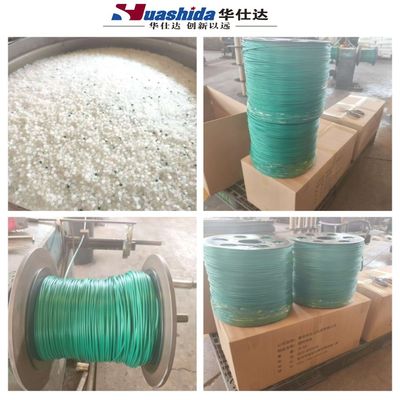

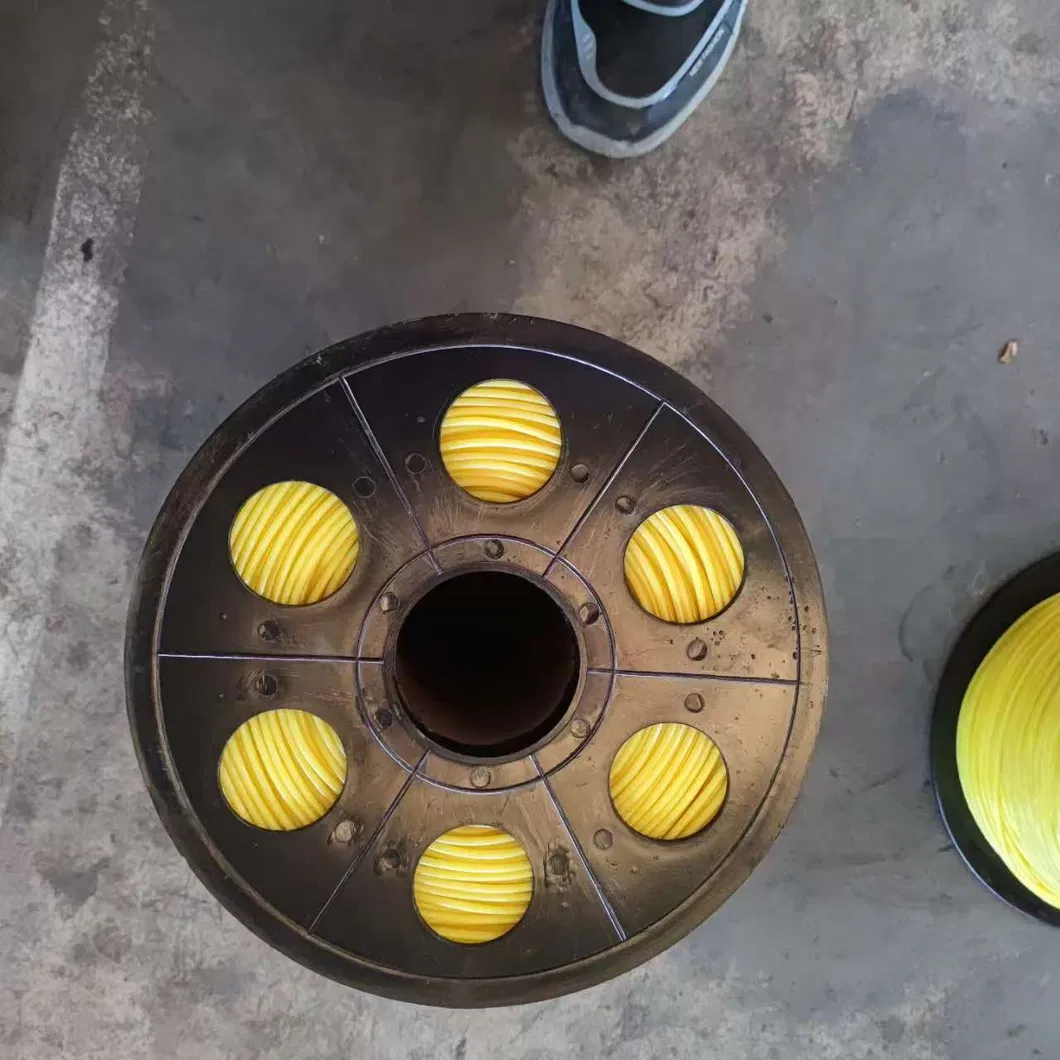

This plastic welding rod extrusion line is specifically designed for producing high-quality PE and PP welding rods with diameters ranging from 1.7mm to 4.0mm. The rods are available in custom colors and are widely used in manual welding applications for plastic tanks, pipes, sheets, and various thermoplastic products.



Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production

Key Features

  • Compatible with PE and PP Raw Materials
  • Rod Diameter Range: 1.7mm to 4.0mm
  • Stable Extrusion with High Precision

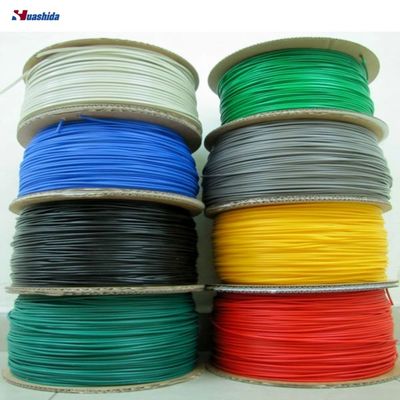

  • Available in Multiple Colors
  • Ideal for Manual Plastic Welding Applications



Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production
Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production
Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production


Machine Configuration:

No. Machine Part Specification
1 Automatic Feeder 1 Set
2 Hopper Dryer 1 Set

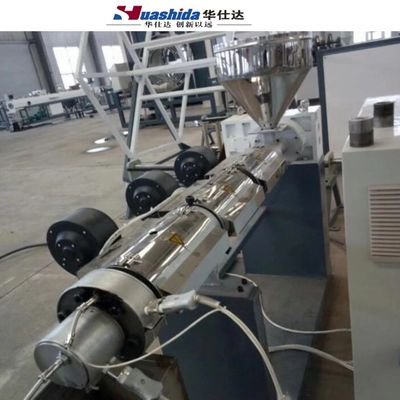

3 Single Screw Extruder (SJ45/30) 1 Set
  Screw Diameter 45mm
  L/D Ratio 30:1
  Screw Treatment Nitrided & polished, depth 0.3-0.6mm, hardness > HV740
  Barrel Treatment Nitrided & honed, depth 0.4-0.7mm, hardness > HV940
  Heating Zones 4-section ceramic heater (3.0kW × 4)
  Cooling Method Air cooling by fan (0.175kW × 4)
  Gearbox Model T-225, hardened helical gear, 20CrMnTi gears, 40Cr shaft
  Gearbox Cooling Internal circulating water
  Main Motor 7.5kW AC motor, inverter-controlled
  Extrusion Capacity 25kg/h (Output: 5-15kg/h)
  Center Height 1000mm
  Temperature Controller Included
4 Mould 1 Set (Customized according to rod size)
5 Cooling Tank 1 Set
6 High-Speed Haul-off Machine 1 Set

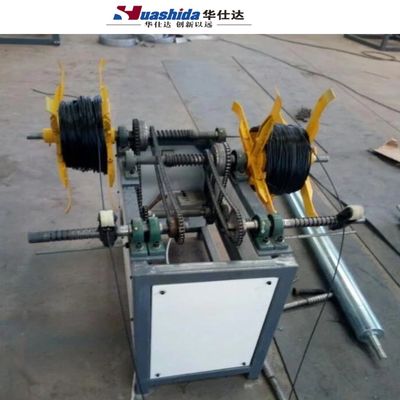

7 Two-Station Rewinder 1 Set




Applications

  • Manual Welding of Plastic Tanks, Pipes, and Sheets
  • Ideal for Chemical Storage Tank Fabrication
  • Widely Used in Plastic Repair and Maintenance Industries
  • Compatible with Hot Air Welding Tools

  • 1.75mm-4.0mm Hdpe Plastic Welding Rods Making Process Production Line 30kg/H 4

    1.75mm-4.0mm Hdpe Plastic Welding Rods Making Process Production Line 30kg/H 5

    1.75mm-4.0mm Hdpe Plastic Welding Rods Making Process Production Line 30kg/H 6

    1.75mm-4.0mm Hdpe Plastic Welding Rods Making Process Production Line 30kg/H 7




Why Choose Us?

  • Over 20 years of experience in plastic extrusion machinery

  • Customizable design for different rod sizes and materials

  • Reliable after-sales support and installation guidance

  • Exported to over 30 countries with stable performance

Company Profile

Qingdao Huashida Machinery Co., Ltd. is a manufacturer of a comprehensive range of plastic pipe machines, municipal pipe machines, pipe insulation and anticorrosion machines, as well as pipe jointing and anticorrosion materials. With 21 years of production experience, we are dedicated to delivering high-quality solutions in the industry.


Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.


We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production
Our team
Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production
Delivery
Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production
Exhibition
Plastic Welding Wire Extrusion Line for PE PP PVC Rod Production
Certifications
Plastic Welding Wire Extrusion Line for PE PP PVC Rod ProductionPlastic Welding Wire Extrusion Line for PE PP PVC Rod Production
