PE PP Sheet Extrusion Line for Single & Multilayer Boards 0.1-30mm

The sheet extrusion line is the most complete, high performance, reliable sheet lines. We offer them as complete systems in 3 sizes: With a 65mm, 90mm, or 120mm  Single extruder, to produce just the capacity you need.This sheet extrusion line is the best choice for producing various plastic sheets and films, offering high efficiency, stability, and energy-saving features, widely applied in industries such as machinery, chemicals, electronics, and more.

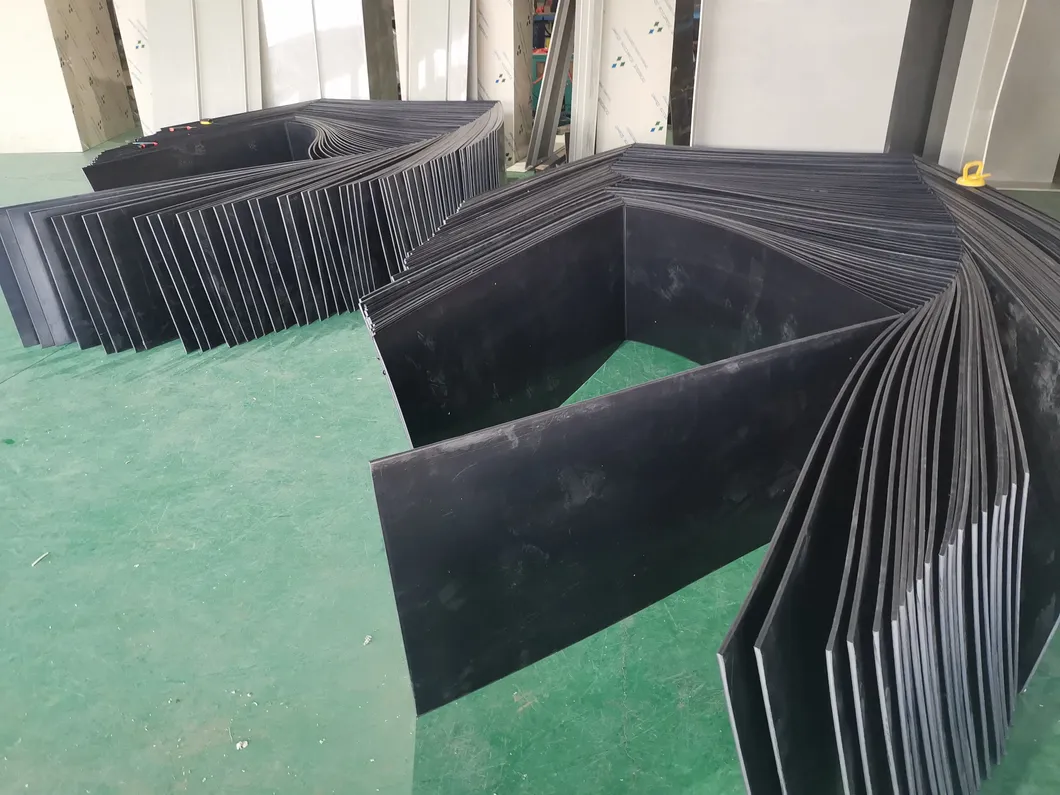

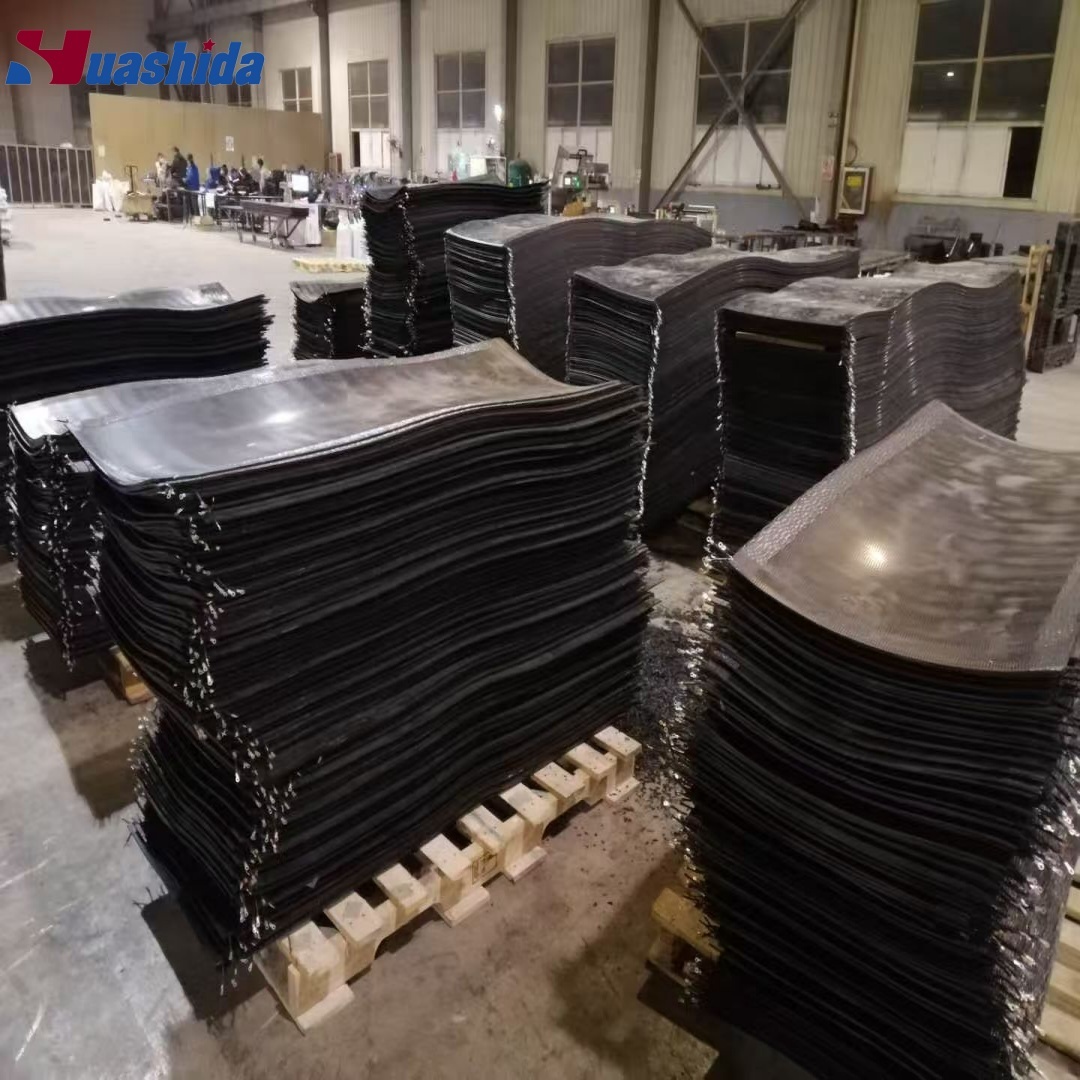

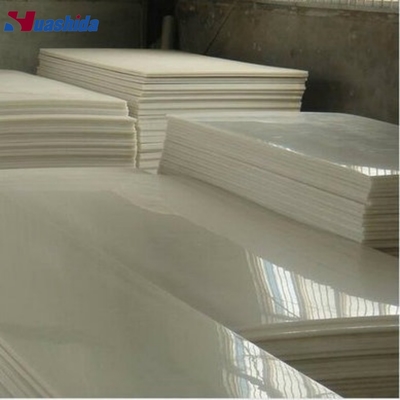

This kind of line is suitable to producePE/PP/PS/HIPS/ABS/PVC single-layer and multi-layer sheet with thickness of 0.1mm to 30mm and width of up to3000mm.

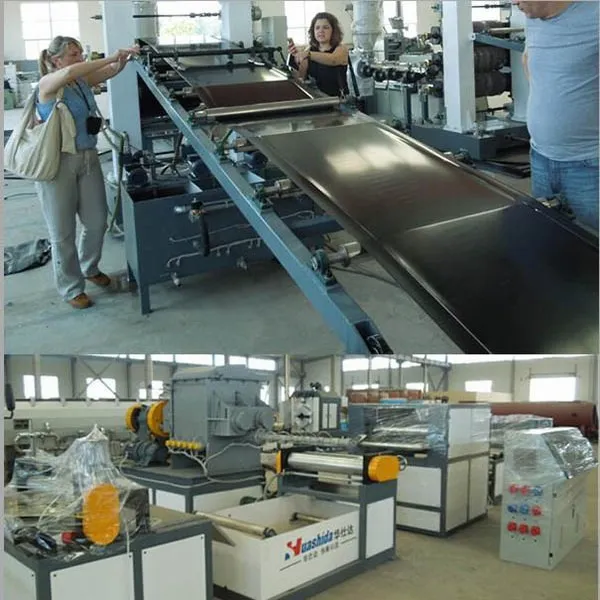

The plastic sheet extrusion lines equipments as below:
Loader & Hopper Dryer
Extruder
Screen Changer
T-Die
Three-Roller Calender
Cooling Device
Edge Cutter
Haul-off System

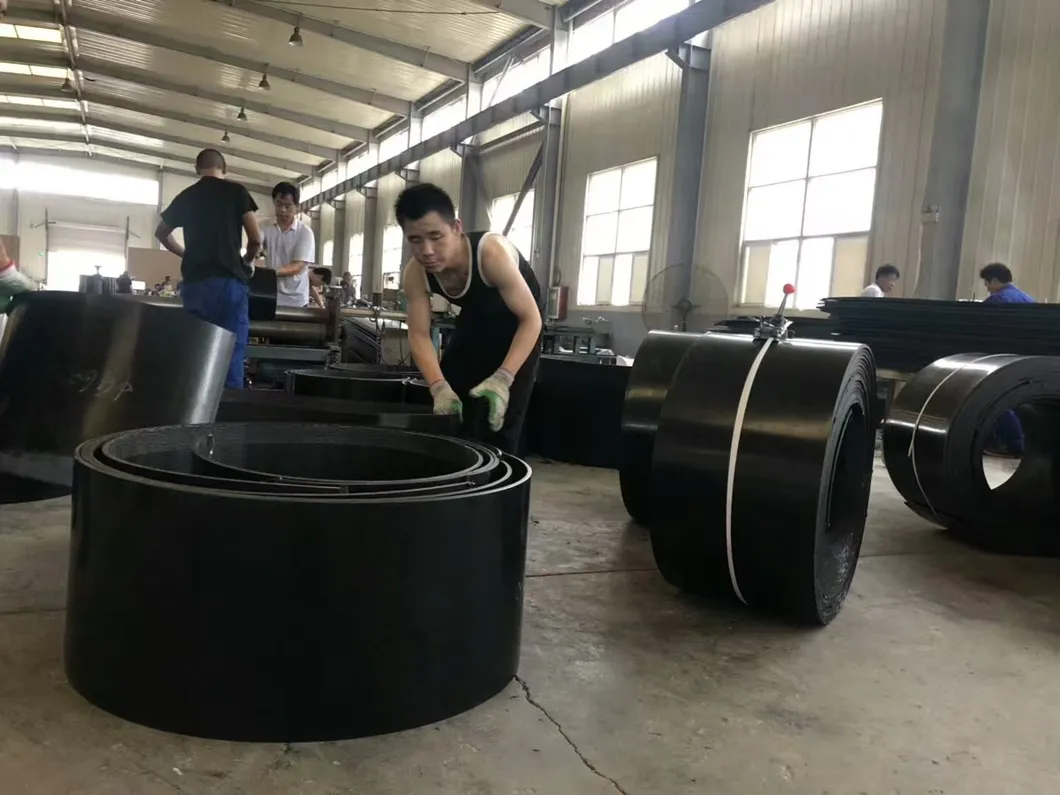

Plate Cutter/Winder
Electrical Control System

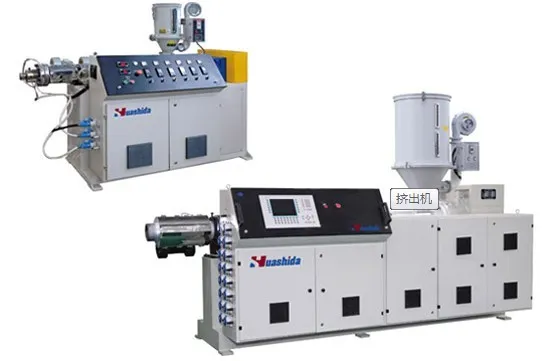

Extruder

Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.

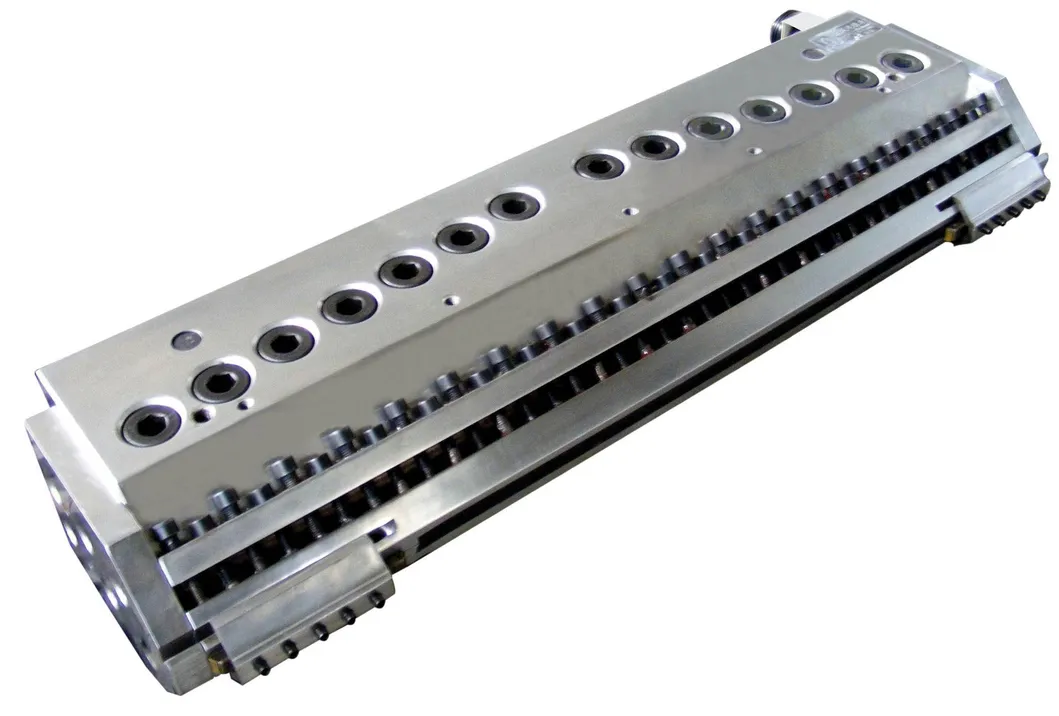

Die head


The flow channel is designed for smooth flow of the melt without detaining, ensuring uniform sheet thickness.

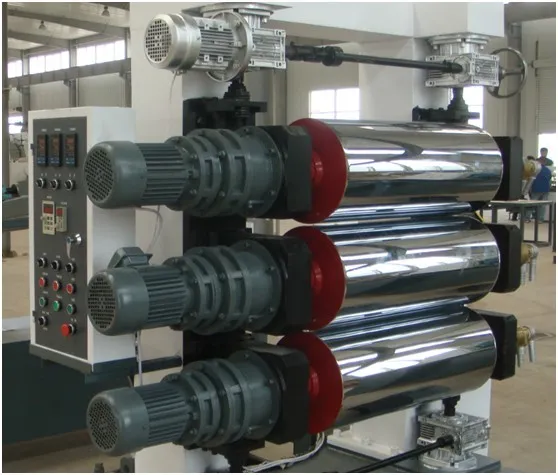

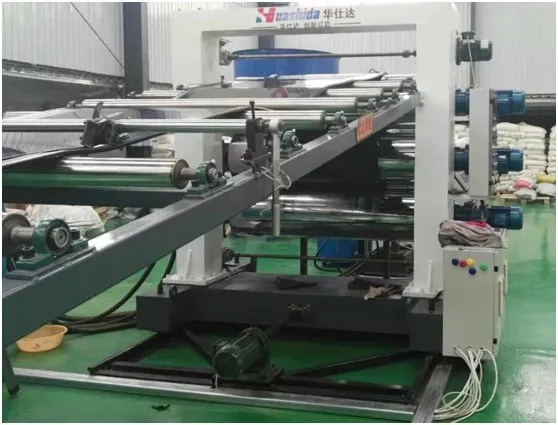

Three Calender

It has Verical and Oblique structures according to different width of the sheet. Specially designed flow path inside the roll ensures precisely controlling of roller temperature, then ensure flat and brightness of the roller.

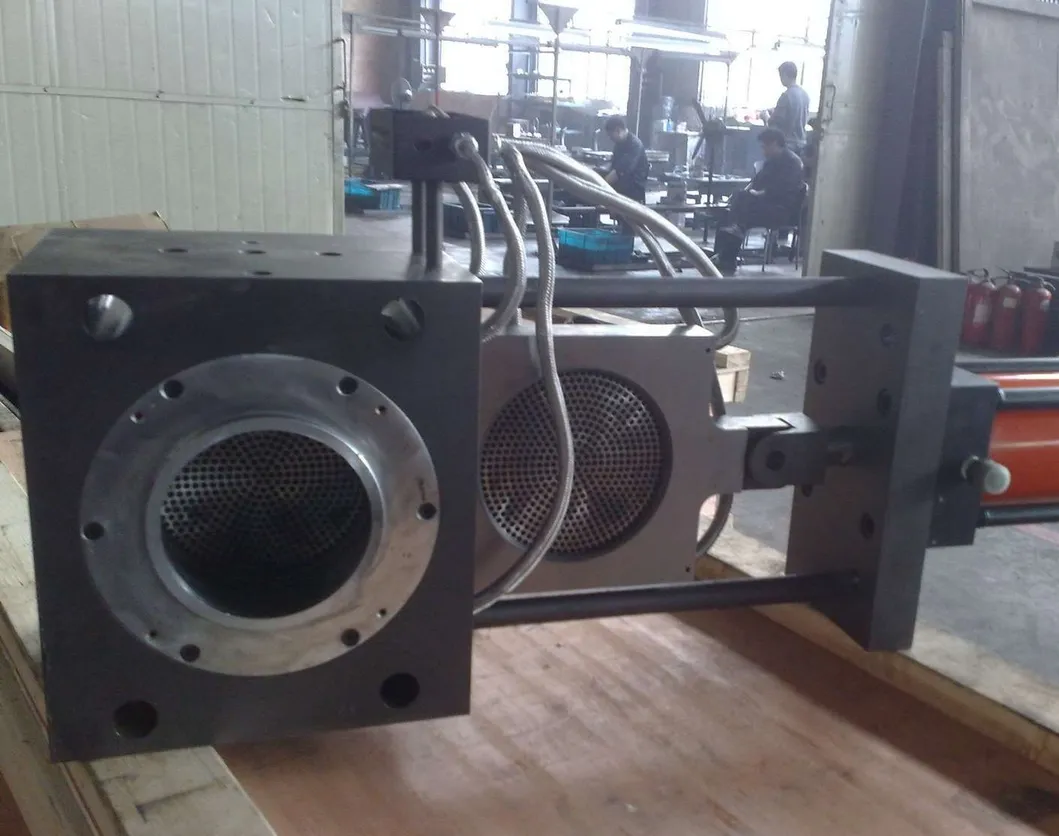

Double-station hydraulic screen changer
It adopts a dual-channel and dual-station design, and the die head is equipped with two sets of filtration systems. During normal production, the two networks operate in parallel to share the load. When replacing, switch to single network operation through hydraulic means, and the other network can be replaced without stopping the machine.


Cooling Rack

Aluminum-magnesium alloy cooling idlers ensure a long service life.

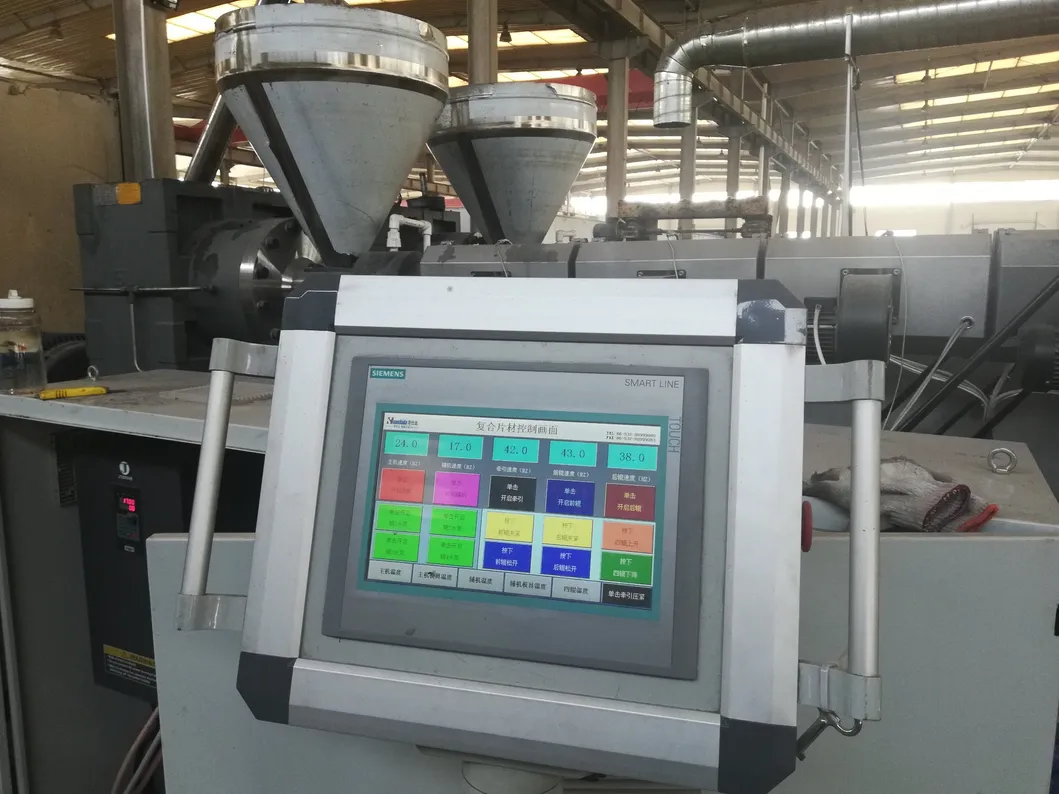

HMI Controlling System

Professional PLC control system, intelligent centralized control.
