Steel Pipe External Surface Rust Removal Anti Corrosion Coating Line Equipment

Product Description

Steel Pipe External Surface Rust Removal and Anti-Corrosion Coating Line Equipment

Name: Steel Pipe External Surface Rust Removal Anti Corrosion Coating Line Equipment
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: HSD 48-4200mm
Price: 200,000.00 USD
Availability: InStock

Basic Info.

Model NO.

HSD 48-4200mm

Type

Coating Production Line

Coating

Powder Coating

Substrate

Steel

Certification

CE, ISO, RoHS

Condition

New

Pipe Dia.

48-3000mm

Blasting

>2.5A

Fbe Thickness

200-800um

PE Thickness

2-3mm

Diameter Range

48-4200mm

Application

3PE 2PE Fbe Anticorrosion Coating

Transport Package

Plastic Film and Wooden Pallet

Specification

EN253, EN448, EN728, ISO1133, ISO8501-1

Trademark

HSD

Origin

Qingdao China

HS Code

8477209000

Production Capacity

30 Units/Year

Packaging & Delivery

Package Size

1000.00cm * 220.00cm * 180.00cm

Package Gross Weight

3000.000kg

Product Description

Steel Pipe External Surface Rust Removal and Anti-Corrosion Coating Line Equipment

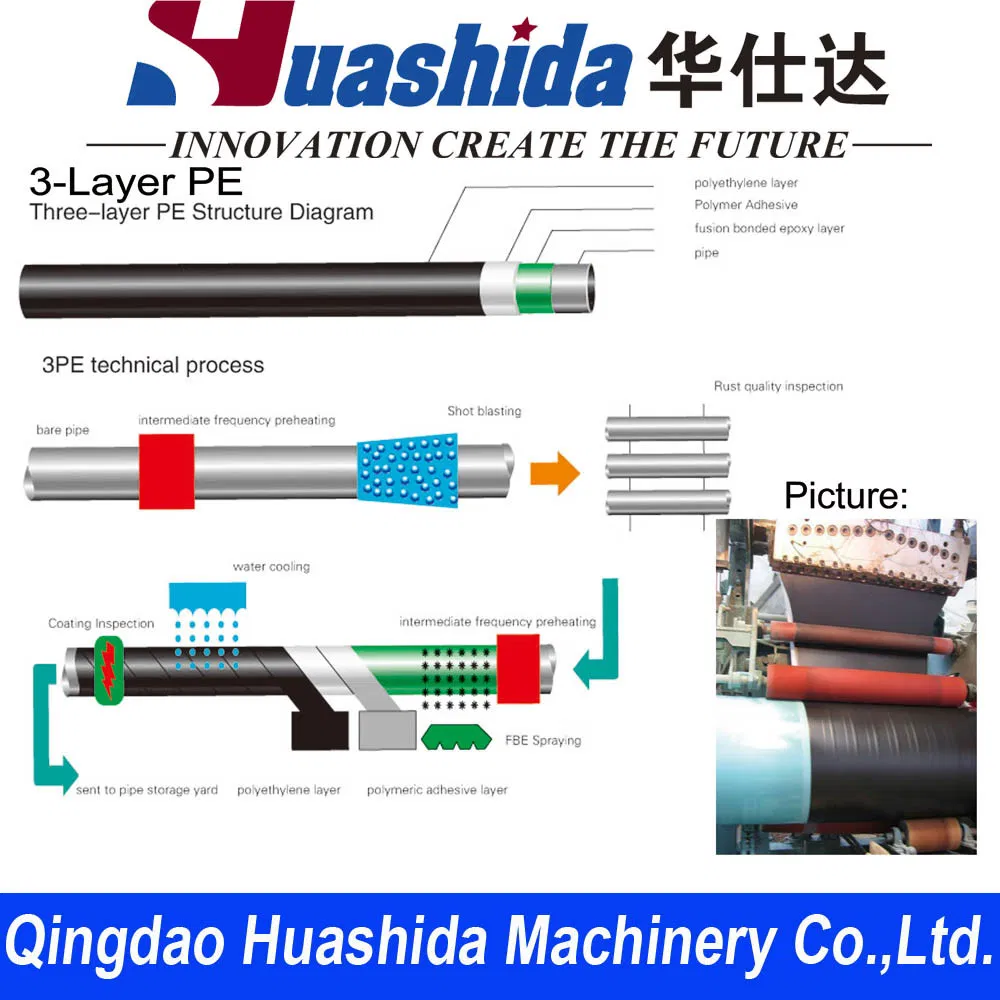

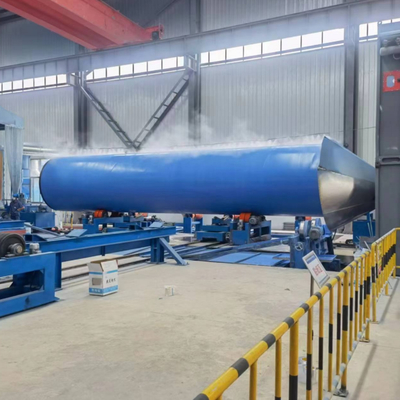

The Qingdao Huashida Steel Pipe External Surface Rust Removal and Anti-Corrosion Coating Line Equipment is designed to remove rust, mill scale and contaminants from the external surface of steel pipes, creating an anchor pattern for strong coating adhesion ;
apply multi-layer anti-corrosion coatings such as FBE, 2LPE/3LPE or 3PE, which can extend the pipe's service life from a few years up to 50 years ;
carry out the entire process-cleaning, heating, coating, curing and inspection-in one continuous, automated production line, ensuring uniform thickness and compliance with international standards .

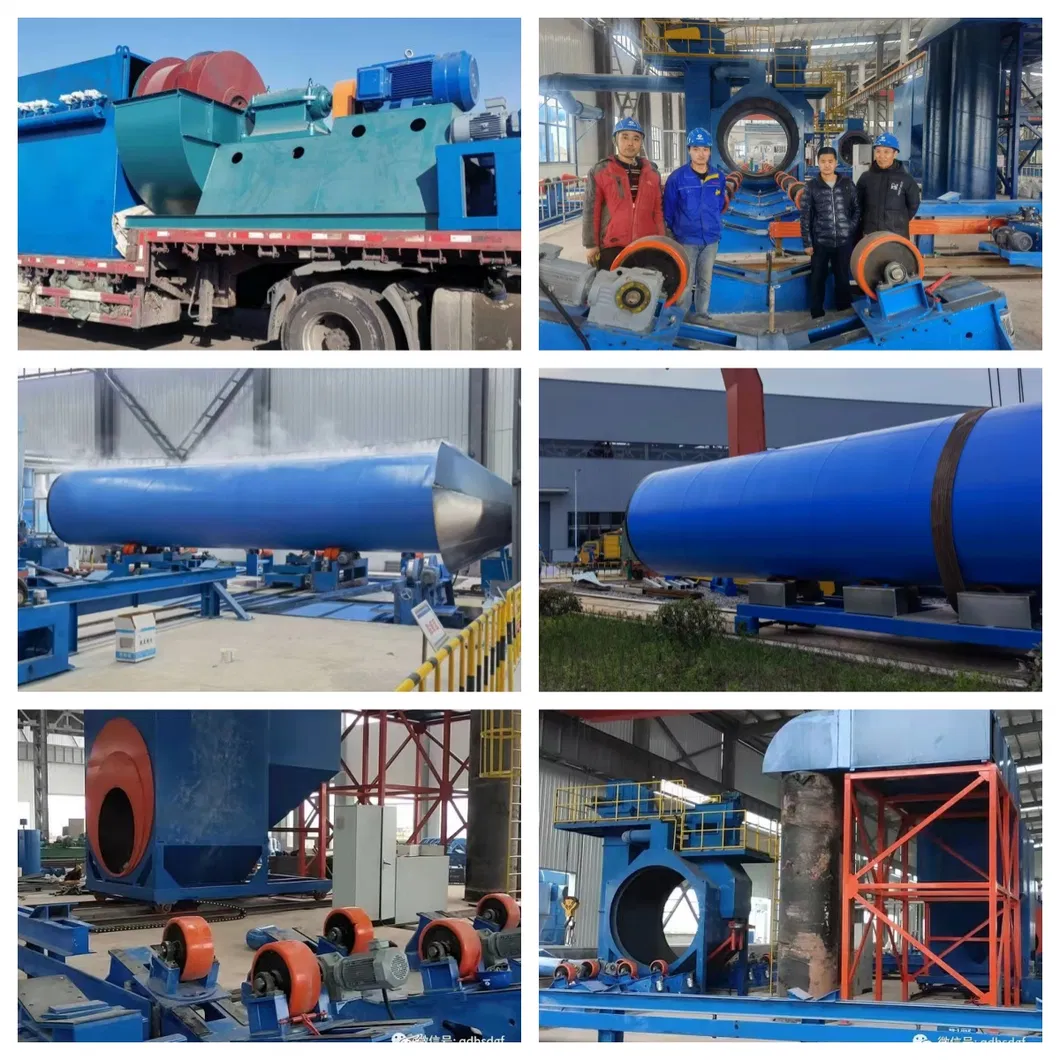

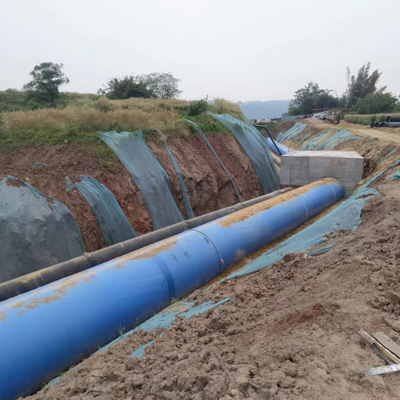

Steel Pipe External Surface Rust Removal Anti Corrosion Coating Line Equipment 0

Steel Pipe External Surface Rust Removal Anti Corrosion Coating Line Equipment 0

The Qingdao Huashida Steel Pipe External Surface Rust Removal and Anti-Corrosion Coating Line Equipment guarantees coating uniformity through the following integrated technologies and process controls:
1.Closed-Loop Speed Control
A displacement closed-loop system based on HMI + PLC continuously monitors and adjusts the steel pipe's advance speed using laser displacement sensors. This keeps the pipe's travel speed constant, eliminating the ±30 % thickness variation typical of open-loop systems and reducing it to about ±10 % .
2.High-Precision Electrostatic Spraying
The line employs high-voltage electrostatic spray guns (≈ 100 kV) combined with fluidized-bed powder supply. This delivers an even cloud of epoxy powder that is uniformly attracted to the grounded pipe surface, ensuring a consistent coating thickness regardless of pipe ovality or minor diameter changes .
3.In-Line Thickness Gauging & Feedback
After spraying, non-contact ultrasonic or eddy-current thickness gauges scan the full pipe circumference. Real-time data are fed back to the PLC, which automatically adjusts gun voltage, powder flow and conveyor speed to correct any deviations .
4.Controlled Pre-Heat Temperature
Medium-frequency induction heaters raise the pipe surface to the exact target temperature (typically 180 - 230 °C for FBE). Uniform heating guarantees even powder gel time and flow, preventing thick or thin spots .
5.Synchronised Gun & Pipe Motion
For large-diameter or curved pipes, a coaxial rotating winding device keeps the spray guns at a constant stand-off distance and relative speed, maintaining uniform coverage over elbows or reducers .
Together, these measures ensure that every square centimetre of the pipe receives a coating thickness within ±10 % of specification, meeting ISO 21809, DIN 30670 or customer-specific requirements.

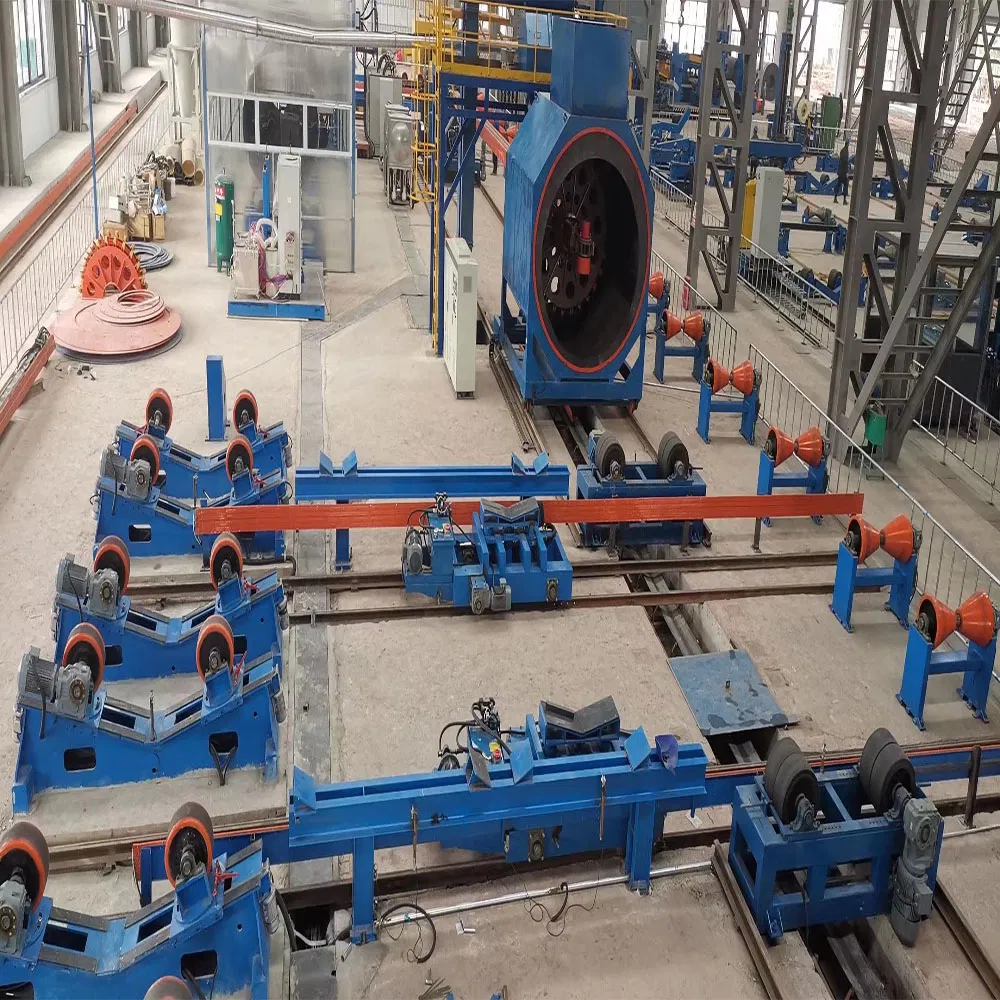

Qingdao Huashida's line copes with **any diameter from Φ48 mm up to Φ2 500 mm (and even 4 200 mm on the large-pipe version)** through a set of quick-change, self-centering modules:

1. Expandable-centre roller conveyors
   • Driven rollers whose centres open/close hydraulically in seconds, so the pipe axis always remains on the same height and centre-line regardless of OD .
   • A single operator can change sizes in < 3 min; no manual shimming or spacer blocks.

2. Variable-blast rooms & spray booths
   • The shot-blast chamber has vertically and horizontally adjustable blast wheels; wheel positions follow the new diameter automatically after the operator keys it into the HMI .
   • The epoxy-powder spray ring uses motorised telescopic arms that keep the gun-to-surface distance constant (≈ 150 mm) for pipes from 48 mm to 2 500 mm.

3. Induction-heating coil sizing
   • Medium-frequency coils are built in split, spring-loaded segments; the coil diameter is motor-adjusted to sit 20-30 mm clear of the new pipe surface, ensuring uniform pre-heat .

4. Software recipe management
   • Once a pipe spec (diameter, wall, coating type) is selected, the PLC downloads the matching roller spacing, blast-wheel angle, gun pattern, line speed and coil power settings, guaranteeing repeatability.

Thus the same production line can run small 2-inch line pipe today and 100-inch offshore trunk pipe tomorrow without mechanical re-builds, only parameter recall and a quick roller/coil adjustment .

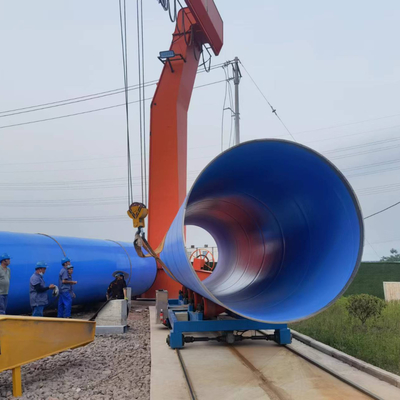

Steel Pipe External Surface Rust Removal Anti Corrosion Coating Line Equipment 1

Steel Pipe External Surface Rust Removal Anti Corrosion Coating Line Equipment 1

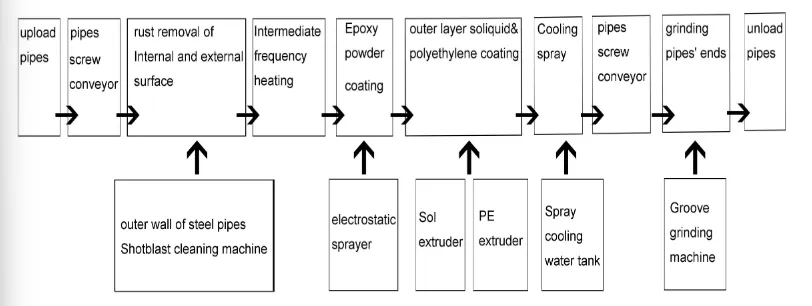

production line technical parameters
1.Pipe upload flatform
2.Pipe upload flatform
3. hydraulic station
4.Derusting spiral transmission line
5.Synchronous dynamic spiral single-frame
6.The lower type shot blasting machine
7.Dedusting system
8.transition platform line
9.PE Spiral transmission line
10.Intermediate frequency heater
11.Dynamic high temperature roller
12.Epoxy powder coating system
13.The powder room, vulcanization barrel
14.two stage powder recovery device
15.Automatic vacuum feeding machine
16.SJ-180/30 Extruder
17.SJ-65/30 extruder
18.Extruder moving mechanism
19.Hot melt extrusion die head
20.PE sheet extrusion die mould
21.Hot melt adhesive PE coating device
22.Environmental protection ventilation system
23.cooling spray system
24.The cooling splash-prevented plastic curtain-wall
25.The cooling splash-prevented plastic curtain-wall
26.Pipe beveling grinding machine
27.Dedusting system
28.Hydraulic lifting rotary pipe device
29.The electrical control system of 3PE steel pipes production line
