Steel Pipe Inner Wall Sand Blasting Rust Removal Line

1
MOQ
US$100,000.00 - 500,000.00
Price
Steel Pipe Inner Wall Sand Blasting Rust Removal Line
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Coating Production Line
Coating: Powder Coating
Substrate: Steel
Function: Steel Pipe Sand Blasting
Highlight:

steel pipe sand blasting machine

,

3LPE coating rust removal line

,

inner wall pipe blasting equipment
Basic Infomation
Place of Origin: QINGDAO,CHINA
Brand Name: HUASHIDA
Certification: CE, ISO, RoHS
Model Number: 50-4200MM
Payment & Shipping Terms
Packaging Details: Standard packaging
Delivery Time: 60DAYS
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 30 Units/Year
Product Description
Steel Pipe Inner Wall Sand Blasting Rust Removal Production Line
Product Specifications
Type Coating Production Line
Coating Powder Coating
Substrate Steel
Function Steel Pipe Sand Blasting
Product Overview

Our steel pipe inner wall sand blasting rust removal production line uses compressed air to propel solid particles at high velocity against the steel pipe surface, creating a smooth, clean finish. This specialized system is designed for removing rust from the internal walls of steel pipes with diameters under 300mm, primarily serving the petroleum, chemical, and natural gas pipeline industries.

Steel Pipe Inner Wall Sand Blasting Rust Removal Line 0 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 1 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 2 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 3
Technical Parameters
  • Steel pipe diameter range: 60mm-325mm
  • Blasting capacity: ≤100m²/h
  • Cleaning class: Sa 2.5
  • Used materials: Steel grit, steel shot, steel wire section
  • Main equipment includes:
    • Internal grit-blasting trolley

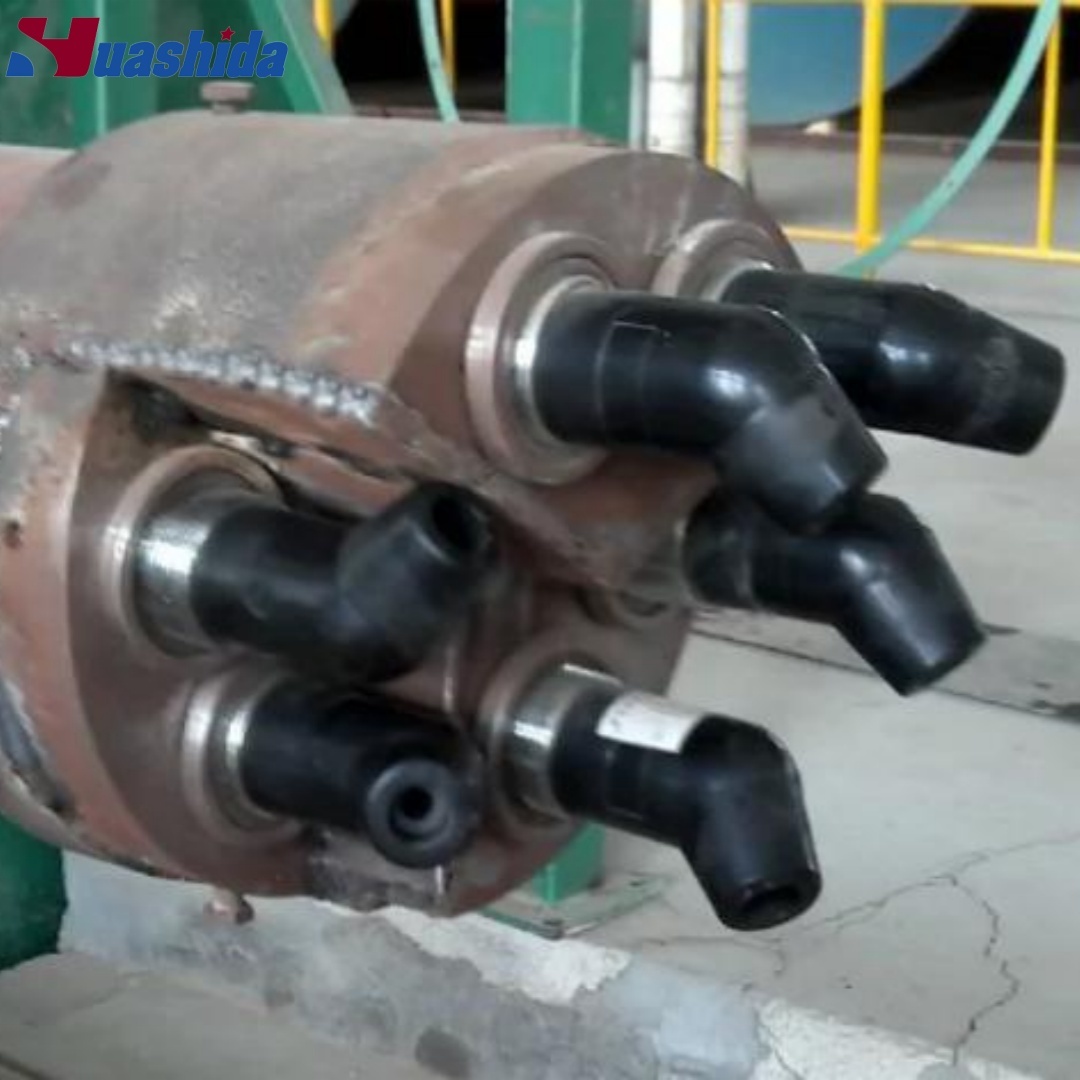

    • Support trolley and blasting gun head
    • Steel tube inner support
    • Lifting and turning machine
    • Grit collecting chamber and return conveyor belt

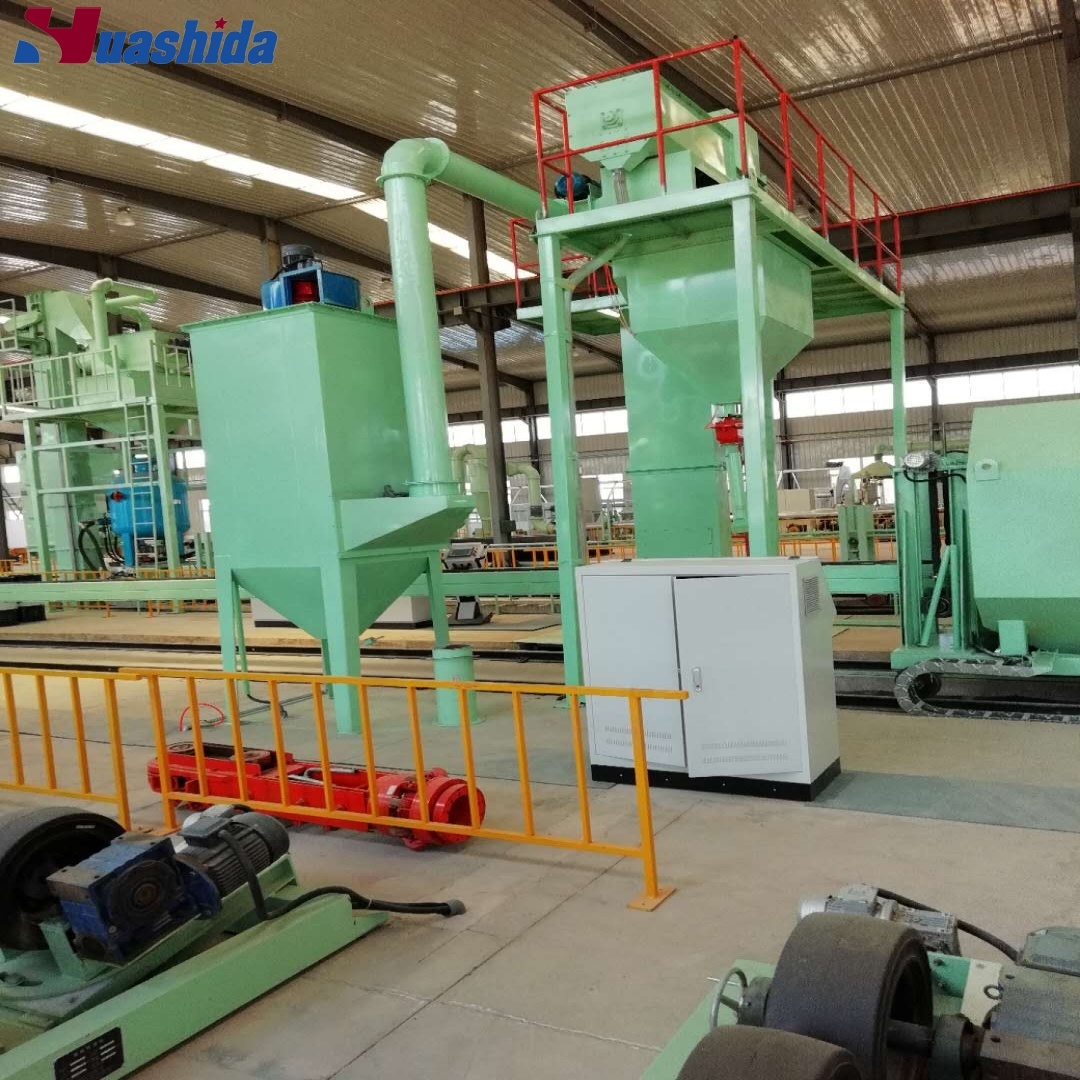

    • Dust extraction system (cyclone and filter cartridge)
    • Electrical control system and air compressor

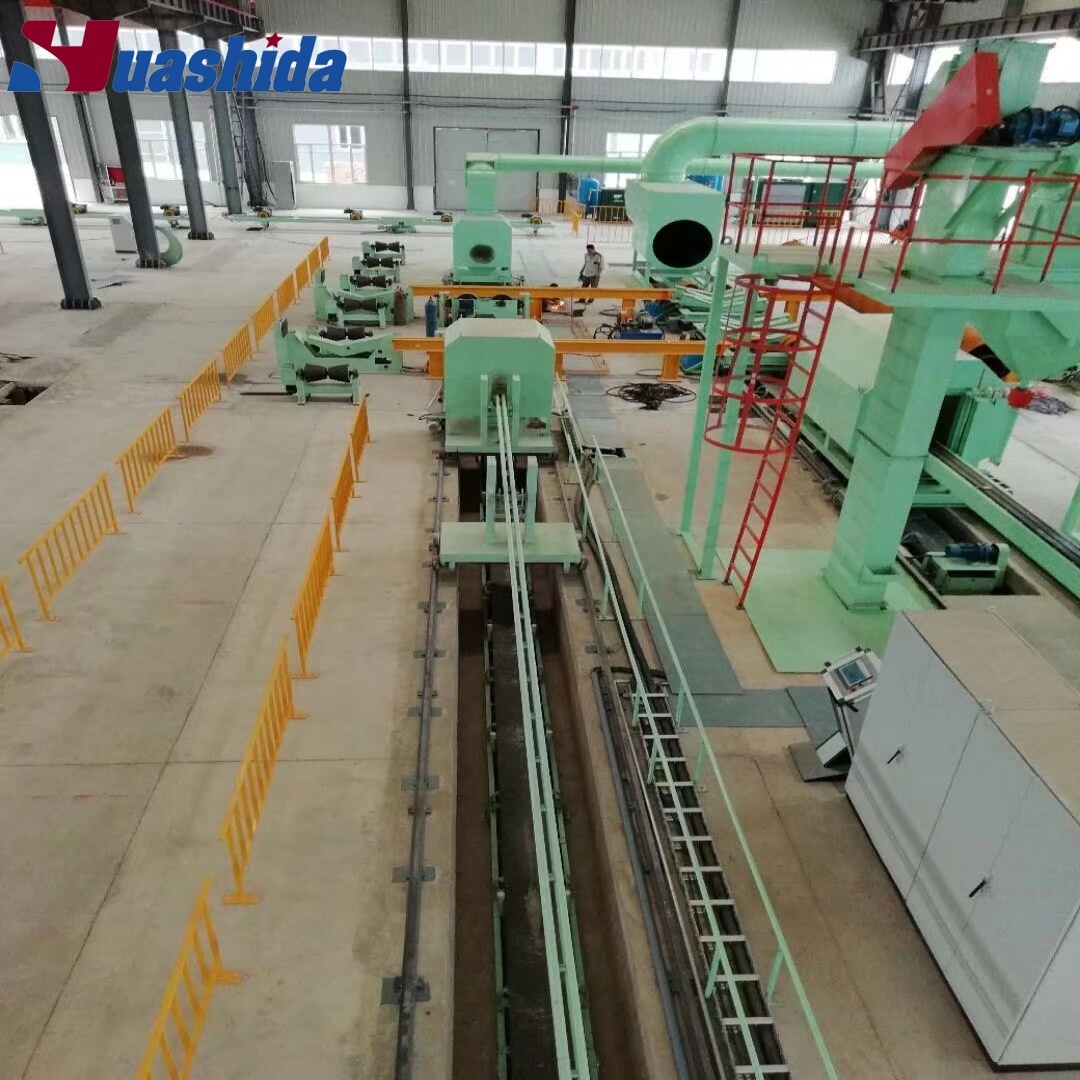

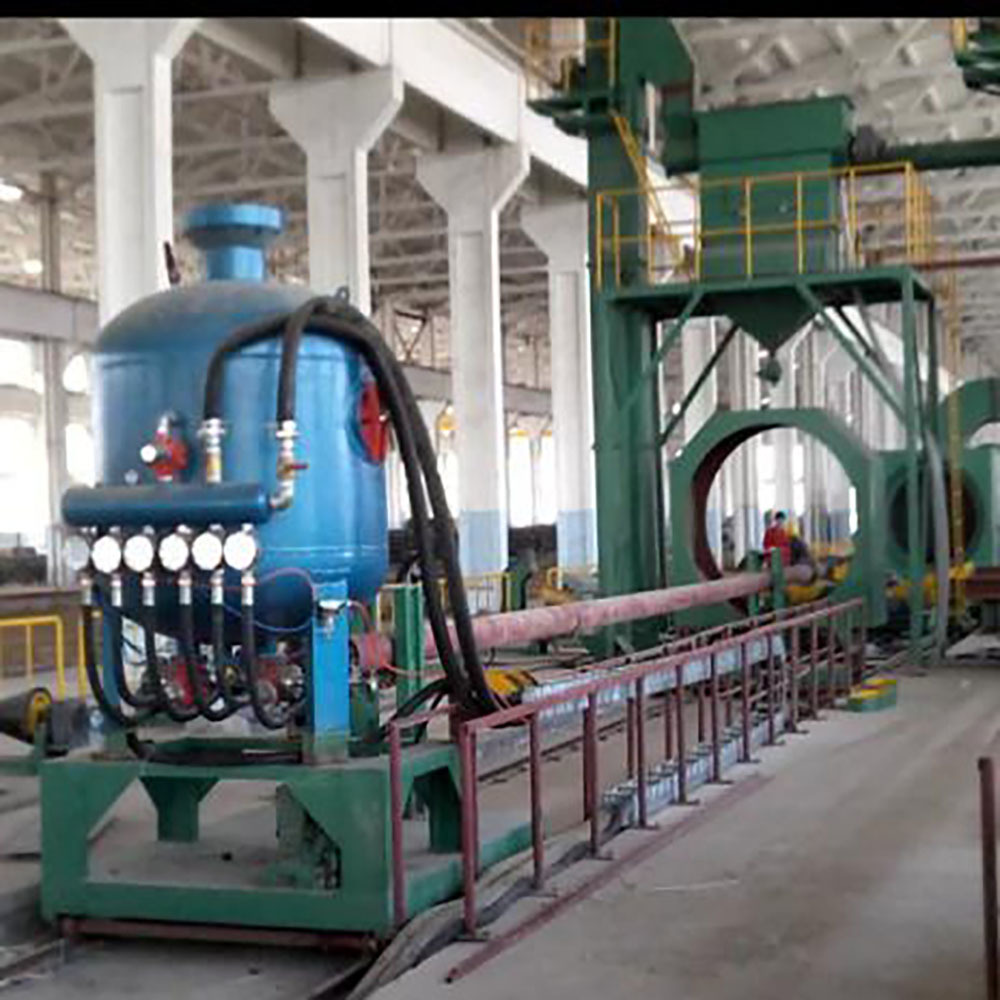

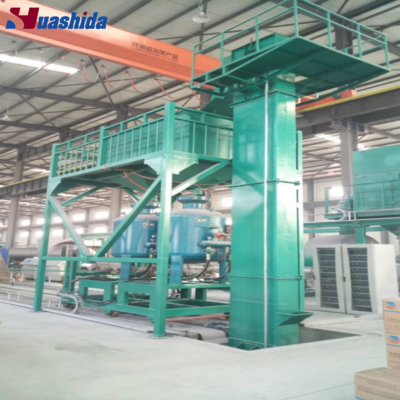

Detailed Equipment Photos
Steel Pipe Inner Wall Sand Blasting Rust Removal Line 4 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 5 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 6 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 7 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 8 Steel Pipe Inner Wall Sand Blasting Rust Removal Line 9
About Qingdao Huashida Machinery Co., LTD

Founded in 2003, we are a global developer and manufacturer of plastic extrusion equipment, serving customers across Europe, America, the Middle East, and Southeast Asia. We welcome visits to our factory to discuss potential cooperation.

Our Product Range Includes:
  • HDPE Jacket Pipe Extrusion Line
  • 3LPE Steel Pipe Anti-Corrosion Coating Line
  • Hollow Wall Spiral Pipe Production Line
  • PE/PP Geo Membrane Production Line
  • PE/PP Sheet Board Extrusion Line
  • Rubber Foam Insulation Pipe Production Line
  • Radiation Cross-Linked PE Heat Shrinkable Sleeve
  • Electro Fusion Sleeve
  • Portable Hand Extrusion Welder
  • HDPE Welding Wire Welder Rods

We also manufacture specialized components including heat shrinkable sleeves, electro fusion sleeves, and plastic welders, widely used for pipe joints and sealing applications in various industries.
