Name: PE Series Vacuum Calibration Pre-Insulated Pipe Extrusion Line
Brand: Qingdao Huashida Machinery Co., Ltd.
Price: 100,000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Highlight:

PE series pre-insulated pipe extrusion line

vacuum calibration pipe production line

pre-insulated pipe extrusion machine with warranty

Basic Infomation

Place of Origin: China

Brand Name: Huashida

Certification: CE, Rohs，TUV

Payment & Shipping Terms

Packaging Details: Standard packaging

Delivery Time: 60-90 days

Payment Terms: T/T,D/A,L/C

Supply Ability: 30 sets a year

Gallery

PE Series Vacuum Calibration Pre-Insulated Pipe Extrusion Line

Product Description

The PE series pre-insulated pipe extrusion line, designed by Qingdao Huashida Machinery Co., Ltd. with advanced German extrusion technology, features an integrated system for extrusion, vacuum calibration, cooling, pulling, cutting, and stacking. It delivers high automation, large extrusion capacity, stable performance, and long service life.

Compared with internal pressure calibration methods, the vacuum calibration method offers superior pipe stiffness, pressure resistance, and surface smoothness, making it the most advanced and popular technology in the world.

PE Series Vacuum Calibration Pre-Insulated Pipe Extrusion Line 0

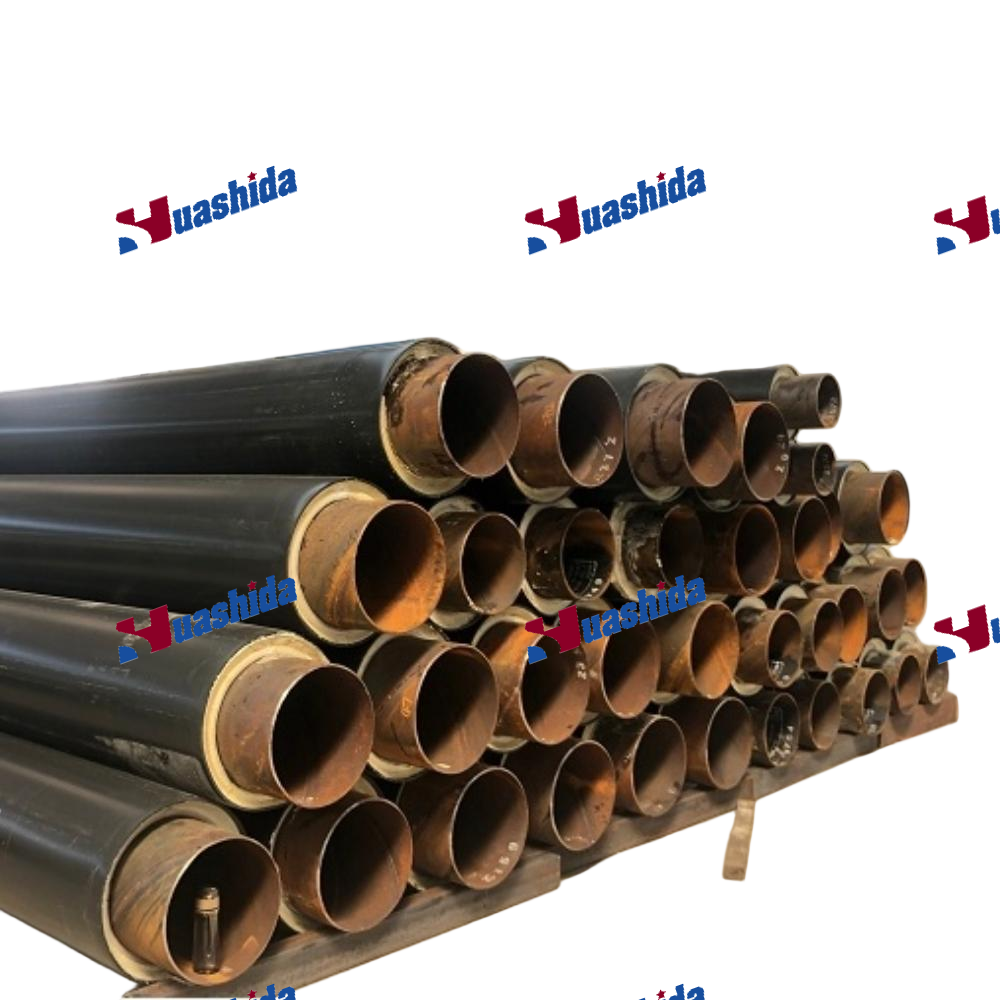

This production line is specially designed for manufacturing the outer HDPE casing pipes used in PUF (polyurethane foam) pre-insulated pipelines, widely applied in energy-saving heating networks and trenchless pipeline laying. PE Series Vacuum Calibration Pre-Insulated Pipe Extrusion Line 1

Working pressure: up to 1.6 MPa

Water temperature: up to 130 °C (403 K)

Short-term temperature peak: 150 °C (423 K)

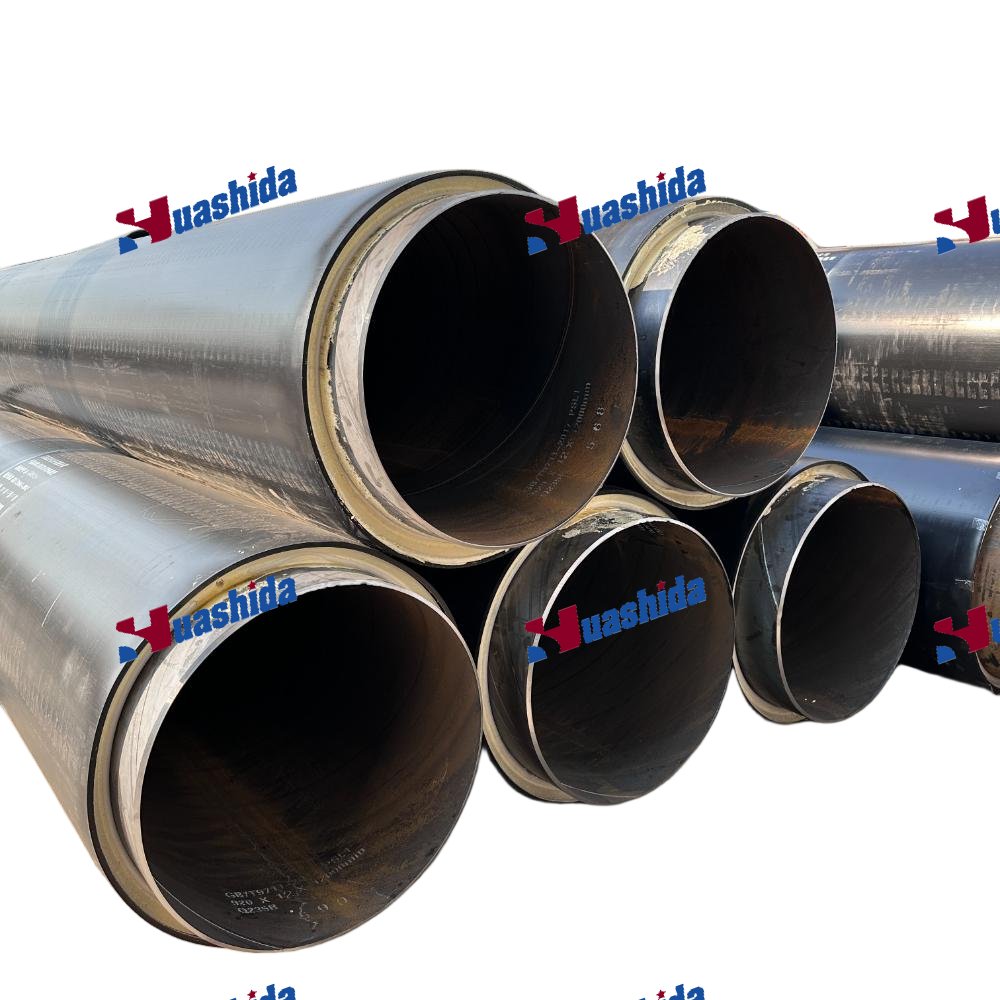

Pipe Structure (Pipe-in-Pipe Design)

Inner carrier pipe: Steel or galvanized steel

Middle layer: Polyurethane foam thermal insulation

Outer jacket pipe: High-density polyethylene (HDPE) for underground installation or galvanized steel sheet for above-ground installation

	PE-365/760	PE-420/960	PE-850/1372	PE-960/1680
Main extruder	SJ-90/33	SJ-90/33	SJ-120/33	SJ-150/33
Pipe diameter (mm)	Φ365-960	Φ420-960	Φ850-1372	Φ960-1680
capacity (kg/h)	550-700	550-700	700-900	800-1200
Installed power (kw)	360	380	440	580
Length (m)	35	36	40	48

Higher reliability of heating pipeline systems

Remote condition monitoring capability for early leak detection

Accident prevention by timely maintenance

Long service life with excellent mechanical strength and corrosion resistance PE Series Vacuum Calibration Pre-Insulated Pipe Extrusion Line 2

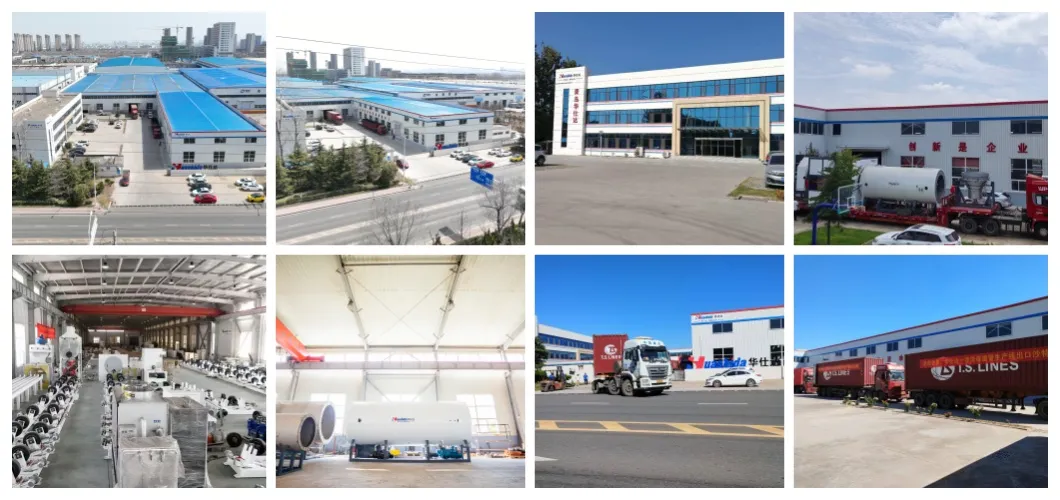

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.

Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

PE Series Vacuum Calibration Pre-Insulated Pipe Extrusion Line 3
Our team

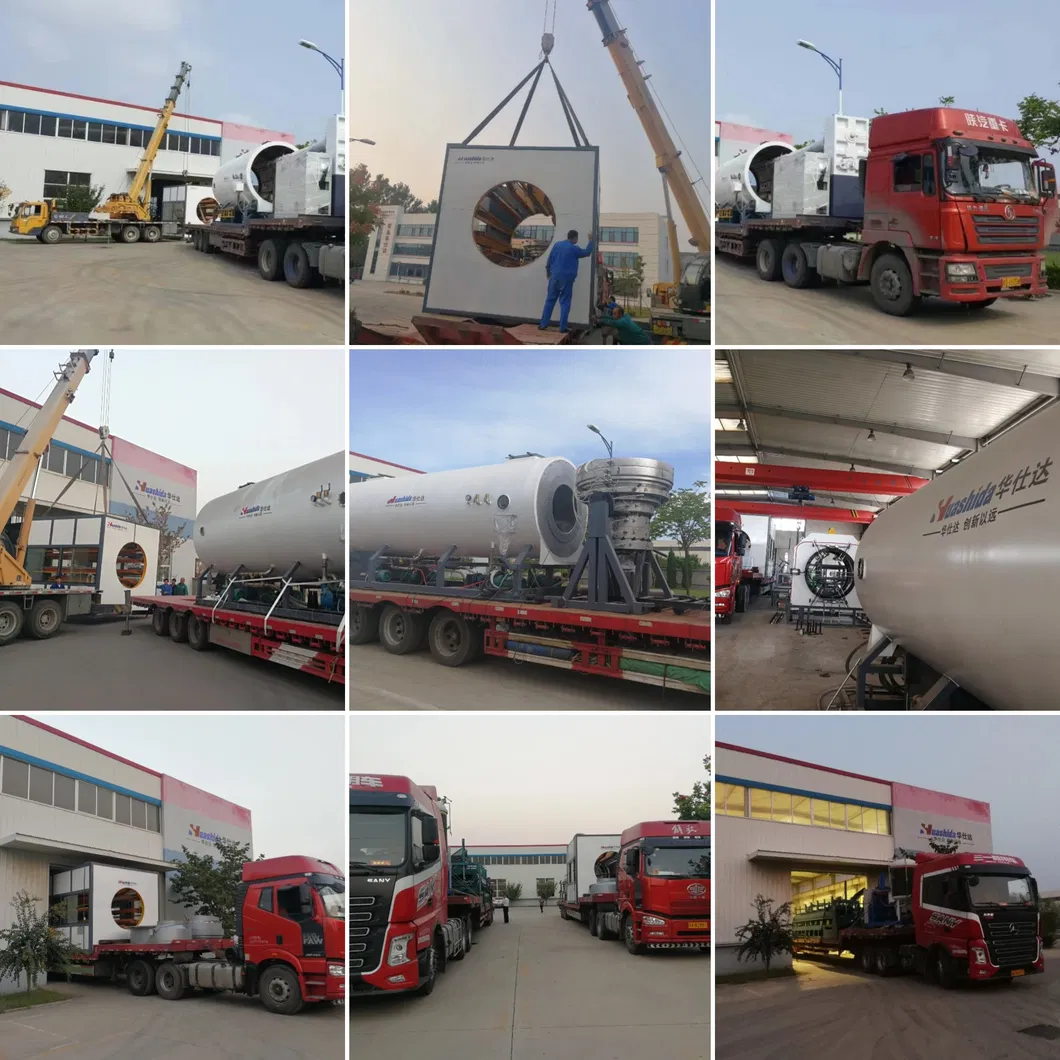

Delivery

Exhibition

Certifications
