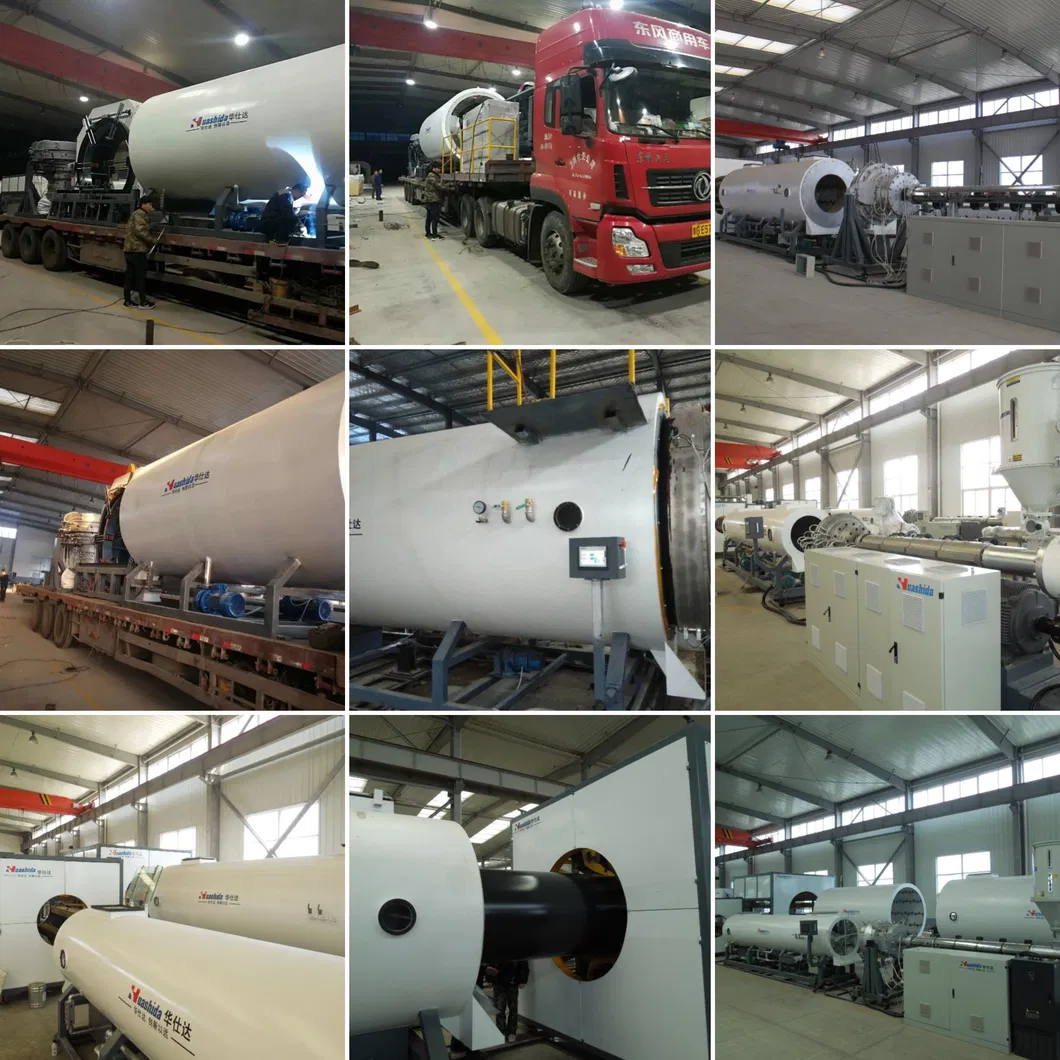

PE Series Pre-Insulated Pipe Extrusion Line with Vacuum Calibration

Working Pressure: Up to 1.6 MPa
Water Temperature: Up to 403 K (130 °C), with short-term increases up to 423 K (150 °C)
Structure

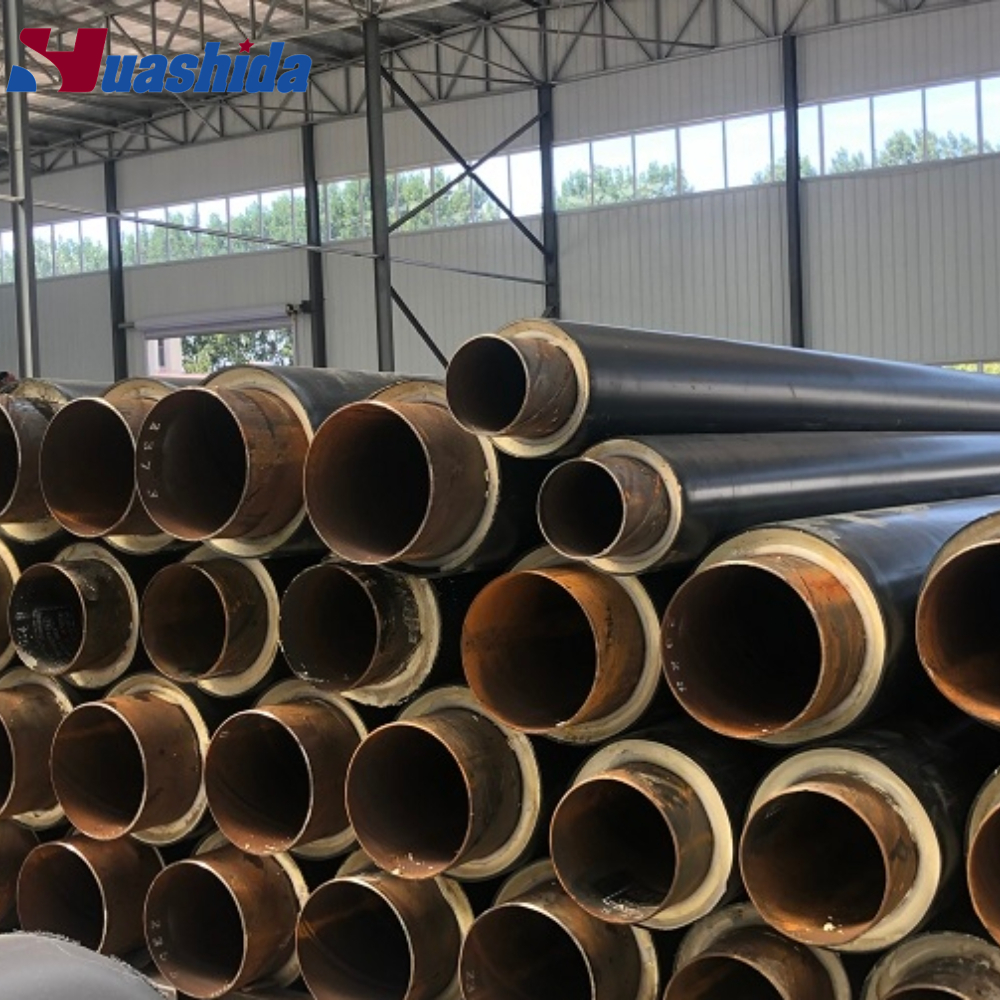

The PUF insulation system consists of a rigid "pipe-in-pipe" structure, which includes:

Carrier Pipe: Made of steel or galvanized steel
Insulation Layer: Rigid polyurethane foam

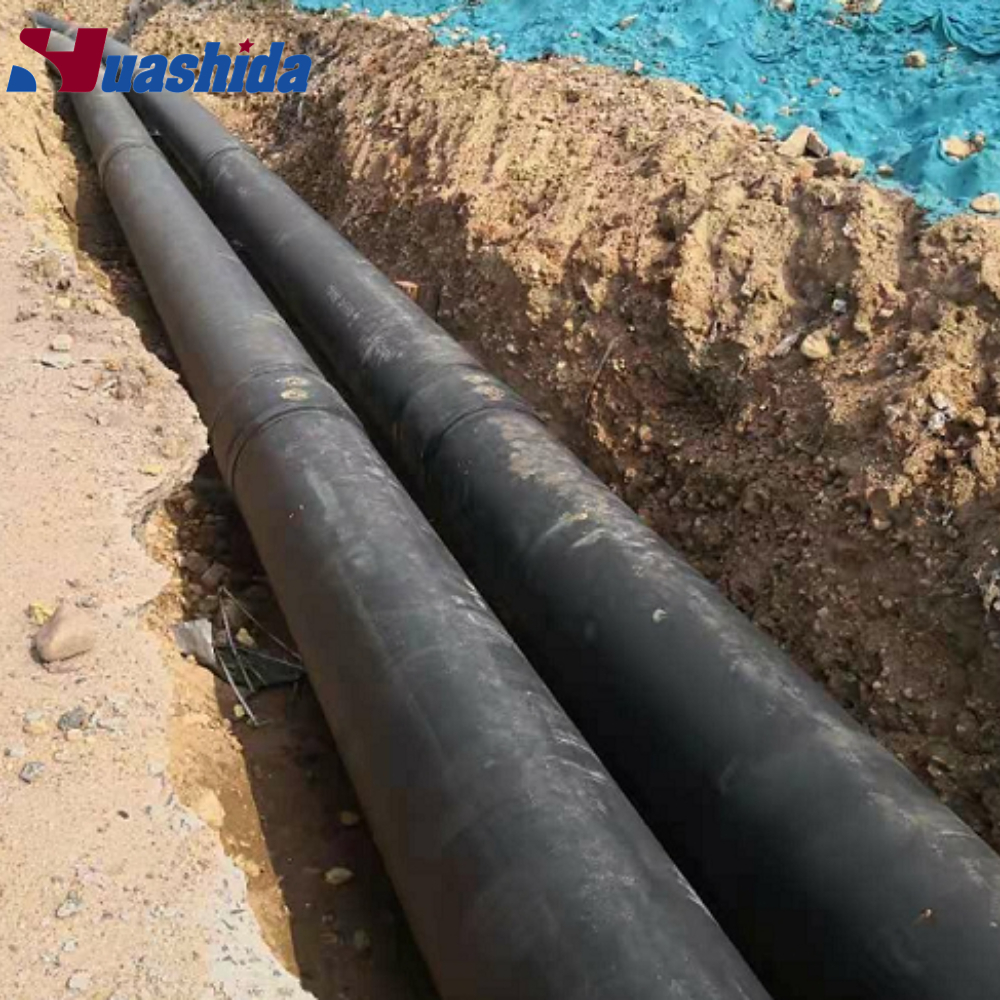

Outer Jacket: High-density polyethylene for underground installation or galvanized steel for above-ground use
Rigidity and Performance
The rigidity of the system is enhanced by strong connections between the steel pipe, polyurethane insulation, and jacket pipe. The pre-shot blast or blast cleaning of the steel pipe surface optimizes the performance of the polyurethane insulation and the corona surface of the polyethylene shell.

Increased Reliability: The PUF insulation system significantly enhances the reliability of the pipeline.
Remote Condition Monitoring: Enables operational availability and monitoring of the PUF insulation, allowing for early detection and repair of coolant leaks, thus preventing typical accidents associated with thermal networks of other designs.
This PE Series Pre-Insulated Pipe Extrusion Line represents a cutting-edge solution for energy-efficient pipeline systems, suitable for various applications in heating networks and beyond.

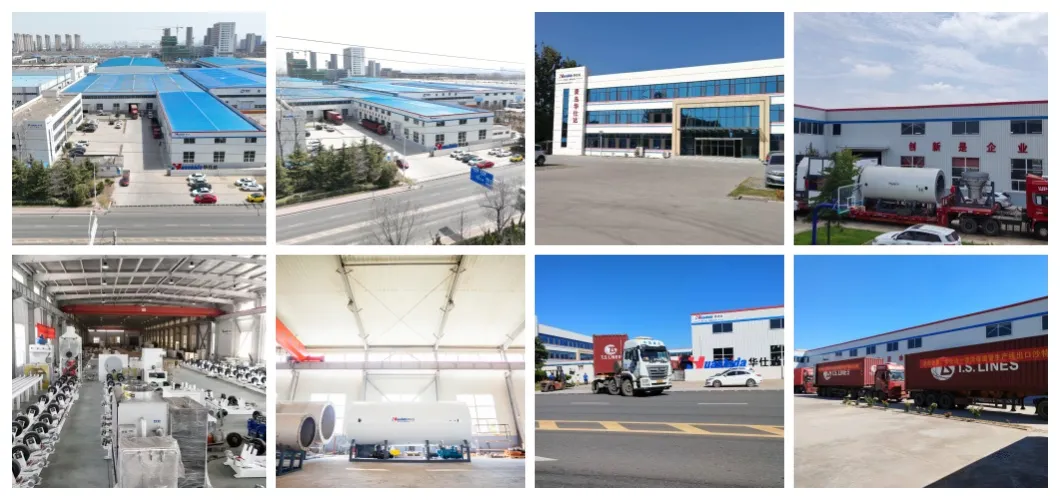

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
