Home /Products/Pre-Insulated Pipe Production Line/HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating

HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating

1
MOQ
US$200,000.00 - 1,000,000.00
Price
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating
Features Gallery Product Description Request A Quote
Features
Specifications
Product Type: Plastic Pipe
Screw: Single-Screw
Application: For Producing Pre-Insulated Pipe Jacket
Specification: Vacuum Calibration System
Assembly Structure: Separate Type Extruder
Basic Infomation
Place of Origin: QINGDAO ,CHINA
Brand Name: HUASHIDA
Certification: CE, ISO9001:2008
Model Number: 110-2200MM
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 60DAYS
Payment Terms: L/C,Western Union,T/T,MoneyGram
Supply Ability: 100 Unit/Year
Product Description

HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating

Product Description

Pipe diameter range: 110-2200mm

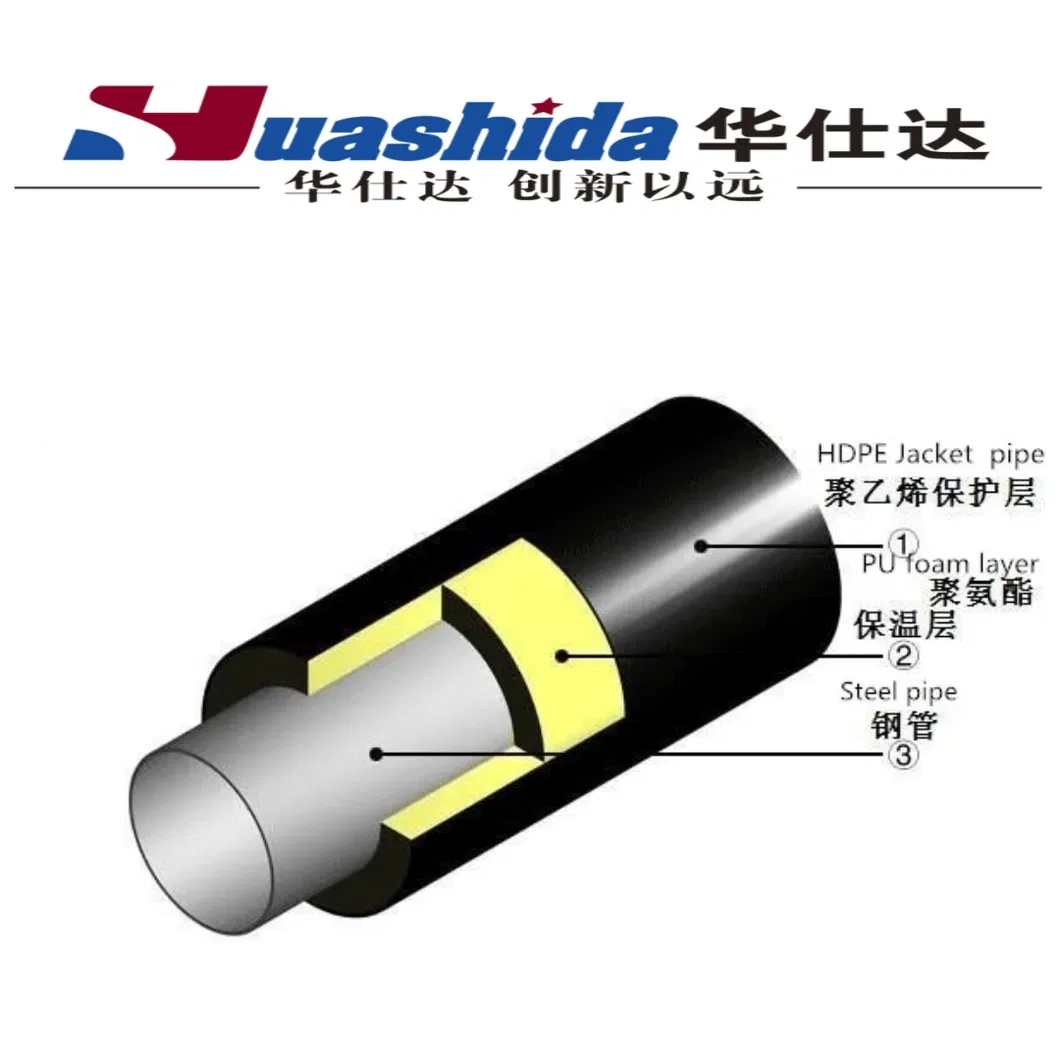

HDPE Jacket Pipe Extrusion Line is high-efficient with high speed and energy saving for producing HDPE thin wall pipe, which is used as a protective cover of  PU foam thermal Pre-insulated Pipe according to international standard. It primarily consists of a core steel pipe, a polyurethane (PU) foam insulation layer, and a protective plastic outer casing, among other components.

Key Features:
Utilizes a vacuum calibrating technique.
Ensures smooth internal and external walls.
Offers a long service life with excellent anti-corrosion properties.
High-efficiency extruder gives larger output, stable performance.
For example
SJ-75/33---250-350kg/h
SJ-120/33---700-900kg/h
SJ-150/33---800-1200kg/h


HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 0
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 1



Pipe Usage
HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.

Product Parameters


---The extrusion line comprise equipment and devices as below,
1set Vacuum loader
1set Hopper dryer
1set High-efficiency single screw extruder
1set 25/25 single screw extruder for mark line
1set Vacuum calibration table
1set Water spraying tank
1set Hauling machine
1set Cutting machine
1set Stacker


Performance and advantages

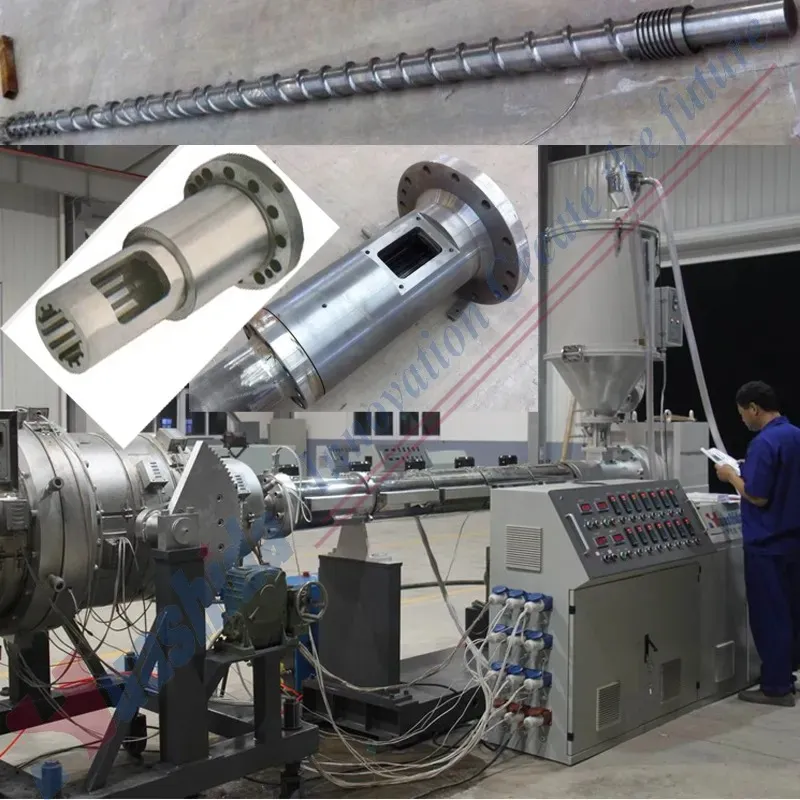

 High-efficiency single screw extruder
The screw is with barrier & mixing head; the barrel is a new model with slotting (channel). Both guarantee the good jellification, large output and stable performance of the extruder.

HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 2

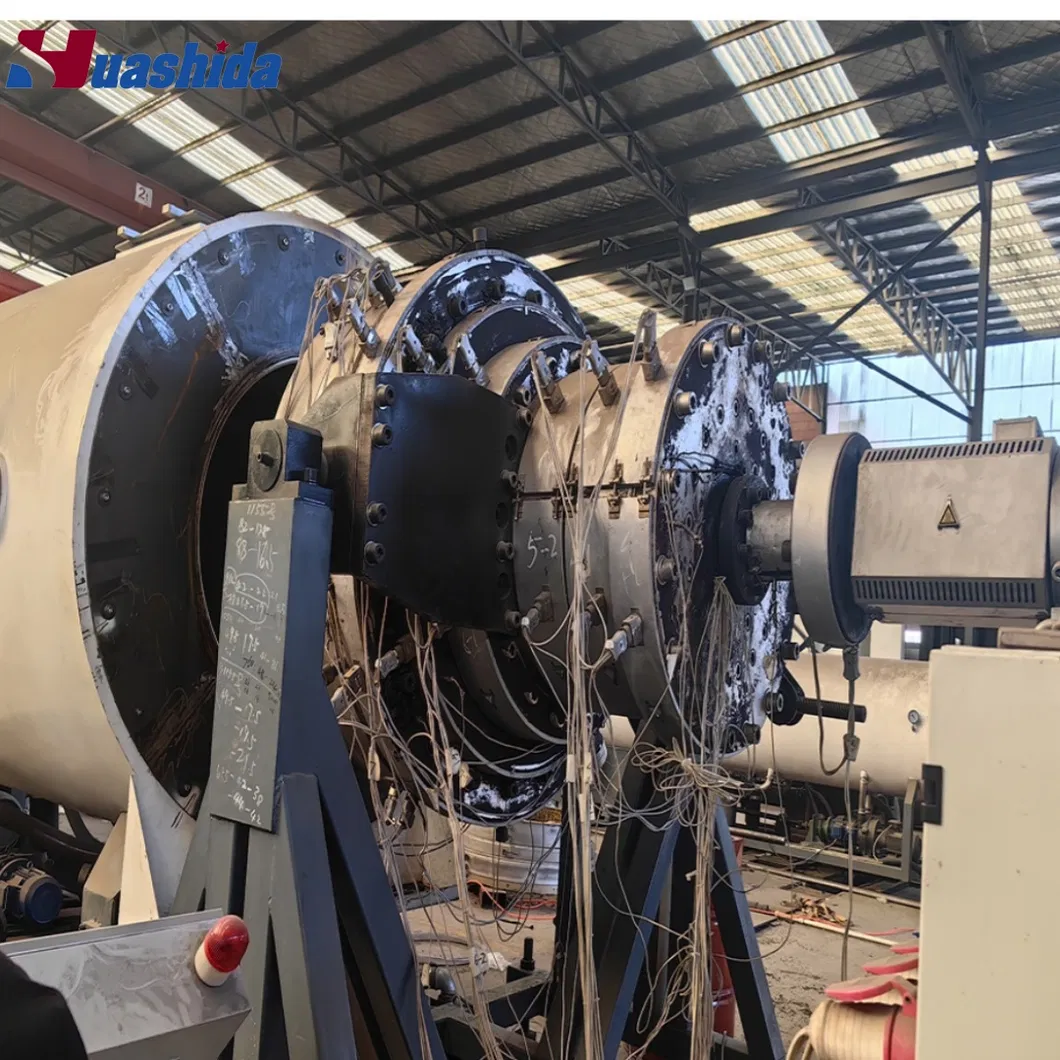

Die-Head
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings.

HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 3

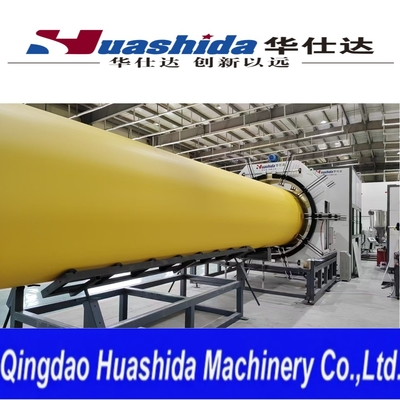

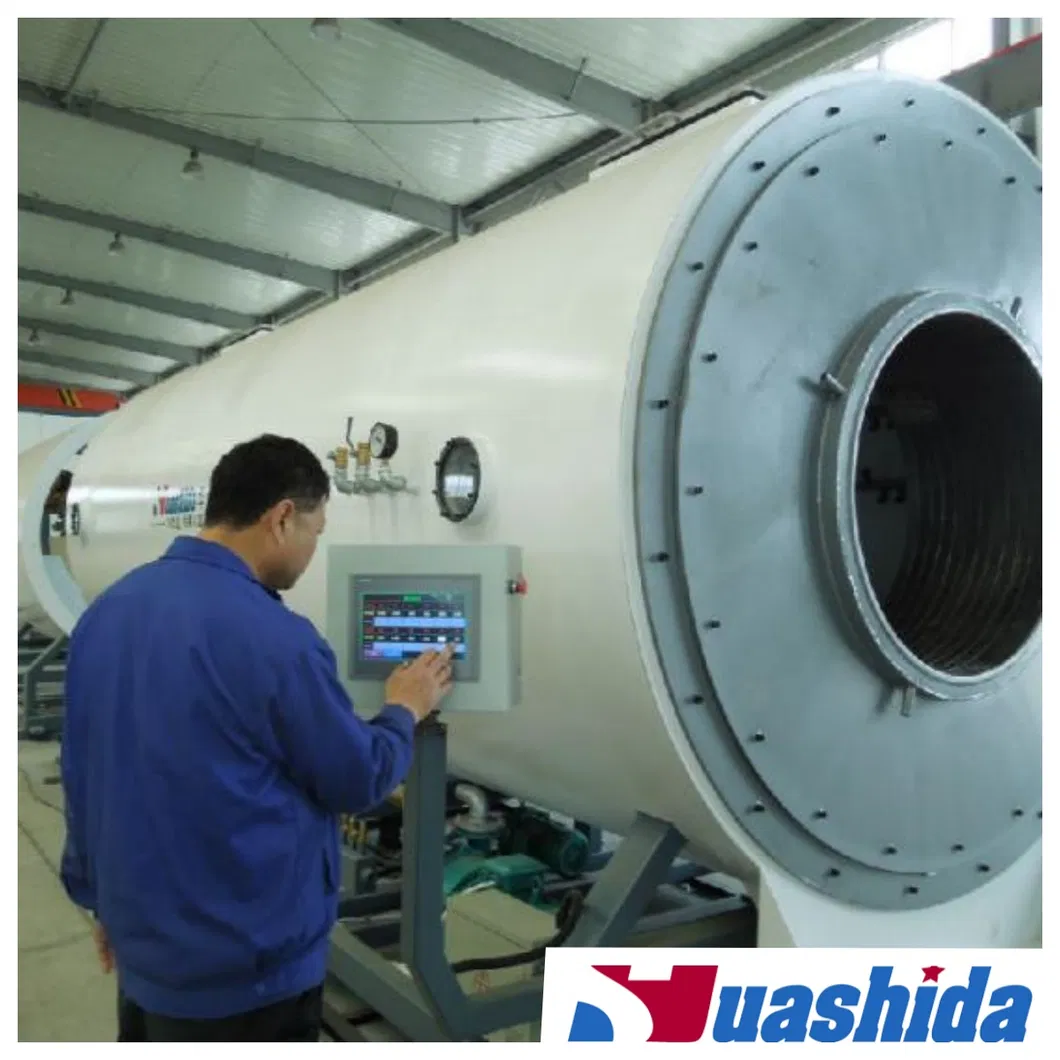

Vacuum Calibration Tank
The vacuum calibration tank is mainly composed of a frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 4

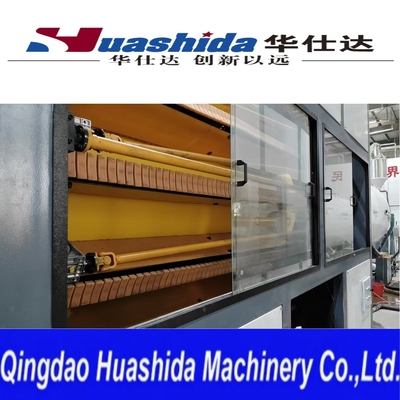

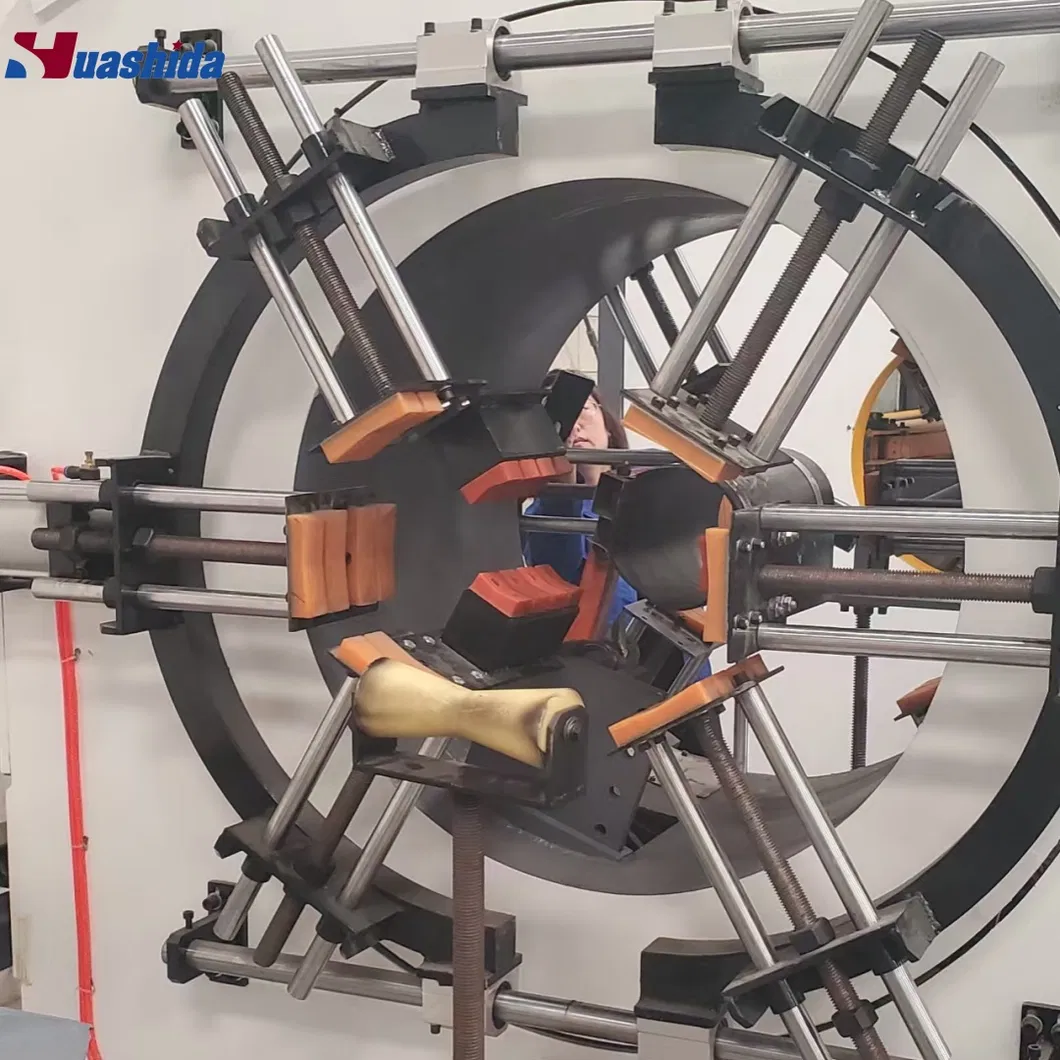

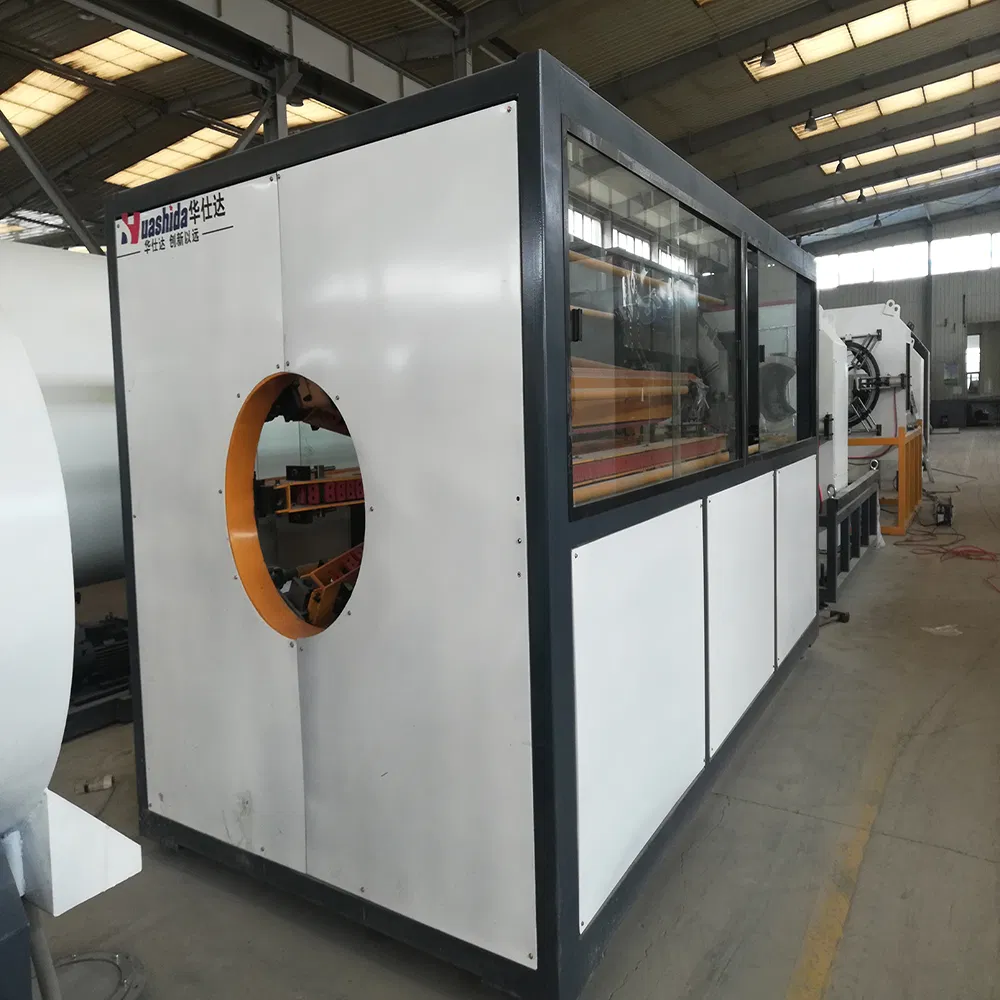

Haul-off Machine
The haul-off machine is mainly composed of a driving device, track, clamping structure, adjusting system, side plate and foundation bed. Haul-off caterpillars are driven by AC motor with frequency conversion control to adapt to different extrusion speeds.
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 5
Chipless cutting
It adopts the blade punching principle to realize no-dust cutting.

HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 6

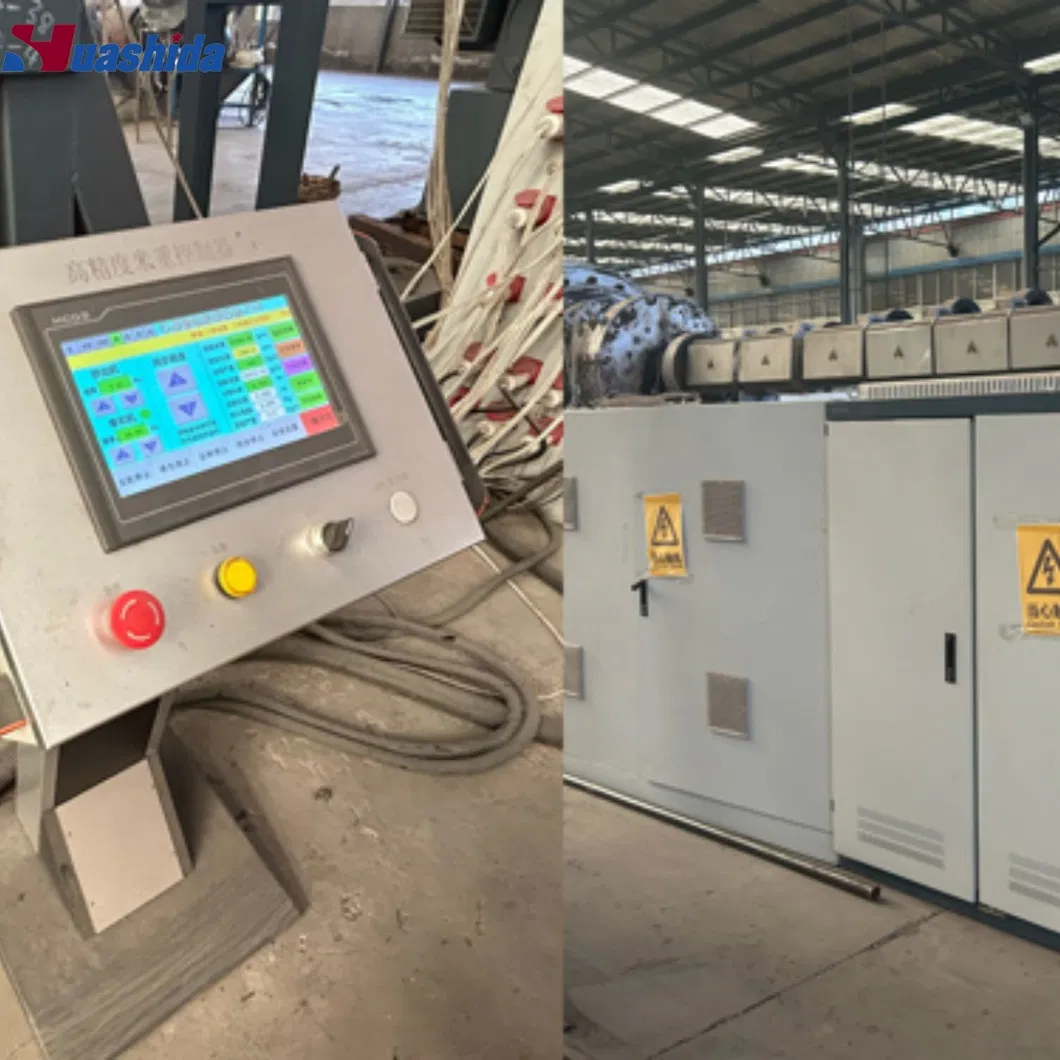

Control system
ABB frequency converter or EUROTHERM speed controller
Japan RKC temperature controller
SIEMENS AC contactors
A controlling system can be designed according to customers' requirements.
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 7

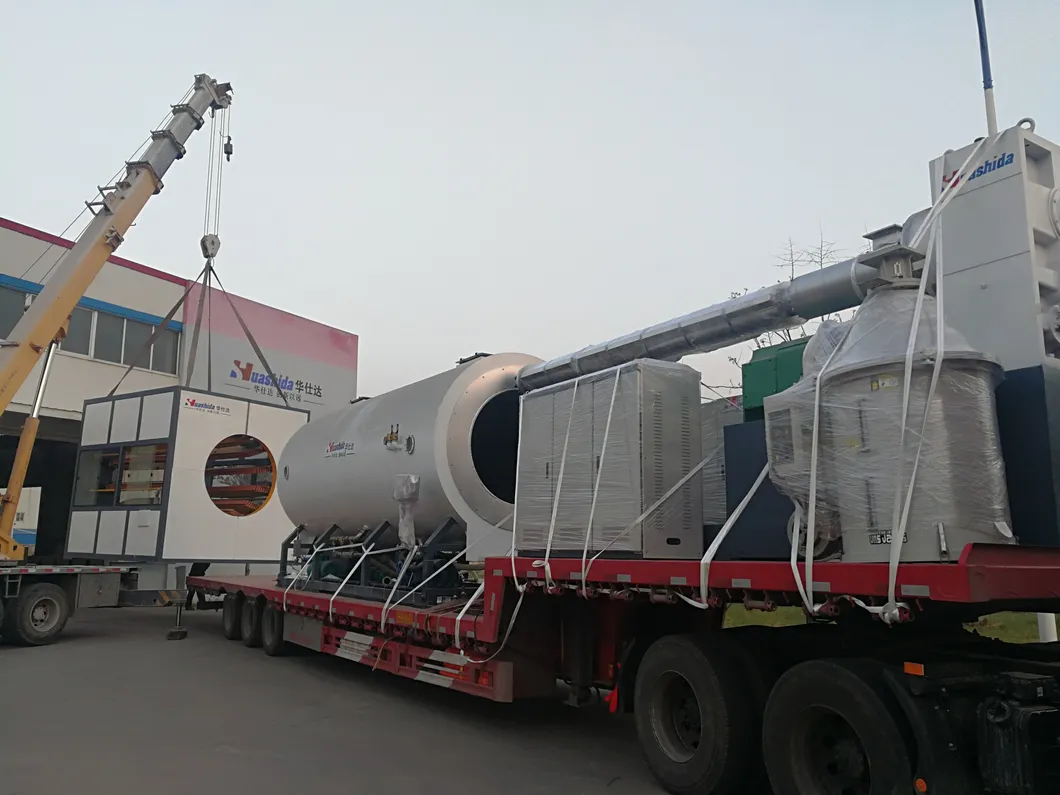

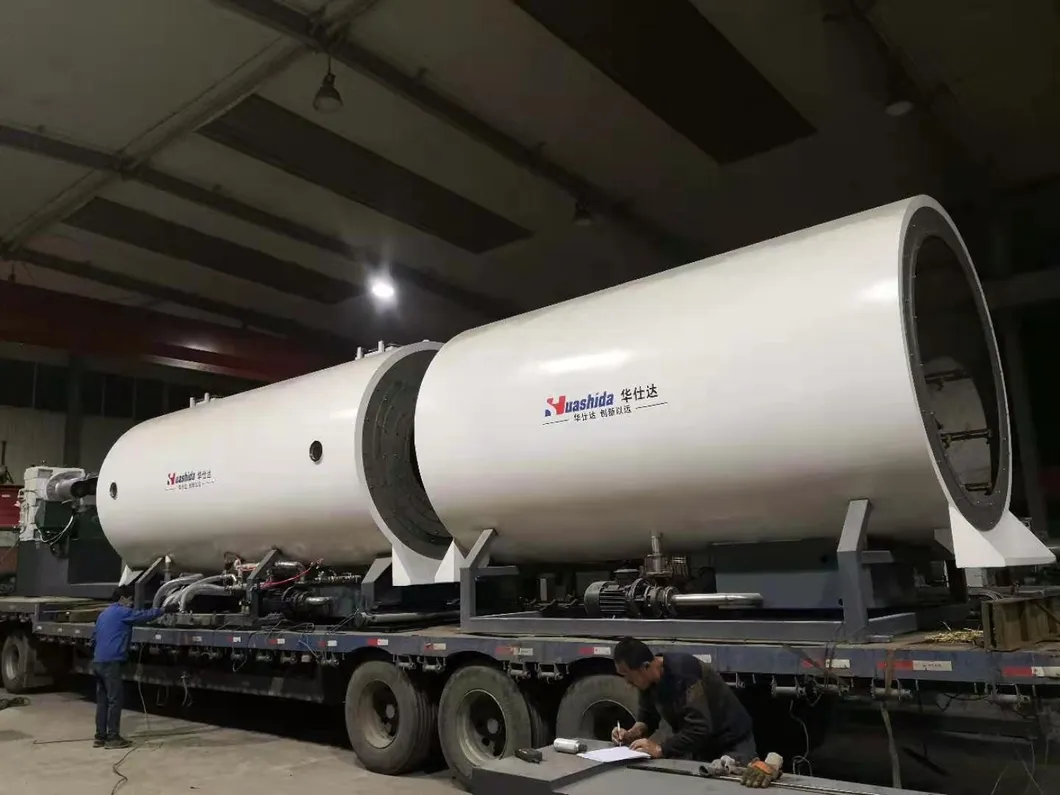

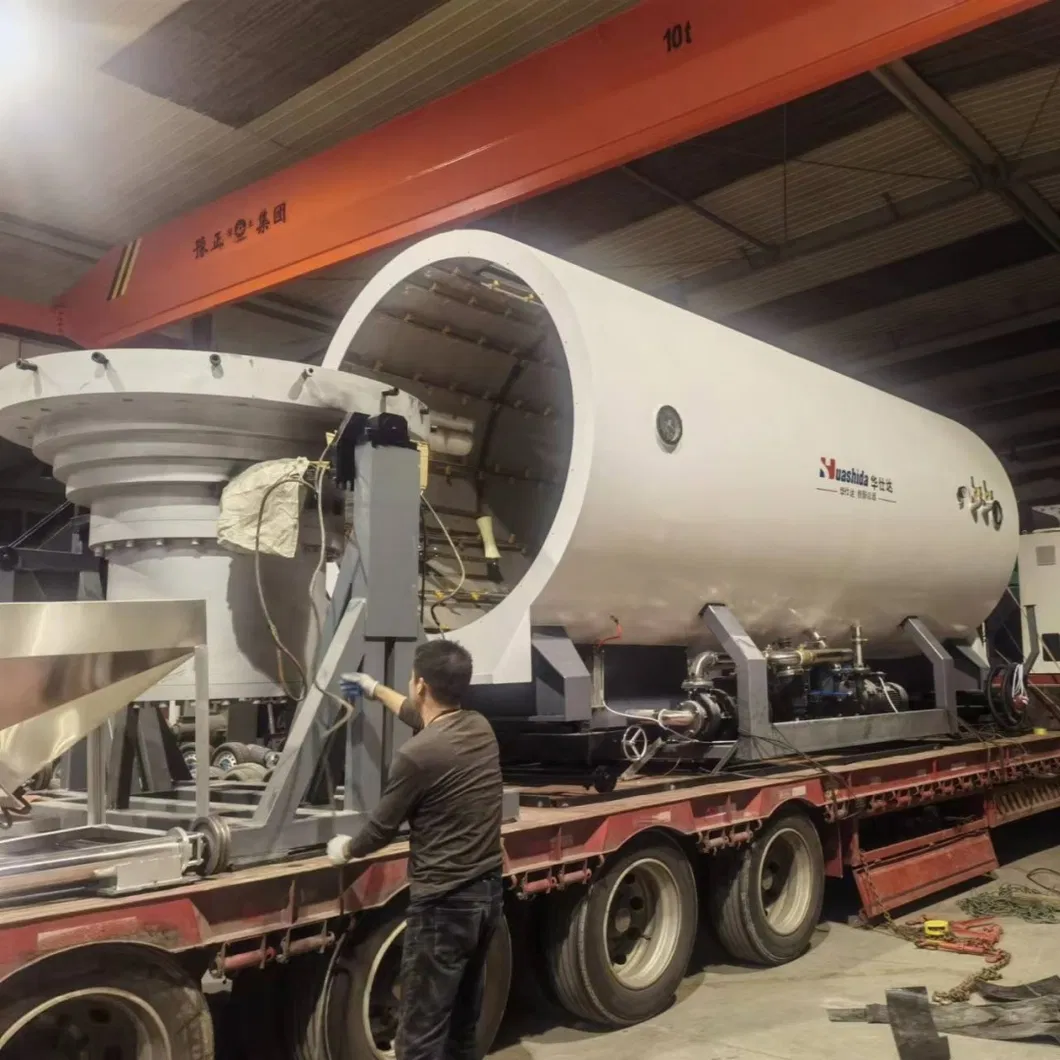

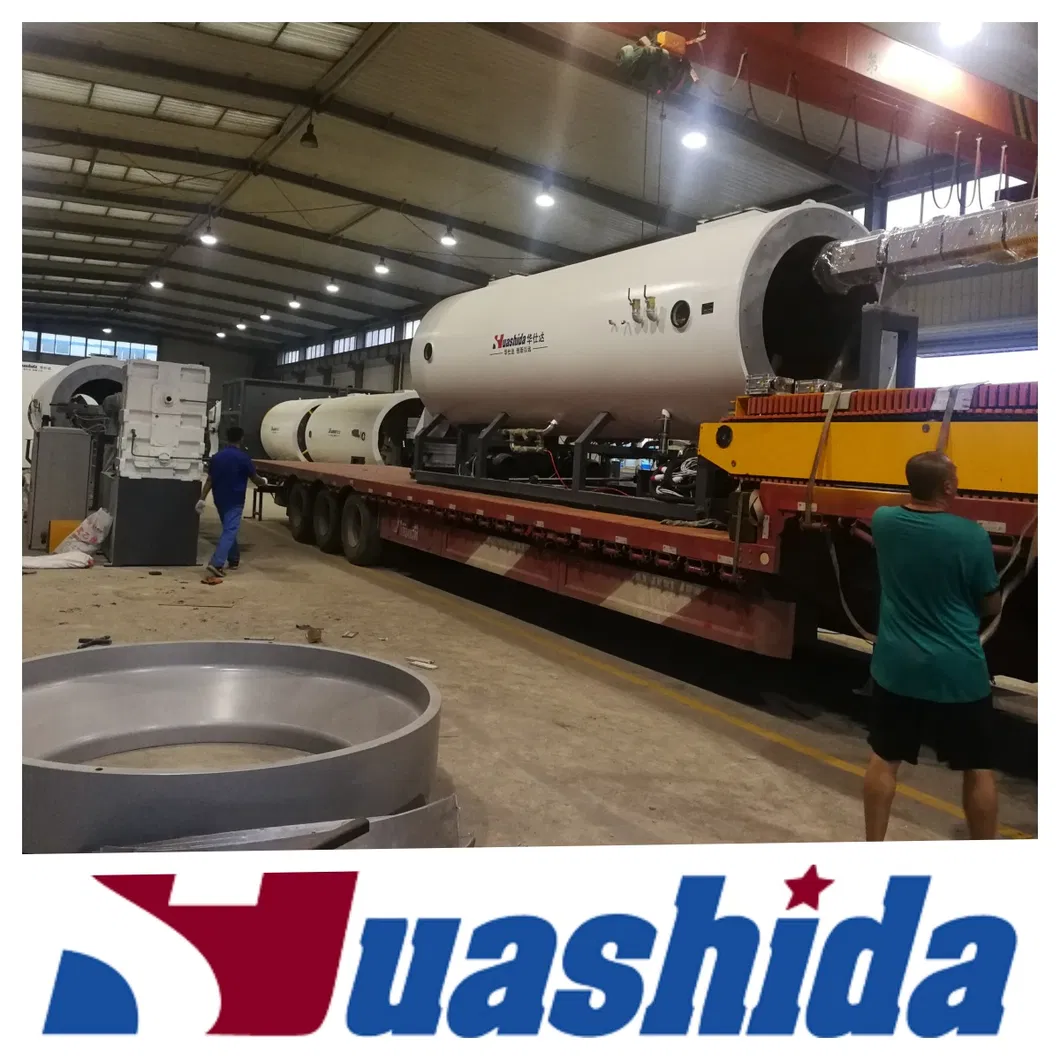

Shipment

HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 8
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 9
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 10
HDPE Outer Casing Protection Pipe Pre-Insulated Pipe Manufacturing Machinery for District Heating 11
