Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h

1
MOQ
US$450,000.00 - 600,000.00 1 Set (MOQ)
Price
Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 380V/50Hz
Color: Customized
Material: Rubber Foam
Automation: Fully Automatic
Production Capacity: 500-1000kg/h
Processing Type: Extrusion
Weight: 5000kg
Voltage: 380V
Origin: China
Dimension: 10m*2m*2m
Application: Pipe / Sheet Production
Highlight:

fully automatic rubber foam pipe extruder

,

rubber foam pipe production line 1000kg/h

,

foam pipe extruder line with warranty
Basic Infomation
Place of Origin: qingdao，China
Brand Name: HUASHIDA
Certification: ISO9001：2008
Model Number: HSD NBR-1000
Payment & Shipping Terms
Packaging Details: Standard Package
Delivery Time: 70-90 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 50 Units/month
Product Description

Air Conditioning Rubber and Plastic Insulation Pipe Extruder Production Line


Basic Info.

Model NO.
HSD Model 120
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Material
PVC/NBR/EPDM
Tube Dia.
6-50mm
Sheet Width
500-1500mm
Tube Thickness
3-50mm
Usage
Aircondition Cooper Protector
Transport Package
Standard Package
Specification
according to customer′ s demand
Trademark
HUASHIDA
Origin
Qingdao China
HS Code
84119000
Production Capacity
50 Units/Days

Packaging & Delivery

Package Size
1200.00cm * 230.00cm * 260.00cm
Package Gross Weight
1000.000kg

Product Description


Air Conditioning Rubber And Plastic Insulation Pipe Extruder Production Line
Product Description


    Our company specializes in the production of rubber extruder, air conditioning insulation pipe equipment, rubber and plastic foam insulation pipe/sheet equipment.
The rubber foam insulation pipe board production line adopts the latest international technology and fully automatic continuous production technology. It uses high-performance nitrile rubber (NBR), polyvinyl chloride (PVC) and EPDM rubber (EPDM) as the main raw materials, supplemented by a variety of high-quality additives, and is made of soft and efficient energy-saving materials for thermal insulation through a special foaming process.



Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h 0
Product advantage

1. Efficient extrusion: high output and stable quality;
2. Intelligent temperature control: fully automatic temperature control system to ensure accurate process;
3. Energy saving and low consumption: optimize energy consumption design and reduce production costs;
4. Frequency conversion control: intelligent adjustment of production parameters to improve efficiency.

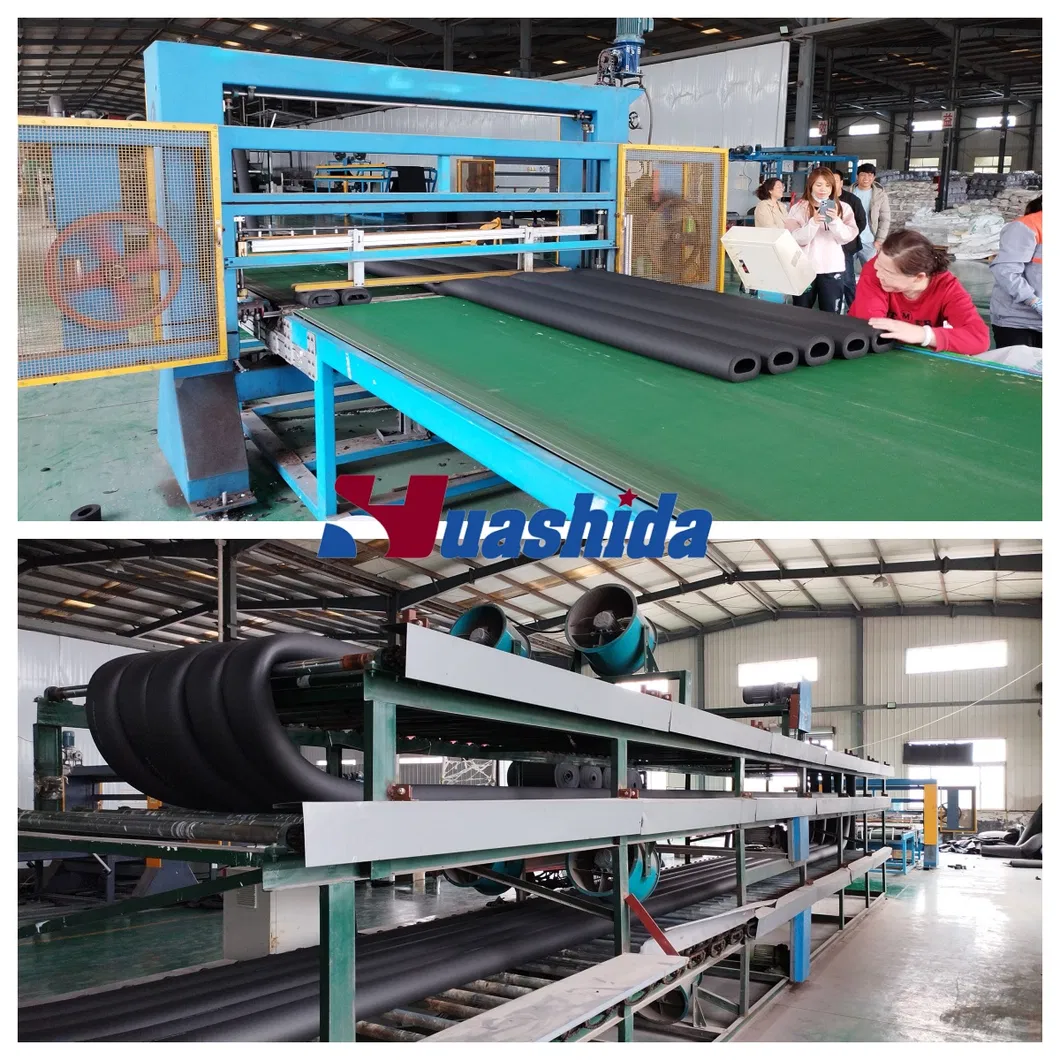

Detailed Photos


Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h 1

    Our company specializes in the production of rubber extruder, air conditioning insulation pipe equipment, rubber and plastic foam insulation pipe/sheet equipment.Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h 2Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h 3
Product Parameters
No. Equipment Name quantity
1 Rubber Cutter 1 unit
2 Internal Mixer 1 unit
3 Bucket Elevator 1 unit
4 Open Mill 1 unit
5 XSJ-90
Cold feed rubber Extruder (XSJ-90)		 1 unit
6  5 Extruder head 5 sets 5 set
7 1.5Transition roller 1.5m 1 unit
8
Far infrared foaming furnace		 1 unit
9 Electric heating foaming furnace 2
  		 6 unit
10 Conveying device 2 unit
11 Tractor&cutter 1 unit
12  Electric control system
Model number
description
HSD-65 HSD-90 HSD-120 HSD-150
Screw diameter mm 65 90 120 150
Maximum screw speed r/min 70 19-58 4-40 4.6-48
Feed roller diameter mm 65 72 120 145
Motor power kW 22 55 90 132
Heating method
Maximum heating power kW 10 10 10 10
Production capacity kg/h 85 165 335 500







    The production line is superior to similar equipment at home and abroad in terms of extrusion speed, automation and safety performance, and its technical design, structural performance, and vulcanization technology have reached the international leading level.The rubber-plastic sponge insulation material produced is a closed-cell elastic structure, which has excellent characteristics such as softness, bending resistance, heat and cold resistance, flame retardant, waterproof, low thermal conductivity, seismic resistance and sound absorption.

Simultaneously produces pipes with an inner diameter of 12-108 mm and a wall thickness of 6-30 mm.
Sheets with a width of ≤2000 mm and a thickness of 6-50 mm.
Designed line speed: 35 m/min (using 25 mm wall thickness, Ø50 mm pipe as an example).
Installed power: ≈ 380 kW (including heating). Turnkey service. • Process recipes, installation and commissioning, personnel training, and after-sales maintenance. Floor space: L 85 m × W 6 m × H 4 m (adjustable to accommodate custom plant requirements). Control: Siemens PLC + 10" touchscreen with one-touch recipe recall.
Extruder + foaming furnace + traction cutting unit + other equipment can be added or subtracted based on production capacity, environmental requirements, and product specifications.
Please contact me for a quote or layout diagram for a single machine.


Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h 4

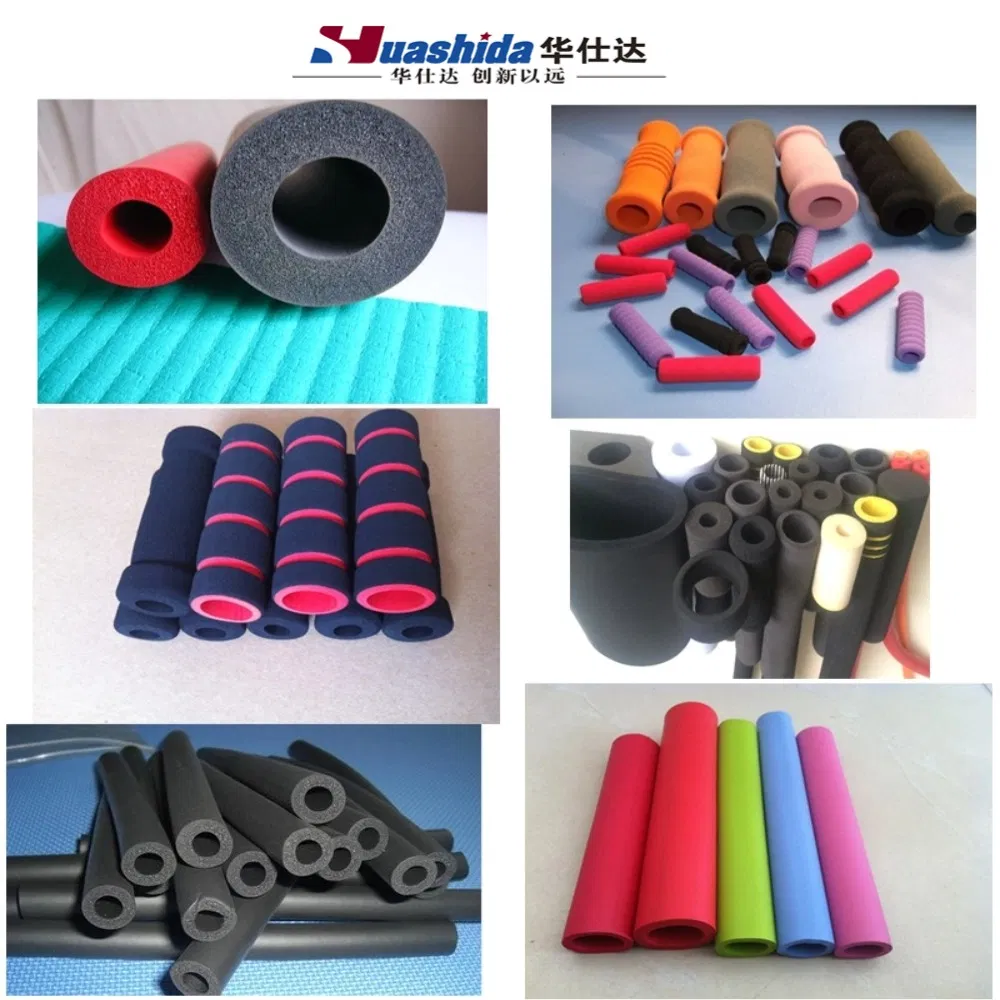

 Application area
It is widely used in thermal insulation of hot and cold medium pipes and containers in central air-conditioning, construction, chemical industry, pharmaceutical, textile, metallurgy, shipbuilding, vehicles, electrical appliances and other industries, significantly reducing cold/heat loss.With its flexibility and processing adaptability, it can also be used for indoor and outdoor plumbing insulation of fitness equipment, medical equipment and solar heating systems. It is an ideal energy-saving material.

    Keywords: High efficiency and energy saving · fully automatic production · multi-industry application · international leading technology

Why Choose Huashida?
- 22 Years of extrusion expertise
- Turnkey Solutions: From raw material advice to after-sales maintenance
- Customizable Lines: Tailored to output volume, product mix, and automation needs
Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h 5

Fully Automatic Rubber Foam Pipe Extruder Line 500-1000kg/h 6
