Name: Hollow Wall Winding Pipe Large Diameter Mine Exhaust
Brand: Qingdao Huashida Machinery Co., Ltd.
SKU: 800-3000 mm
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Screw Channel Structure: Structure Deep Screw

Automation: Automatic

Total Power: 520kw

HS Code: 8468800000

Basic Infomation

Place of Origin: Qingdao

Brand Name: Huashida

Certification: EN253, EN448, EN728, ISO1133, ISO8501-1. ISO9001

Model Number: 800-3000 mm

Payment & Shipping Terms

Packaging Details: Standard Package

Delivery Time: 5-8 weeks

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 50 Units/Month

Gallery

Hollow Wall Winding Pipe Large Diameter Mine Exhaust

Product Description

HDPE Hollow structure Wall Spiral Pipe plastic extruder Extrusion Line
Product description:
HDPE Hollow Wall Corrugated Pipe produced by this line have high stiffness, high brunt intensity, and low weight due to it's unique structure. In addition, it has many advantages such as good creep deformation resistance, outer pressure resistance, erosion resistance(such as acid, alkali and salt etc), long life of approximate 50 years. It has been widely used for sewerage and drainage in municipal, it will replace the cement pipe, cast iron pipe and other pipes. It's low cost of assembling, easy operation, easy connection and economical construction can make it wide foreground and market potetial.

Hollow Wall Winding Pipe Large Diameter Mine Exhaust

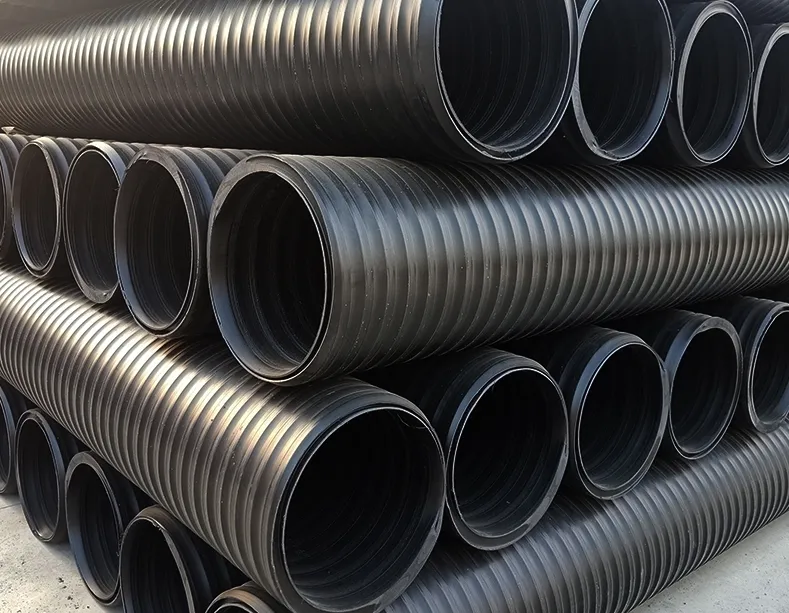

Hollow wall pipe:
Production process: The high-density polyethylene is first made into a rectangular pipe embryo by winding molding process, and then formed by winding welding.
Structural features: The middle of the pipe wall is hollow and the ring stiffness is high.
Diameter range: Not limited by the pipe diameter, large-diameter pipes can be produced, up to DN3000. Huashida is capable of producing large - diameter (4000mm) hollow - wall winding pipe production lines. It owns the integral production line with independent intellectual property rights.
Connection method: Hot melt tape connection is mainly used, and the connection cost is slightly higher.
Cost and price: Under the same diameter and ring stiffness, more raw materials are consumed, and the production cost and price are higher.
Application scenarios
• Suitable for large-scale municipal drainage projects, mountain drainage projects and other occasions that need to withstand greater external pressure or complex environments.
• It can also be used as a manhole pipe for inspection wells.
We also produce: anti-static gas extraction and exhaust pipes for mining, which are connected by special pipe fittings (electric hot melt tape, heat shrink sleeve), which are easy to connect and economical to construct.
Features of HDPE Hollow Wall Corrugated Pipe:
It's designed with advanced technology includes 1st single screw extruder for square shaped pipe, square shaped pipe extrusion die, vacuum calibration water tank, spray cooling water tank. 2ND single screww extruder for melting glue material, spiral forming unit, cutting and stack unit.
Hollow Wall Winding Pipe Large Diameter Mine Exhaust

Pipe application area:
This kind of pipe is fit for municipal drainage of water less than 45ºC, building outdoor drainage, buried farmland drainage, industrial sewage, road drainage, sewage disposal work, sport field square drainage, electrical and telecommunication project etc.

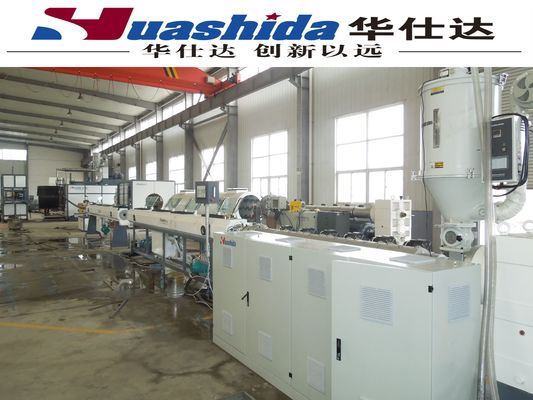

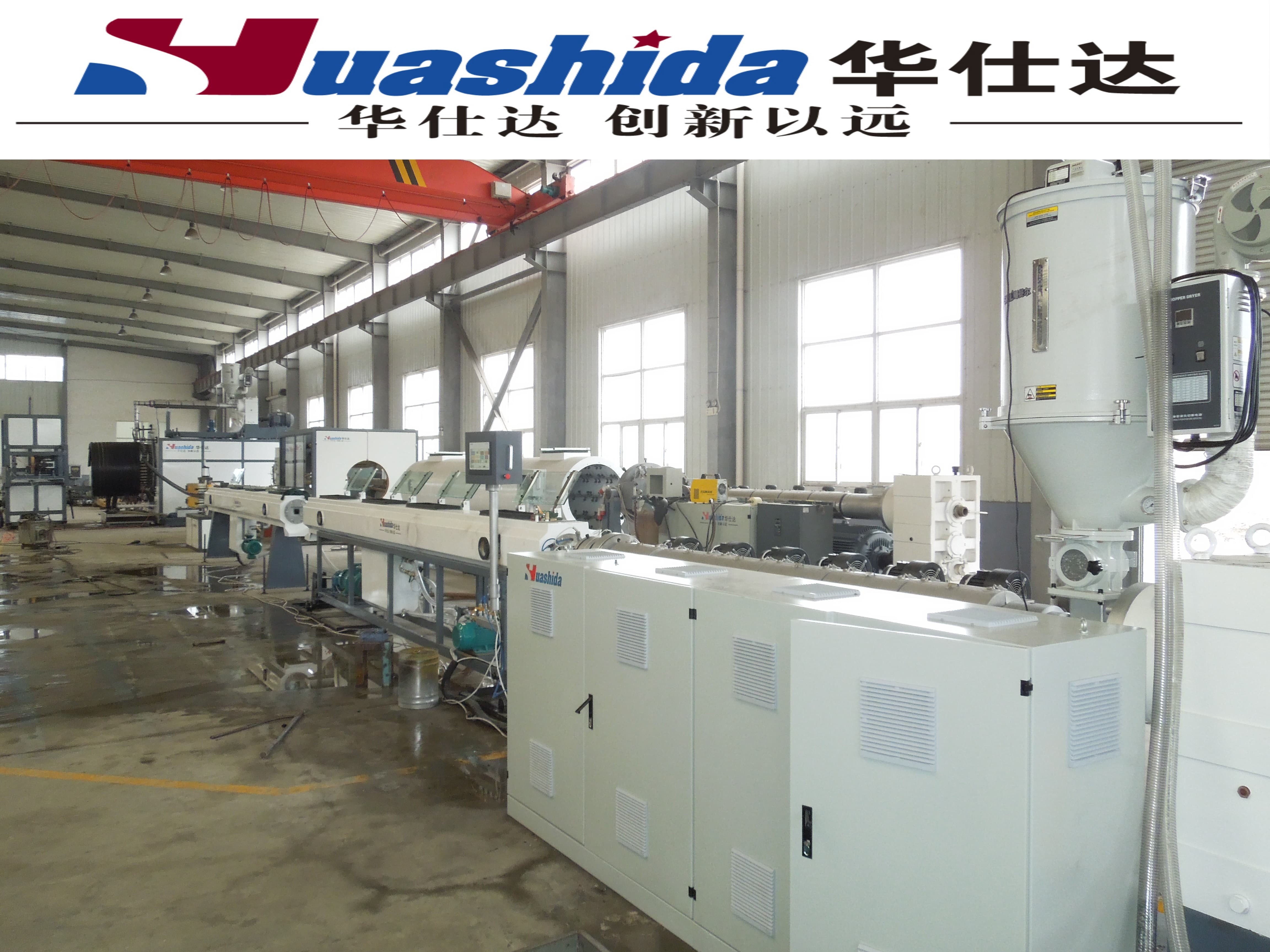

Composition of Equipments
1.1set Single screw extruder with vacuum loader& hopper dryer
2.1set Square tube die head & mould
3.1set Vacuum calibration table
4.1set Water spraying tank

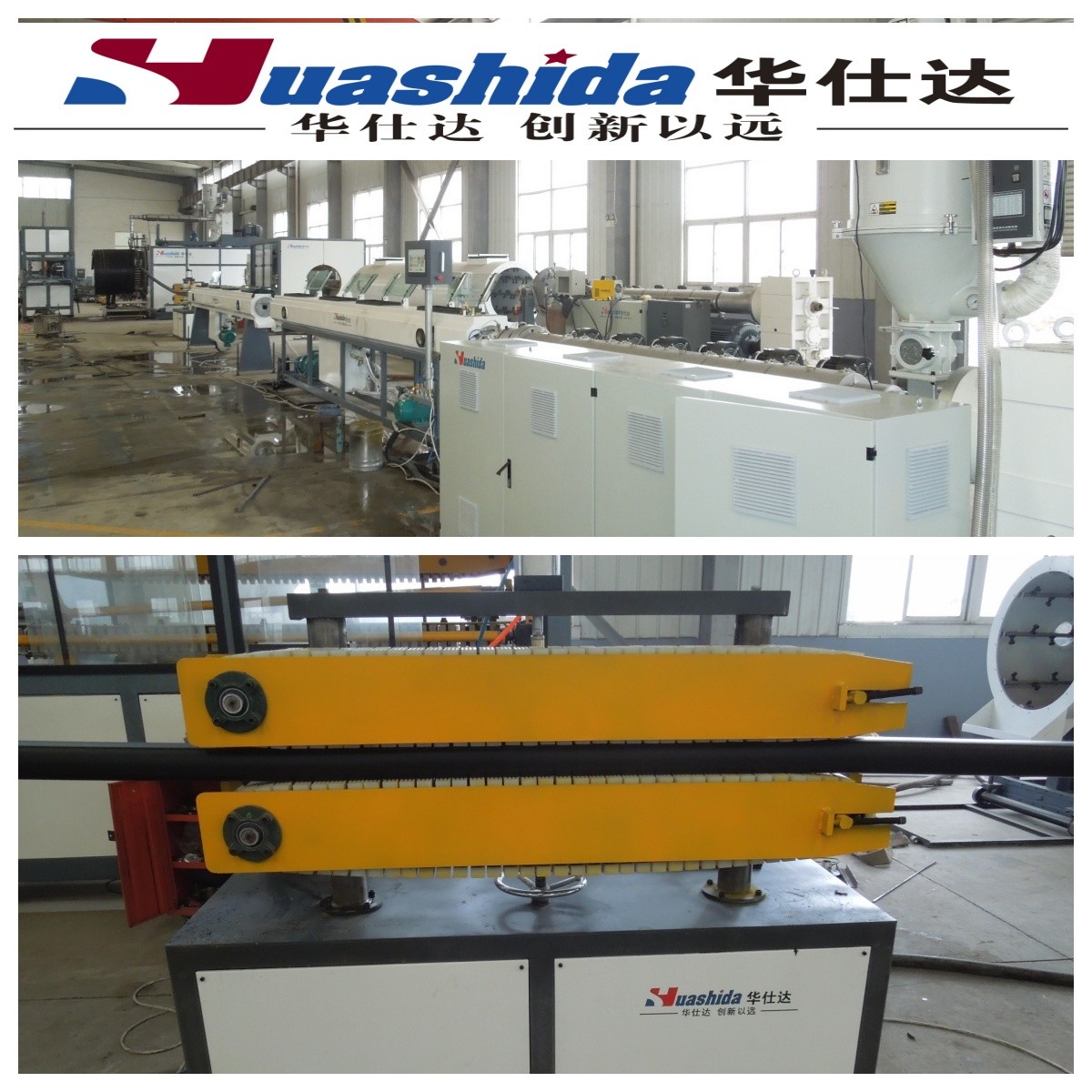

5.1set Hauling machine
6.1set Single screw extruder with vacuum loader & hopper dryer
7.1set Melt adhesive extrusion die head
8.1set Rewinding forming machine
9.1set Cutting machine
10.1set Stacker
11.set Siemens PLC

Extruder
Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.

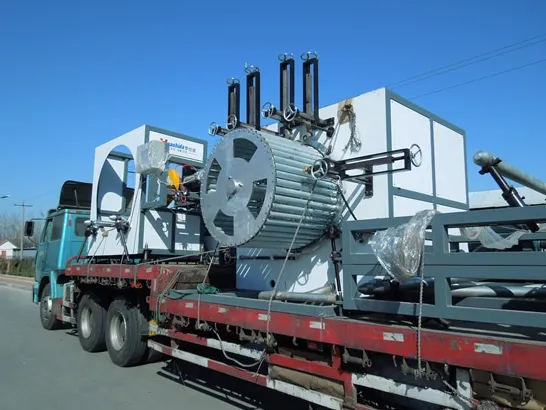

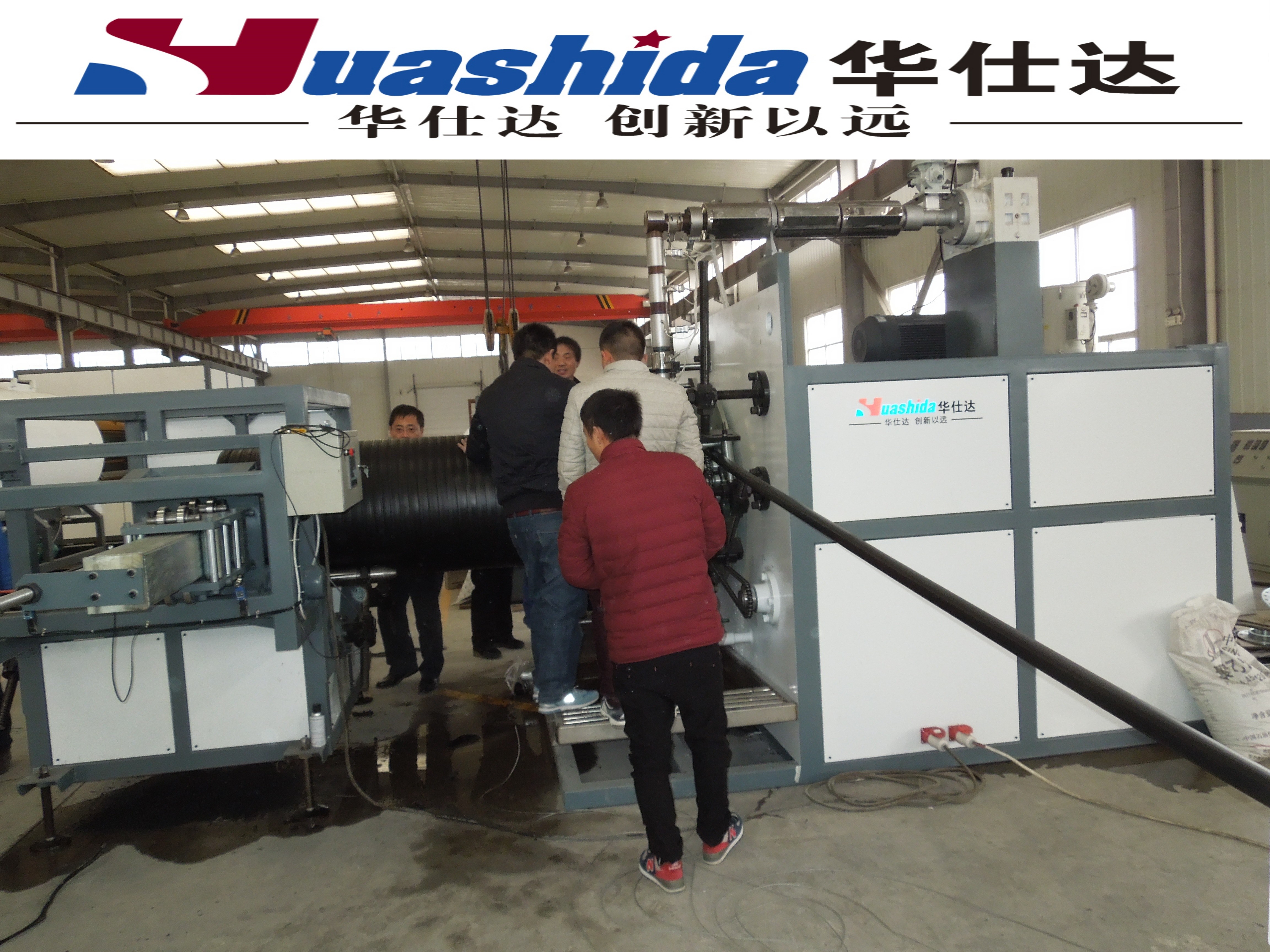

Rewinding forming machine
It adopts composite die head and spiral rotating forming method, is designed with compact structure.
TECHNICAL PARAMETERS

Model	Diameter(mm)	Style	Total Power	Extrusion Speed(m)	Capacity(kg/h)	Dimension (m)
SKRG1200	300-1200	SJ-90X30 SJ-65X30	230KW	1-12	320-420	26x16X5.0
SKRG2000	800-2000	SJ-100X33 SJ-65X33	400Kw	0.5-5	600 240	32x16x6.0
SKRG3000	2200-3000	SJ-120X30 SJ-90X30	520KW	0.3-3	650 300	42X18X
