20-Year HDPE PE Extrusion Jacket  Casing Pipe Machinery For Preinsulated Pipe

Production line of HDPE jacket pipe is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe according to international standard.
The HDPE jacket pipe is produced by vacuum calibrating method with smooth internal and external wall, long service life, good anti-corrosion insulation and mechanical performance.
---Pipe Application: outer protective casing of PUF thermal insulated pipe, which is widely used in central heating, cooling oil&gas transmission and other industrial area.

Features of Production line of HDPE jacket pipe
-small dimension
-high degree of automation, can be operated by one person, saving labor costs.
-a long service life.
-high-efficiency extruder gives larger output, stable performance.
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need trim edge.
Production range: 110-2000mm (by different models)

Production line composition:
-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder

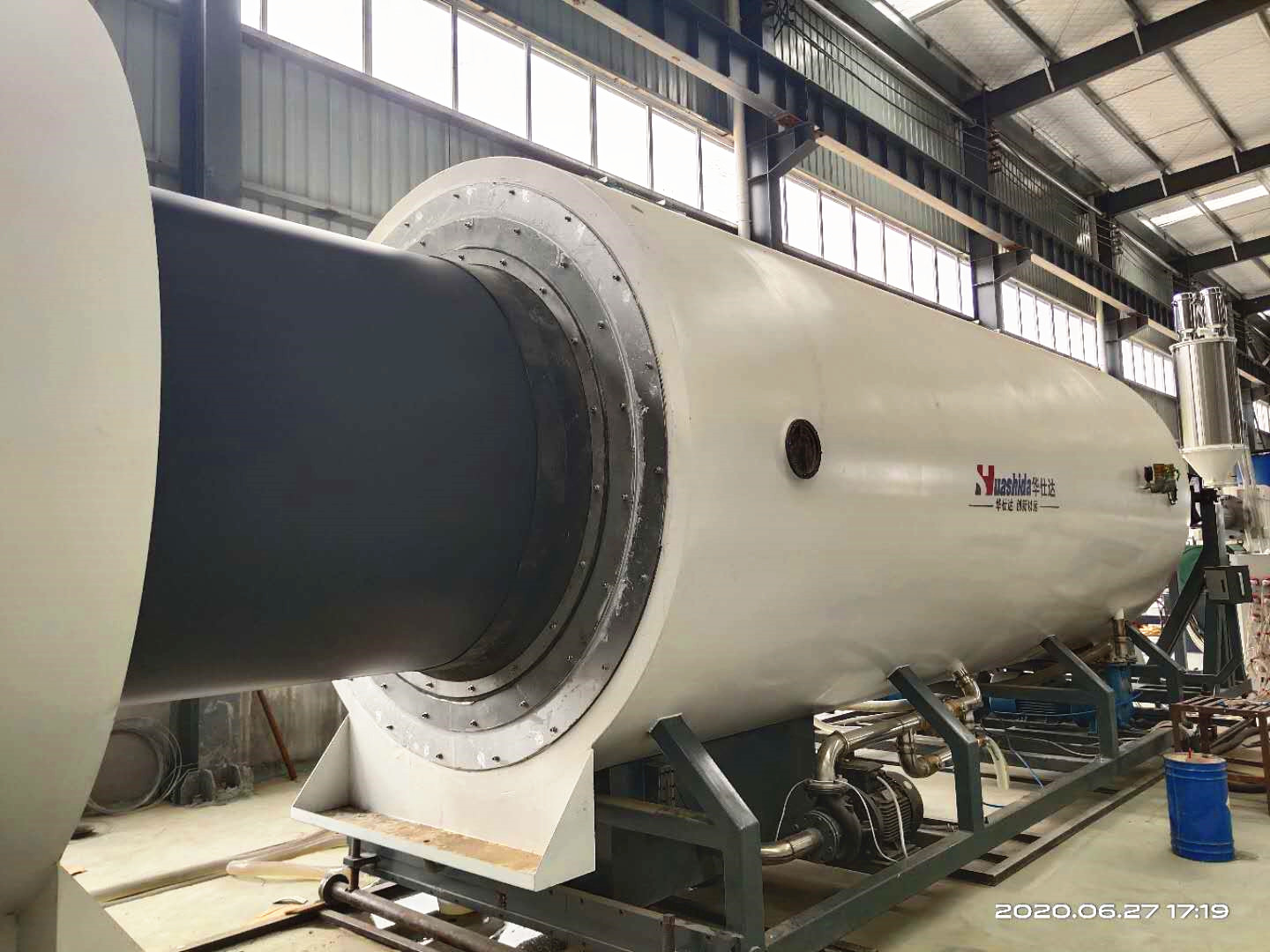

-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine

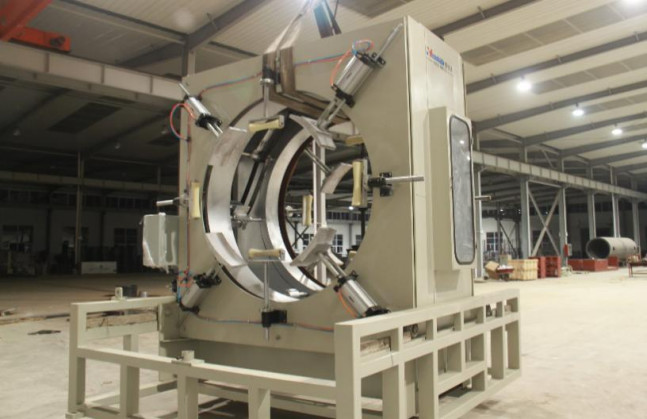

-1set Cutting machine
-1set Discharging Frame

Workshop

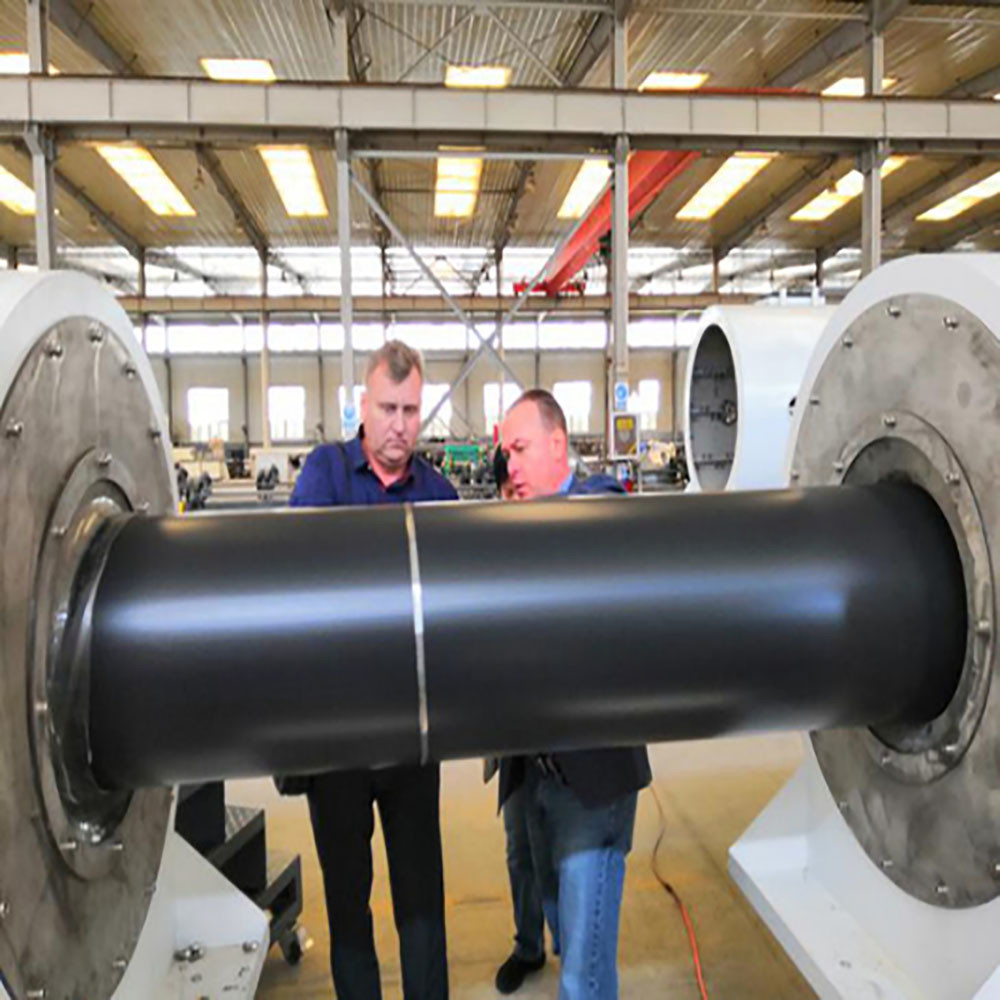

Customers' inspection


Delivery

Welcome customers to visit our factory!
