655-1380mm Pre-Insulated Pipe Extruder Production Line Siemens Computer Control

110-550mm PE Insulation Pipe Extrusion Line,Automatic tube cutting

gas/oil /water pipeline Puf Pre-Insulated Pipe PE shell casing plastic Machinery

Technical Prameters:

HDPE Jacket Process Flow:

1. Vacuum Feeding of PE Granules: The raw PE granules are automatically fed into the system via vacuum suction.
2. Hot Air Drying: The granules are dried using hot air to remove moisture, ensuring optimal extrusion quality.
3. Extrusion Plasticizing: The dried granules are plasticized through the extruder, heated and mixed to form a molten plastic mass.
4. Mold Shaping: The molten plastic is shaped into the desired pipe profile by passing through the extrusion die.
5. Vacuum Sizing: The pipe is then subjected to vacuum sizing, adjusting its dimensions to precise specifications.
6. Water Cooling: The pipe is cooled rapidly by immersion in a water tank to solidify its shape and structure.
7. Pulling Out: The solidified pipe is pulled out of the cooling tank at a controlled speed.
8. Cutting: The pipe is cut to the desired length using a precision cutting machine.
9. Carrier Laying-off: The cut pipes are then neatly laid off onto a carrier for further handling or packaging

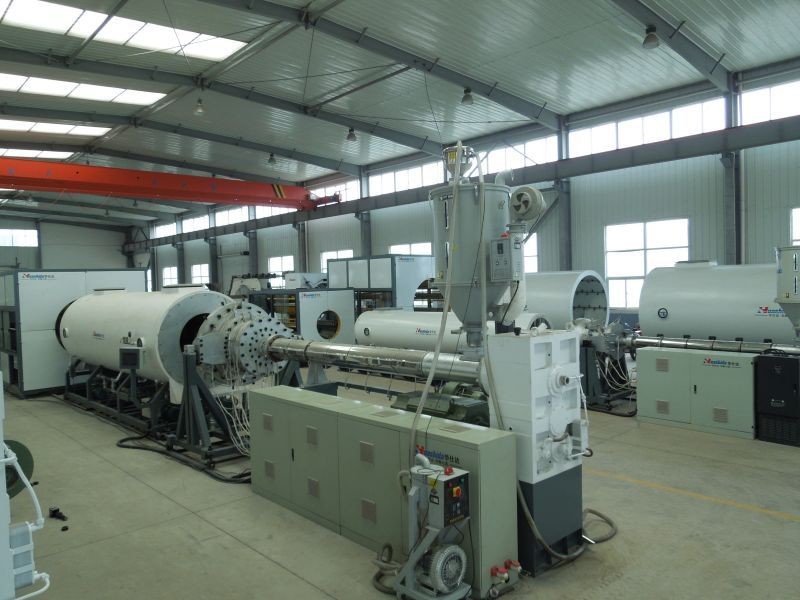

Composition of Equipments:

1. Hopper Dryer
2. Single Screw Extruder

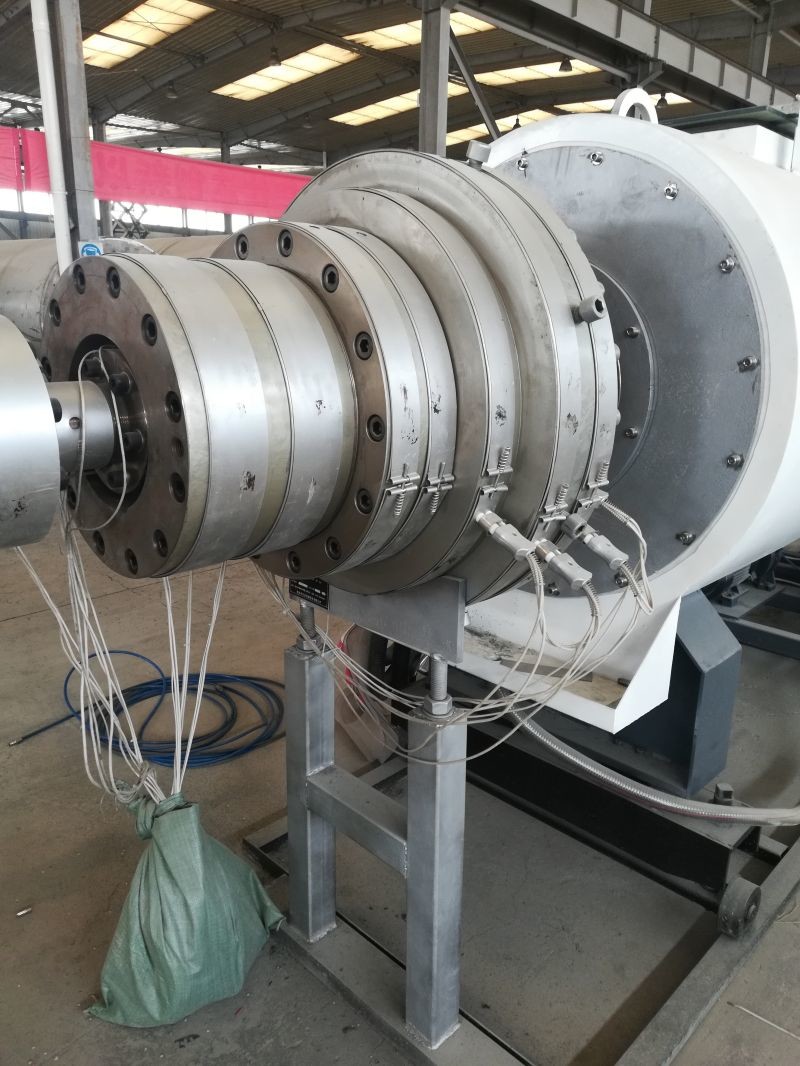

3. Extrusion Mould Die
4. Head Bracket
5. Vacuum Calibration Device
6. Water Cooling Tank
7. Haul-off Unit

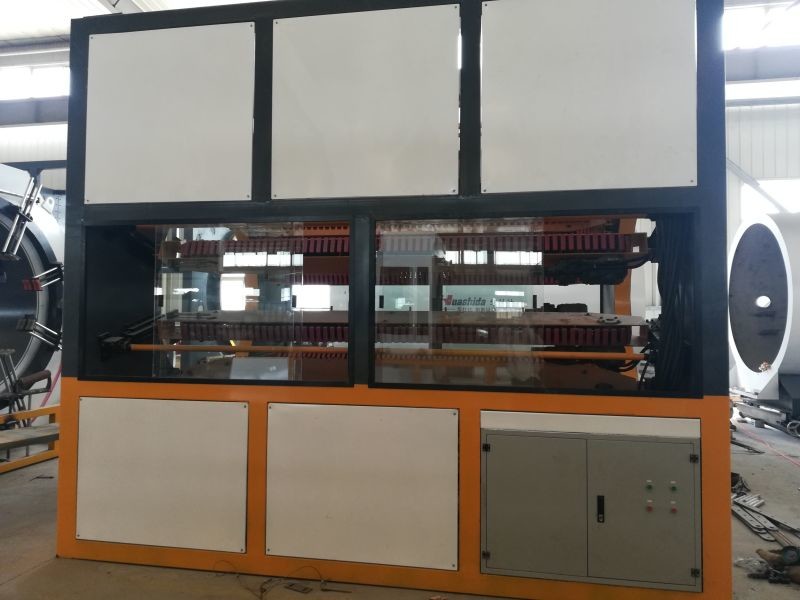

8. Planetary Cutting Machine
9. Pipe Bracket
10. Loader
11. PLC (Programmable Logic Controller)

PU Foaming Pre-insulated Pipe Production Process Flow:

The production of "Pipe in Pipe" (PU Foaming Pre-insulated Pipe) encompasses three crucial steps:

1. Surface Pretreatment of Steel Pipe: The outer surface of the steel pipe is thoroughly cleaned and prepared for the insulation process, ensuring optimal adhesion of the insulation layers.
2. Production of HDPE Outer Protective Pipe: Following the steps outlined above for HDPE Jacket Production, an outer protective HDPE pipe is extruded and shaped around the pretreated steel pipe.
3. Production of Insulation Layer: The insulation layer, typically made of polyurethane (PU) foam, is then injected or sprayed between the steel pipe and the outer HDPE protective pipe. This layer provides thermal insulation, enhancing the pipe's energy efficiency and durability.

The production steps of the insulation layer for a pre-insulated pipe, specifically focusing on the polyurethane (PU) foam insulation, are outlined below in detail:

1. Formation of the Casing Structure:
   • The steel pipe is first inserted into the high-density polyethylene (HDPE) outer protection pipe, creating a casing structure.
   • Supports are evenly arranged in the annular space between the steel pipe and the HDPE outer pipe to maintain a uniform distance and prevent the two pipes from touching directly.
   • The two ends of the casing are sealed with flanges to ensure that the polyurethane foaming material will be contained within the space during the injection process.
2. Preparation of the Steel Pipe Surface:
   • Prior to the injection of the insulation material, the surface of the steel pipe undergoes pre-treatment such as shot blasting or blast cleaning. This step removes any impurities, rust, or scale, providing a clean and suitable surface for optimal adhesion of the polyurethane insulation.
   • Additionally, corona treatment of the polyethylene pipe shell's surface may also be performed to enhance its adhesion properties.
3. Injection of Polyurethane Foaming Material:
   • The casing structure is hoisted onto a foaming platform specifically designed for this purpose.
   • A high-pressure foaming machine is used to inject the polyurethane foaming material into the casing. The material expands and fills the entire annular space between the steel pipe and the HDPE outer pipe.
4. Curing and Formation of the Insulation Layer:
   • Once the polyurethane material is injected, it undergoes a curing process. During this time, the material foams and solidifies, forming a dense and durable insulation layer.
   • The curing time and conditions are carefully controlled to ensure that the insulation layer achieves optimal thermal and mechanical properties.
5. Removal of Sealing Structures and Final Inspection:
   • After the insulation layer has fully cured, the sealing structures (flanges) at both ends of the casing are removed.
   • The completed pre-insulated pipe is then inspected for any defects or imperfections in the insulation layer or the overall structure.
   • If the pipe meets the required specifications, it is ready for further processing or shipment.

Rigidity due to the presence of strong ties between the steel pipe layer polyurethane insulation and jacket pipe and provides pre-shot blast or blast cleaning the surface of the steel pipe, optimum performance polyurethane insulation, corona surface of polyethylene pipe shell.

gas/oil /water pipeline Puf Pre-Insulated Pipe PE shell casing plastic Machinery Advantages:
Significantly increases the reliability of the pipeline in the PUF insulation system operational availability of remote condition monitoring PUF insulation, which allows to detect and repair leaking coolant, preventing accidents typical for thermal networks of other designs.
Highly cost-effective use of pipelines in the foam insulation define the following parameters:
Simplifying the construction, maintenance and repair;
Increased service life of 30-40 years (traditional types of pipelines - 5-10 years);
Reduction of heat losses to 8% (traditional types of pipelines - 30-40%);
Reducing capital costs by 15-20% (not required construction of concrete channels and chambers for valves);
Reduced operating costs by 9 times;
Reduction in repair costs 3 times.
